Case And Housing

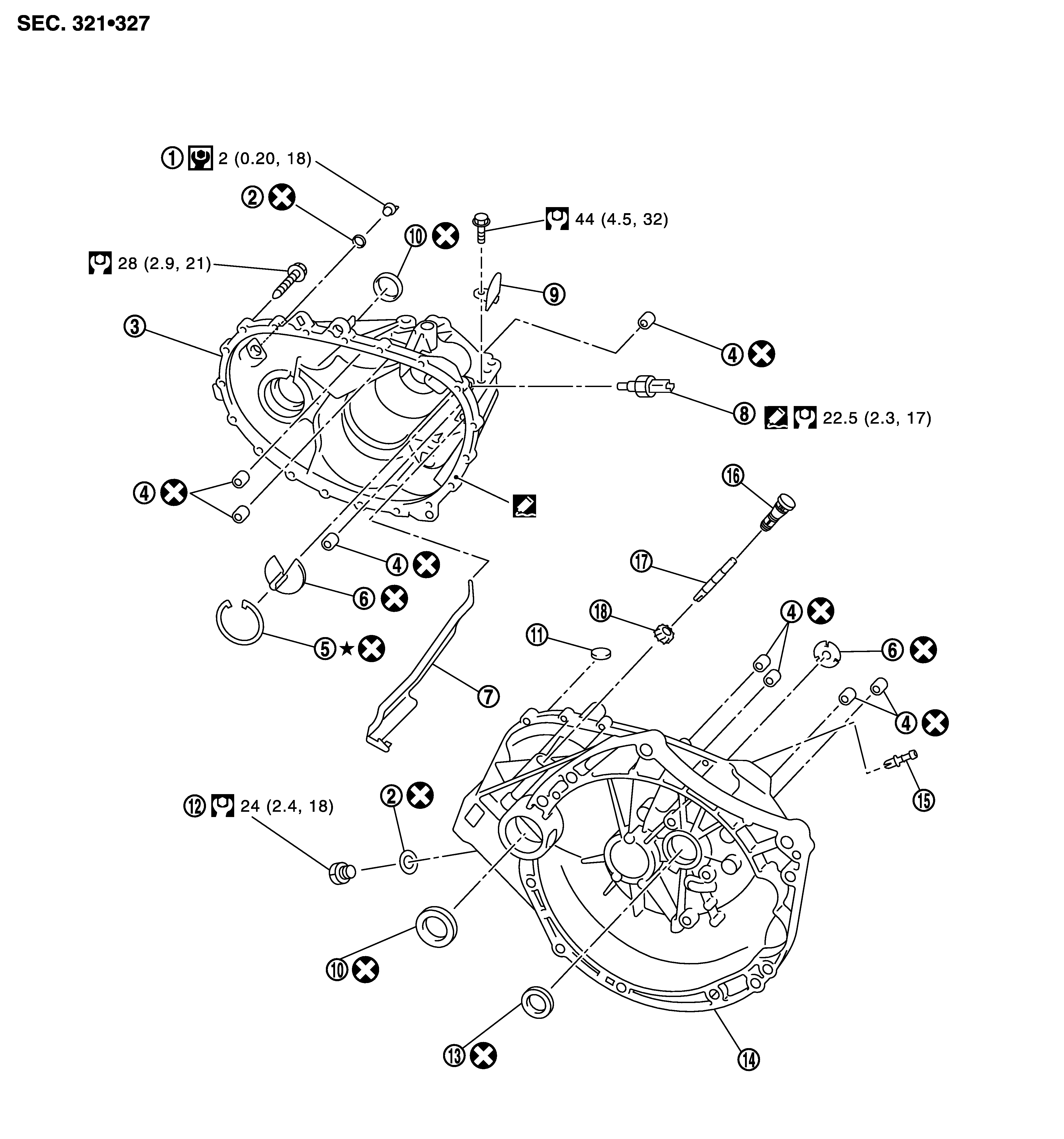

Fig 1: Exploded View Of Case And Housing With Torque Specifications

GNSJPDIC0437GB-437

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Filler plug	2.	Gasket	3.	Transaxle case
4.	Bushing	5.	Snap ring	6.	Oil channel
7.	Oil gutter	8.	Position switch	9.	Bracket
10.	Differential side oil seal	11.	Magnet	12.	Drain plug
13.	Input shaft oil seal	14.	Clutch housing	15.	2 way connector
16.	Plug	17.	Pinion shaft	18.	Pinion gear
