Final Drive: Disassembly

Remove differential side bearing inner race (clutch housing side) (1) with the following procedure.

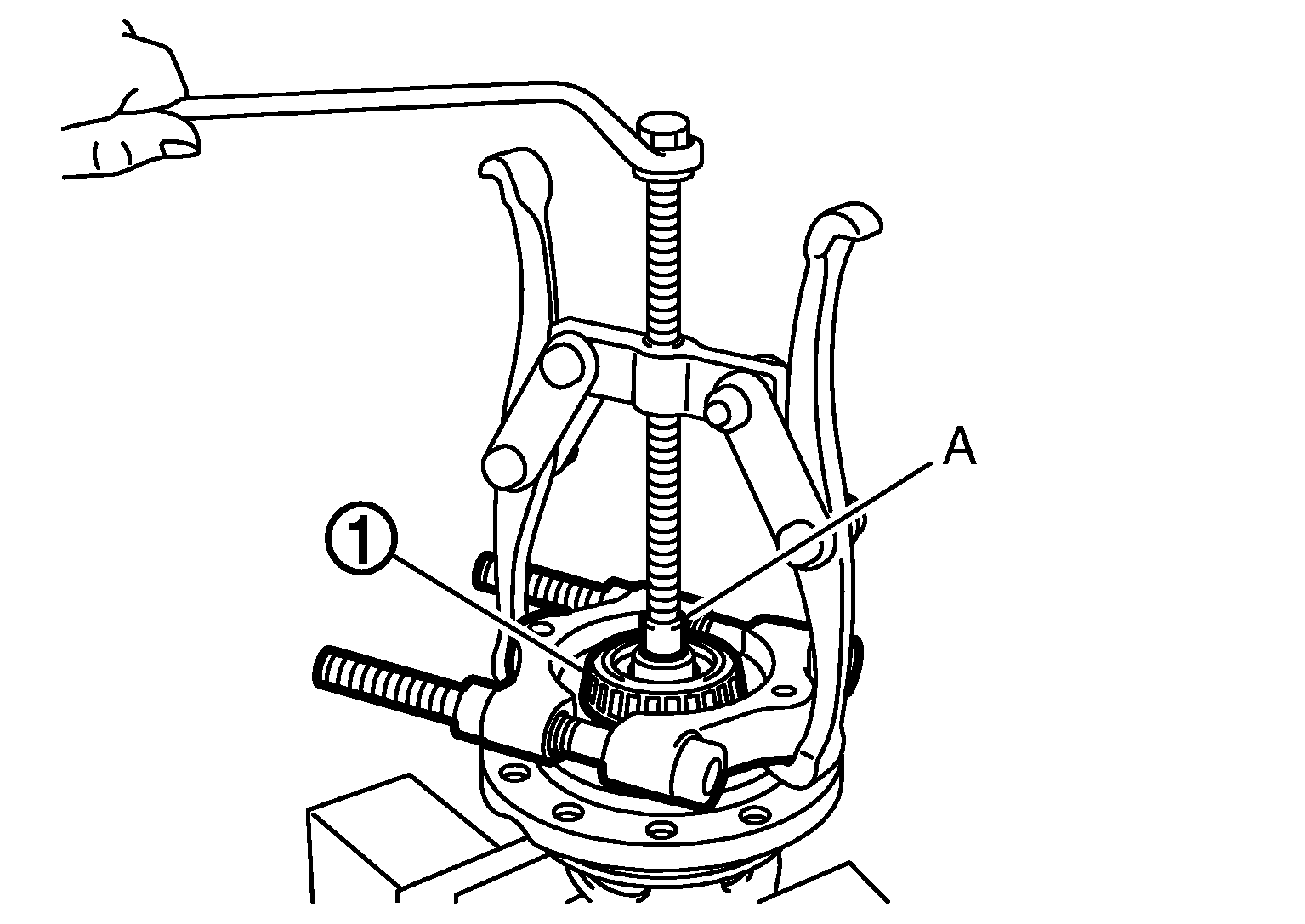

Fig 1: Removing Differential Side Bearing Inner Race (Clutch Housing Side)
Courtesy of NISSAN NORTH AMERICA, INC.
1. Set a suitable tool to differential side bearing inner race (clutch housing side).
2. Remove differential side bearing inner race (clutch housing side) using Tool (A).

  Tool number : ST33061000 (J-8107-2)
Remove final gear mounting bolts and remove final gear (1).

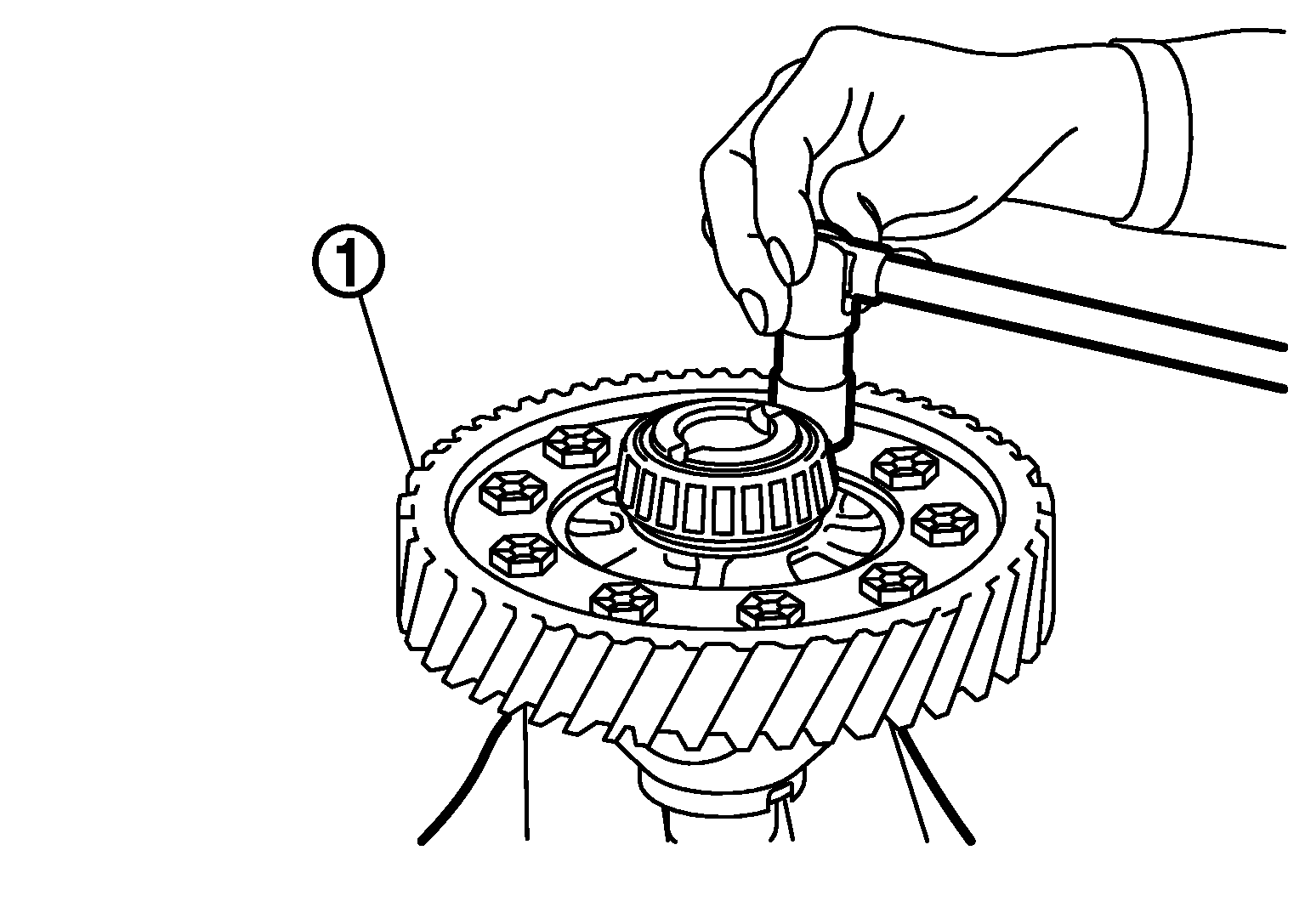

Fig 2: Removing Final Gear Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Remove differential side bearing inner race (transaxle case side) (1) with the following procedure.

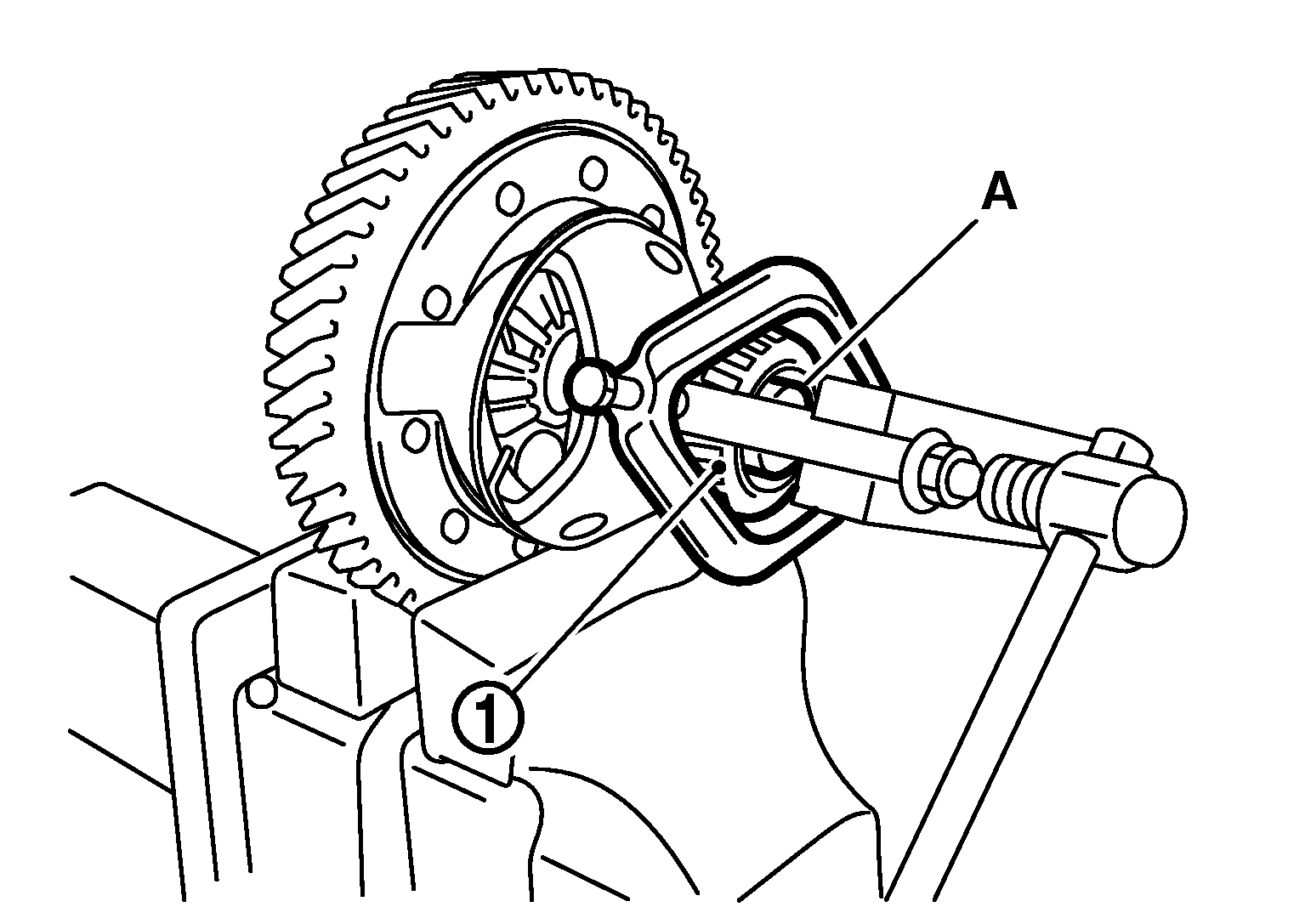

Fig 3: Removing Differential Side Bearing Inner Race (Transaxle Case Side)
Courtesy of NISSAN NORTH AMERICA, INC.
1. Set a suitable tool to differential side bearing inner race (transaxle case side).
2. Remove differential side bearing inner race (transaxle case side) using a suitable tool (A).
