Final Drive: Assembly

  1. Install final gear, and then tighten final gear mounting bolts to the specified torque.
    CAUTION:

    Replace final gear and differential case as a set.

  2. Install differential side bearing inner race (clutch housing side) using a suitable tool (A).
    Fig 1: Installing Differential Side Bearing Inner Race (Clutch Housing Side) Using Drift
    G05915000Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Replace differential side bearing inner race (clutch housing side) and differential side bearing outer race (clutch housing side) as a set.

  3. Install differential side bearing inner race (transaxle case side) using a suitable tool (A).

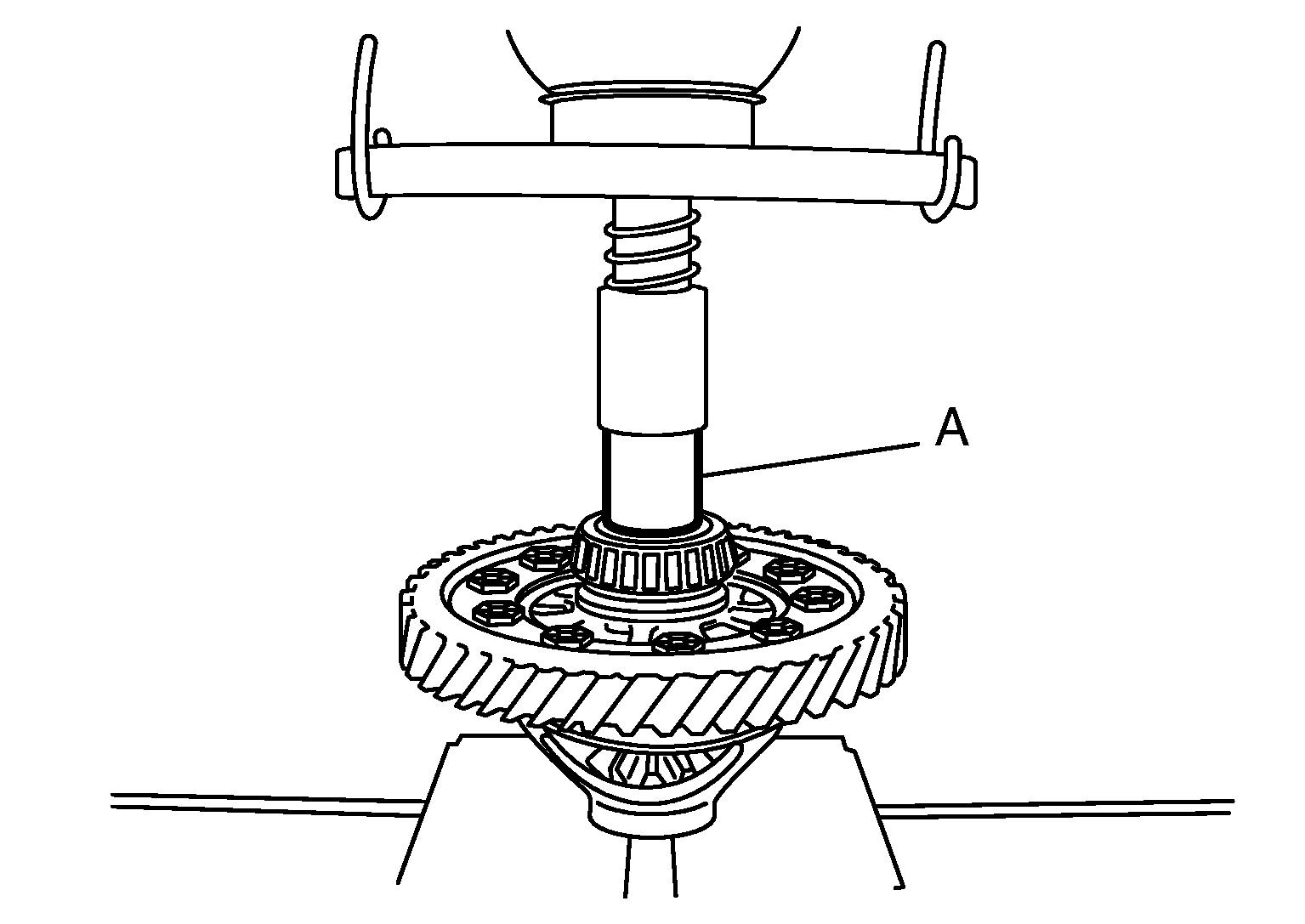

    Fig 2: Installing Differential Side Bearing Inner Race (Transaxle Case Side) Using Drift
    G05915001Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:

    Replace differential side bearing inner race (transaxle case side) and differential side bearing outer race (transaxle case side) as a set.
