Exploded View With Torque Specifications

(CVT)

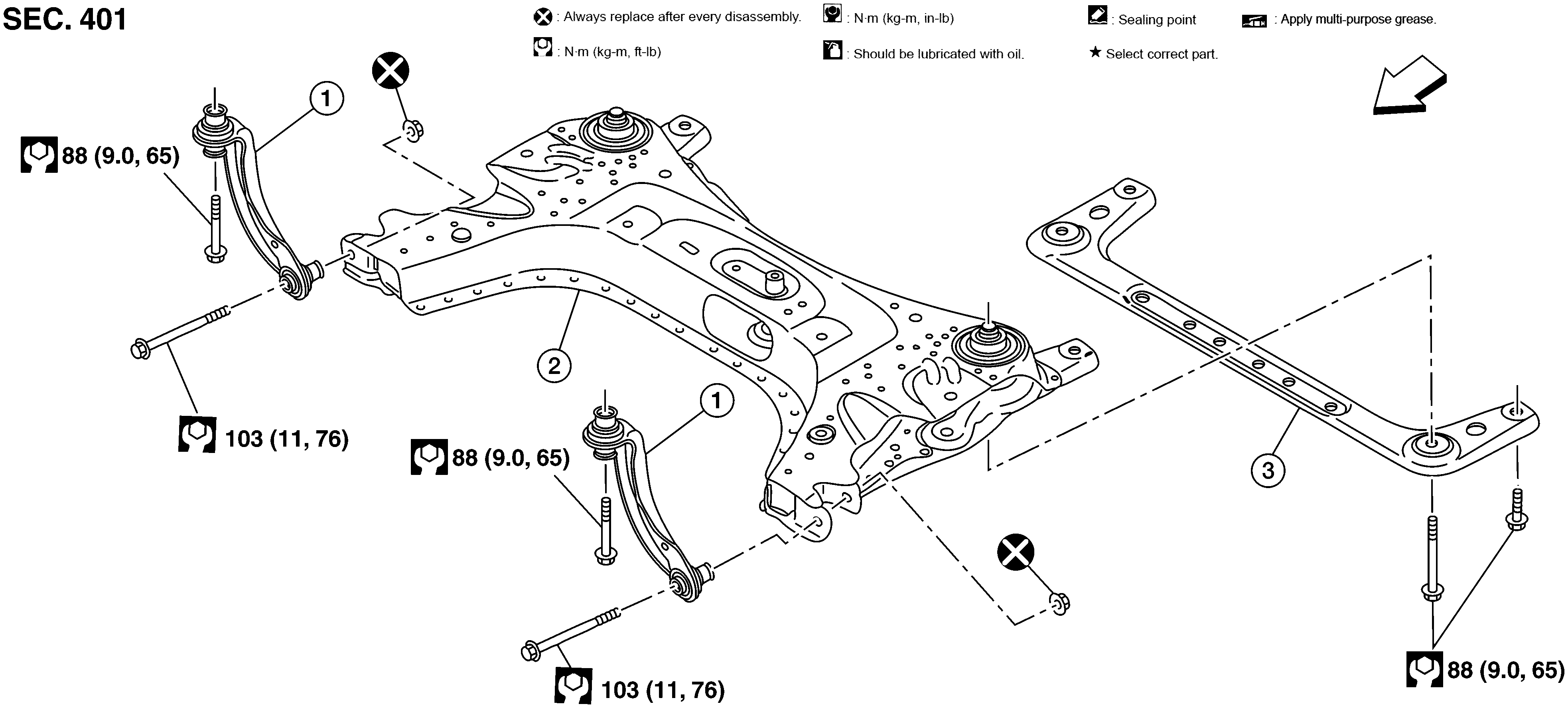

Fig 1: Exploded View Of Front Suspension Member With Torque Specifications(1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper link	2.	Front suspension member	3.	Member stay
	Front

(M/T)

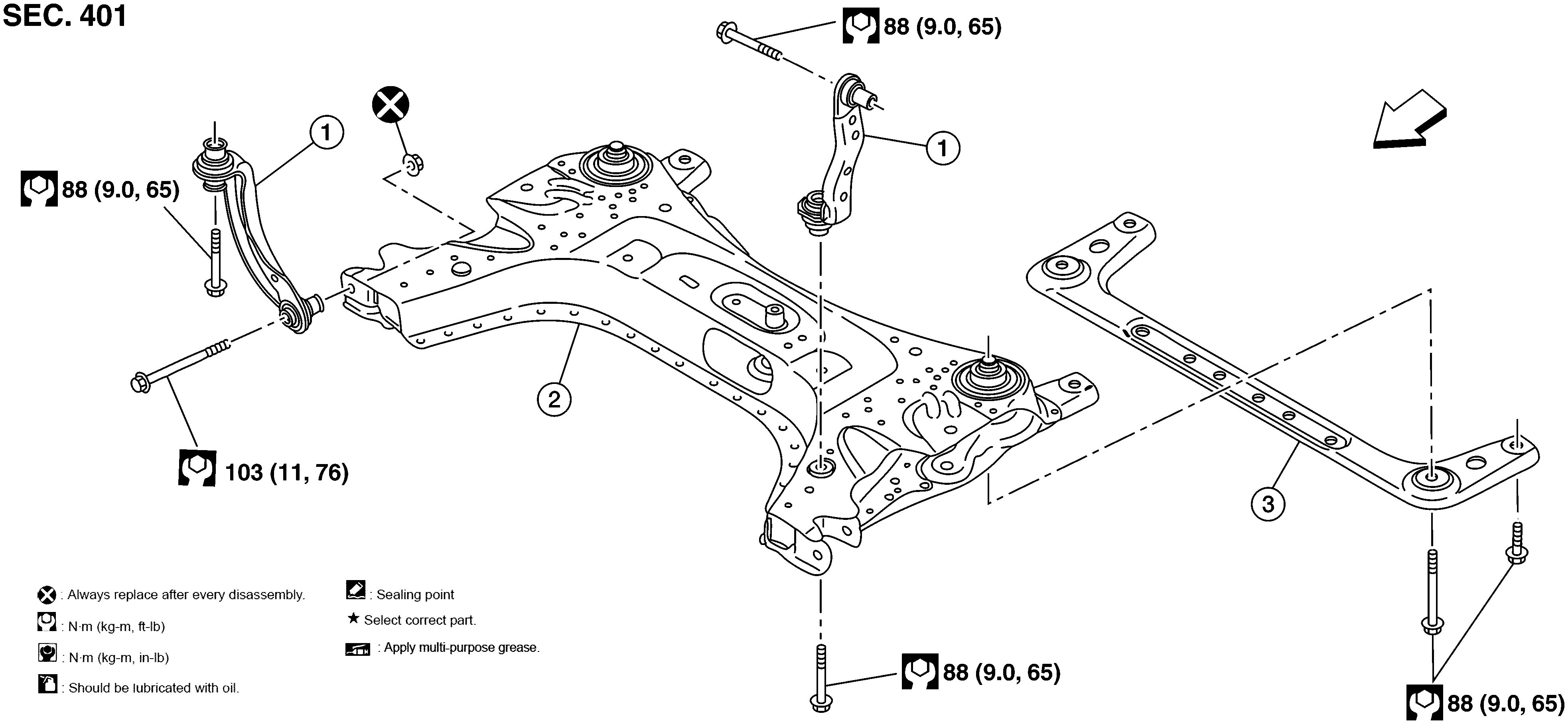

Fig 2: Exploded View Of Front Suspension Member With Torque Specifications(2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Upper link	2.	Front suspension member	3.	Member stay
	Front
