Exploded View With Torque Specifications

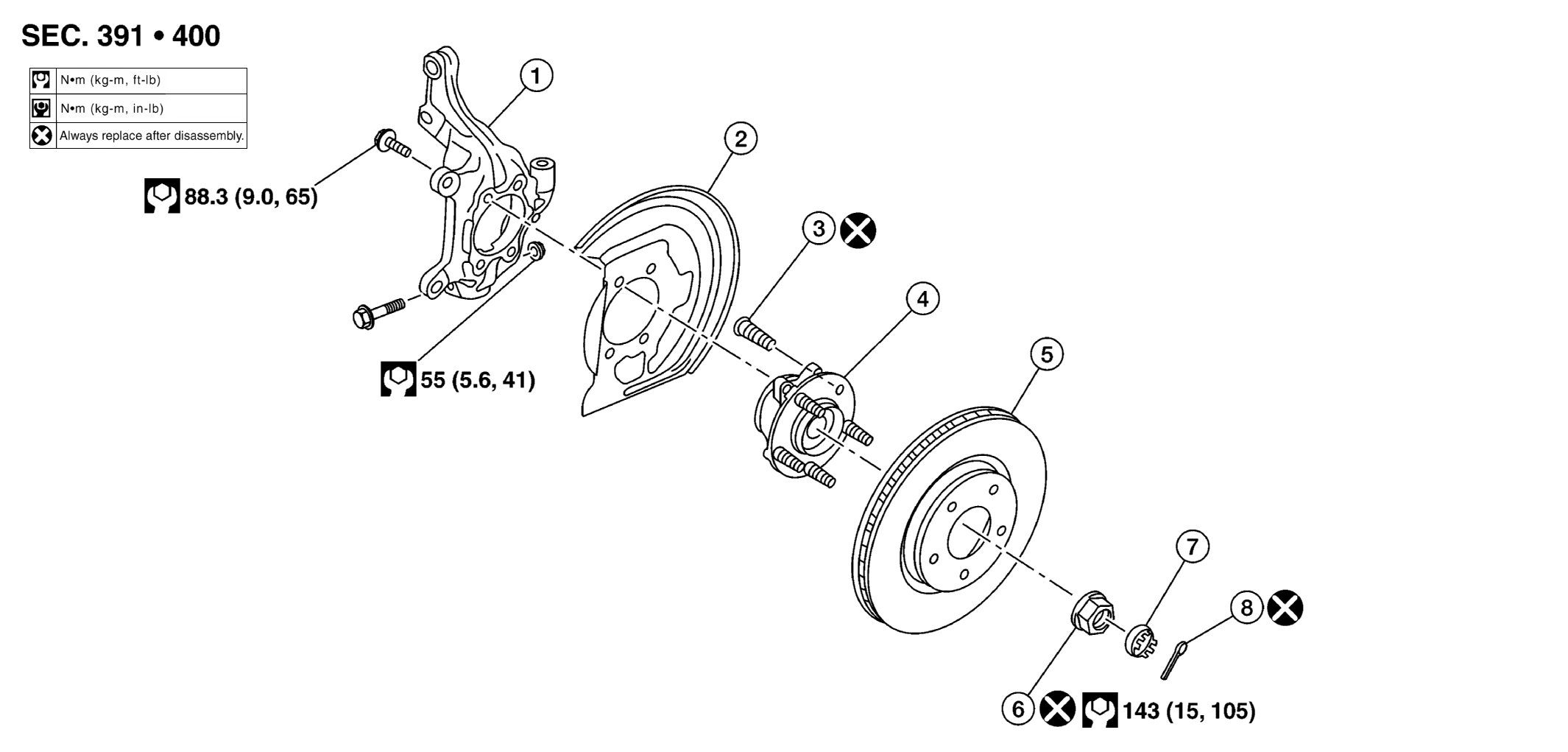

Fig 1: Exploded View Of Steering Knuckle With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Splash guard	3.	Wheel stud
4.	Wheel hub and bearing	5.	Disc brake rotor	6.	Wheel hub lock nut
7.	Nut retainer	8.	Cotter pin
