Exploded View With Torque Specifications

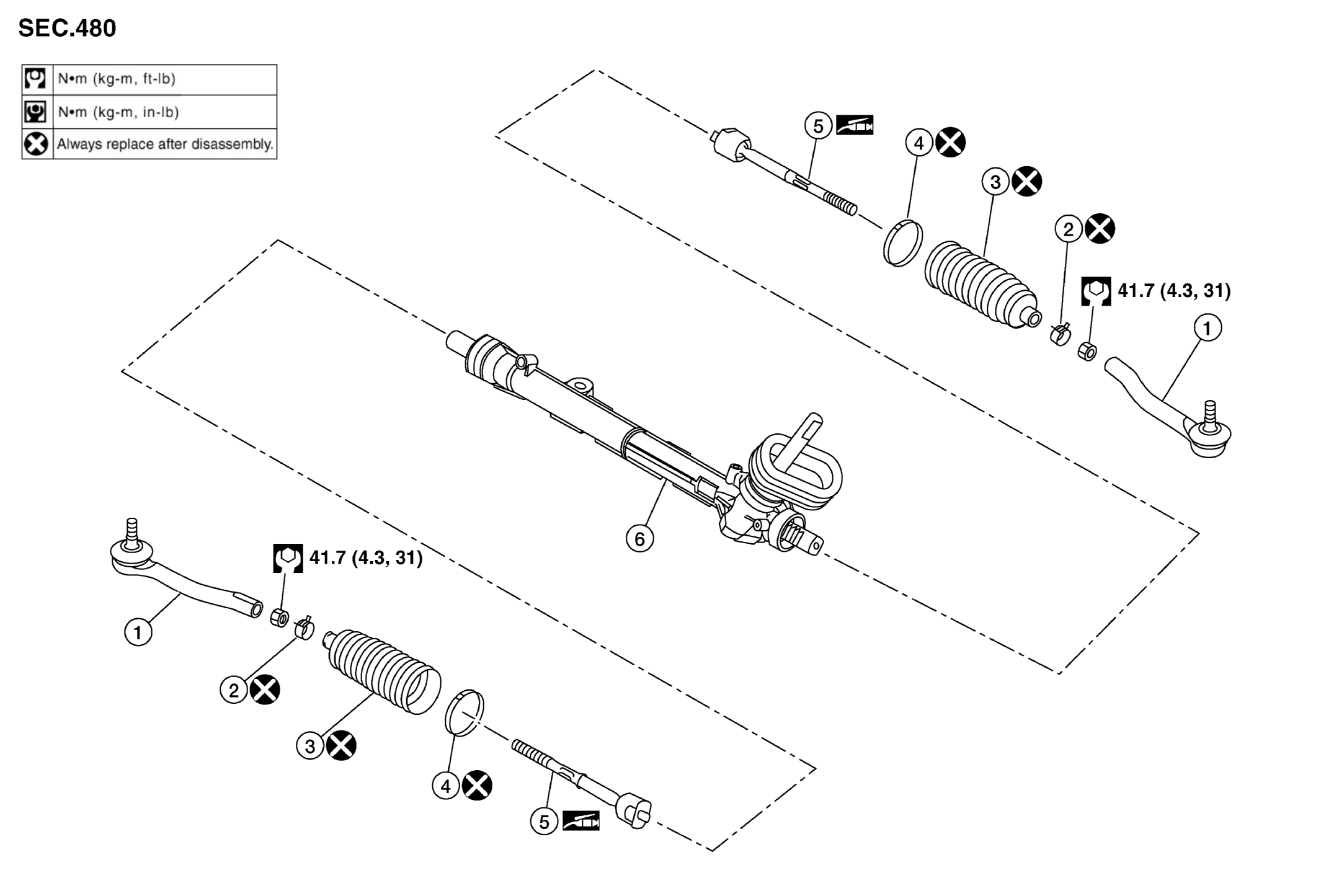

Fig 1: Exploded View Of Steering Gear And Linkage With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Outer socket	2.	Boot clamp (small diameter)	3.	Boot
4.	Boot clamp (large diameter)	5.	Inner socket	6.	Gear housing assembly
