Engine Lubrication System Schematic

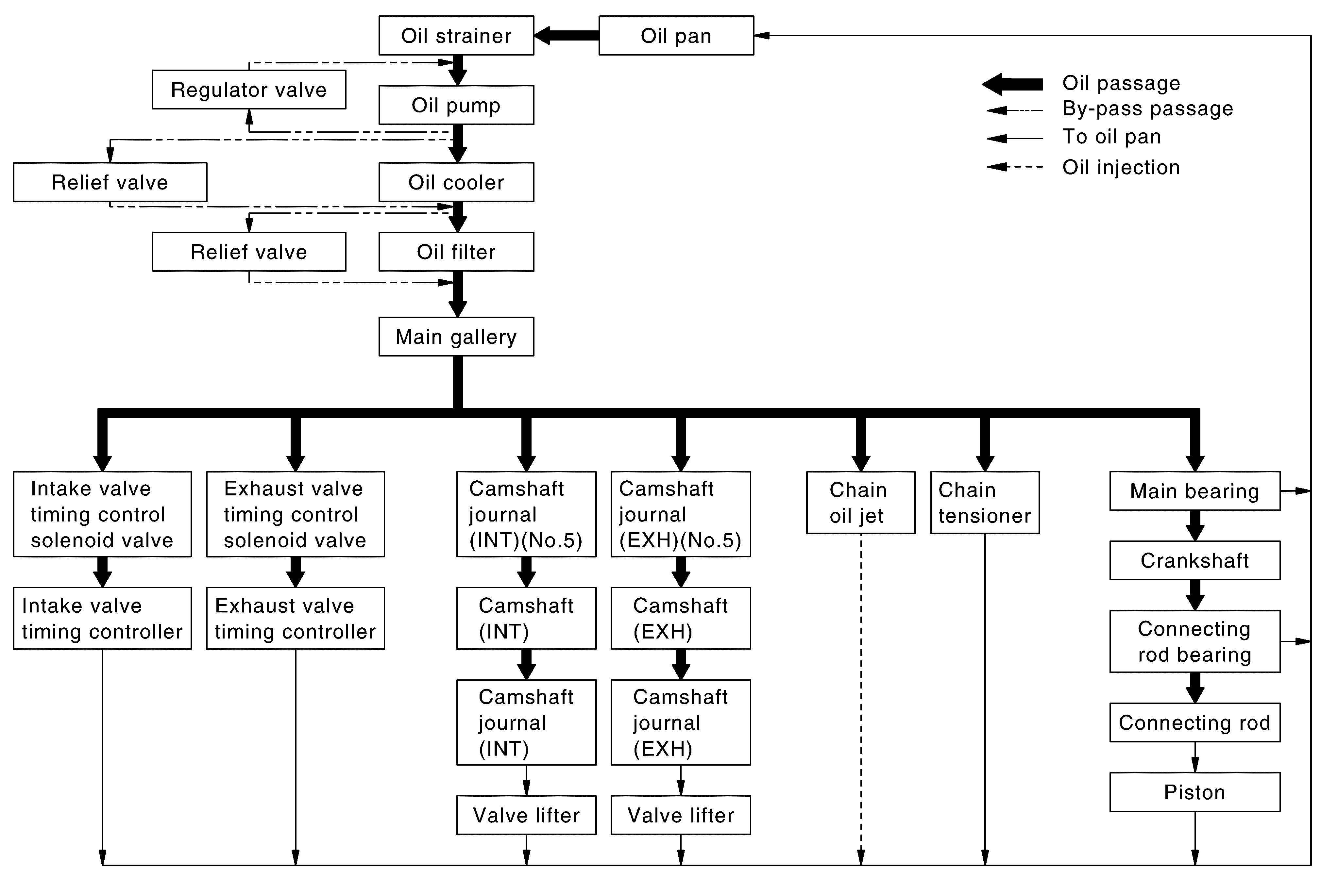

Fig 1: Engine Lubrication System Schematic

G08989083

Courtesy of NISSAN NORTH AMERICA, INC.
