Steering Angle Sensor

Detects the following information and transmits steering angle signal to ABS actuator and electric unit (control unit) via CAN communication:

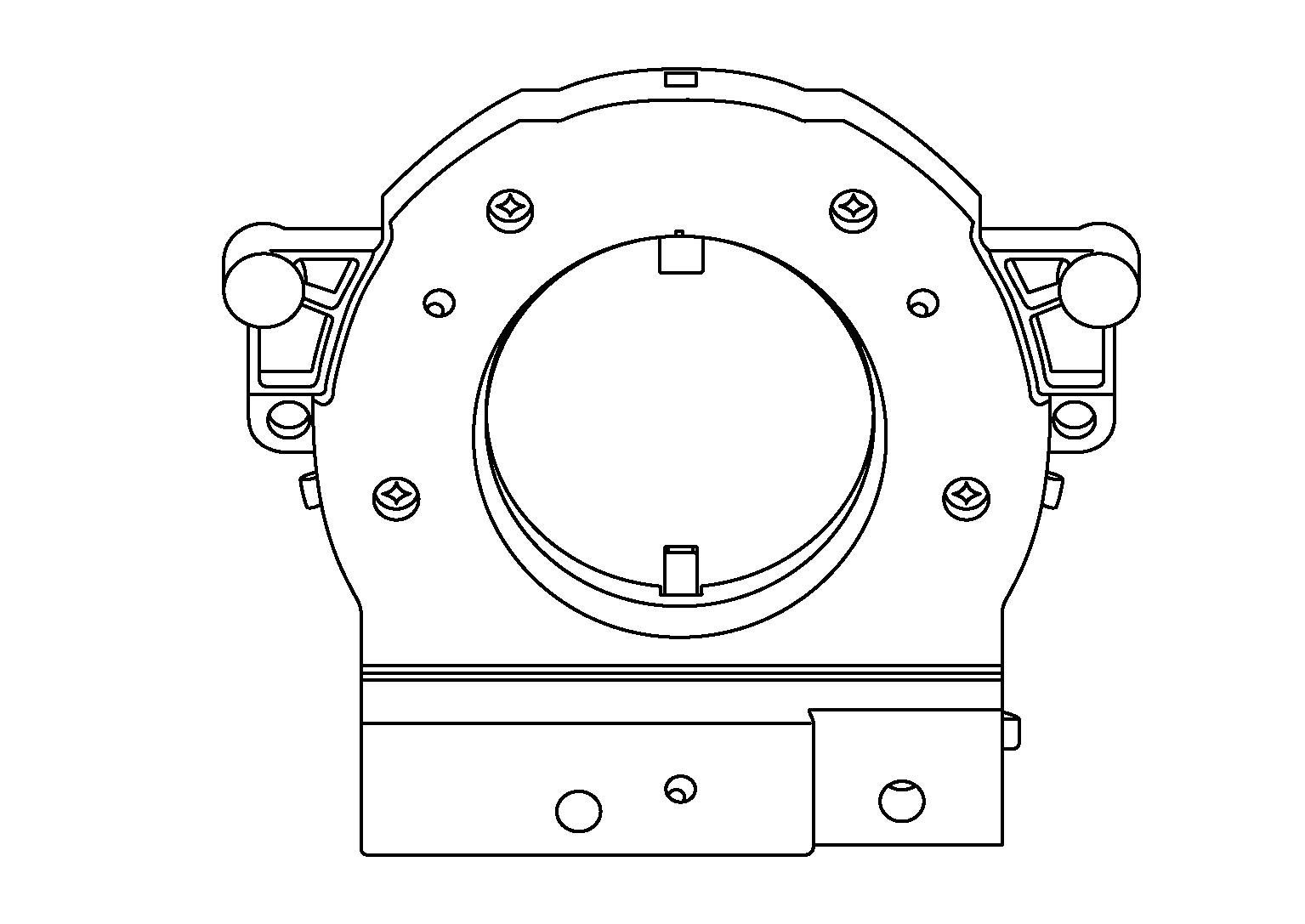

Fig 1: Transmits Steering Angle Signal To ABS Actuator And Electric Unit (Control Unit)

Courtesy of NISSAN NORTH AMERICA, INC.

• Steering angle sensor malfunction signal
• Steering wheel rotation amount
• Steering wheel rotation angular velocity
• Steering wheel rotation direction
