Side Window Glass
>>
Components
Side Window Glass: Components

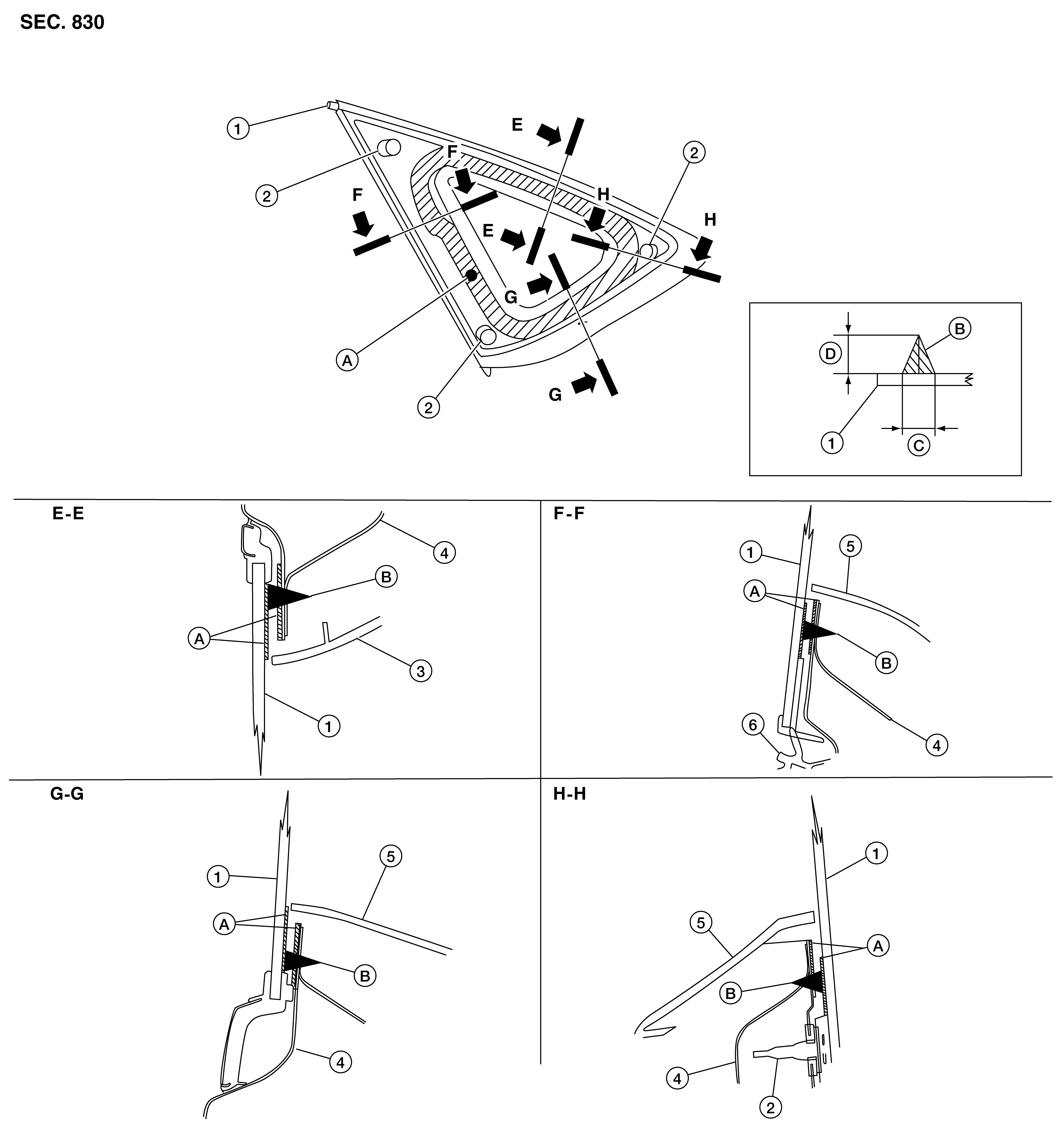

Fig 1: View Of Side Window Glass Components
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Side window glass
2.
Spacer
3.
Headlining
4.
Rear body pillar
5.
Rear pillar finisher
6.
Rear door weatherstrip
A.
Primer area
B.
Adhesive
C.
7 mm (0.3 in)
D.
12 mm (0.5 in)
Courtesy of NISSAN NORTH AMERICA, INC.
