Exploded View With Torque Specifications

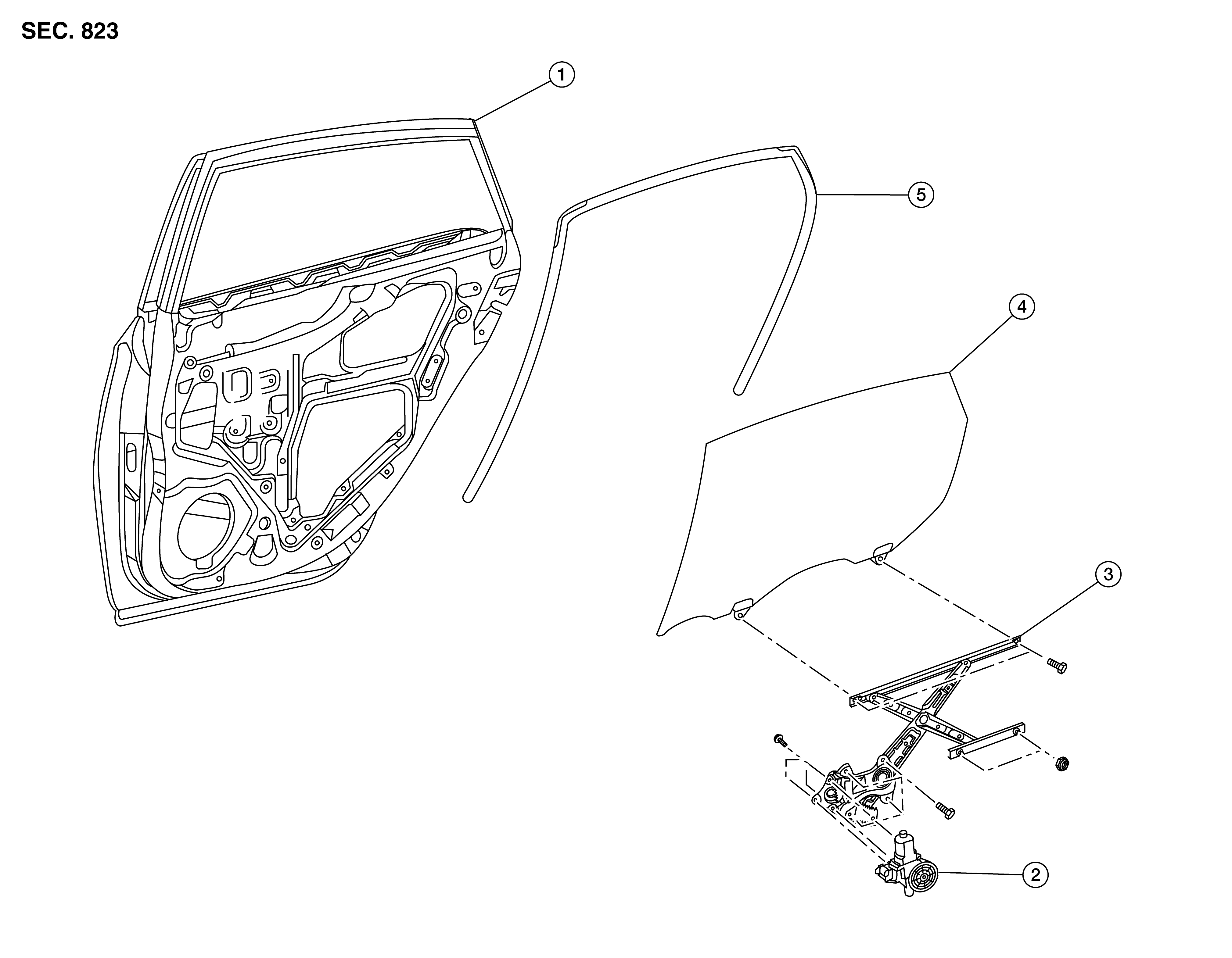

Fig 1: Exploded View Of Rear Regulator

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door panel	2.	Rear door glass regulator motor	3.	Rear door glass regulator
4.	Rear door glass	5.	Rear door glass rubber run
