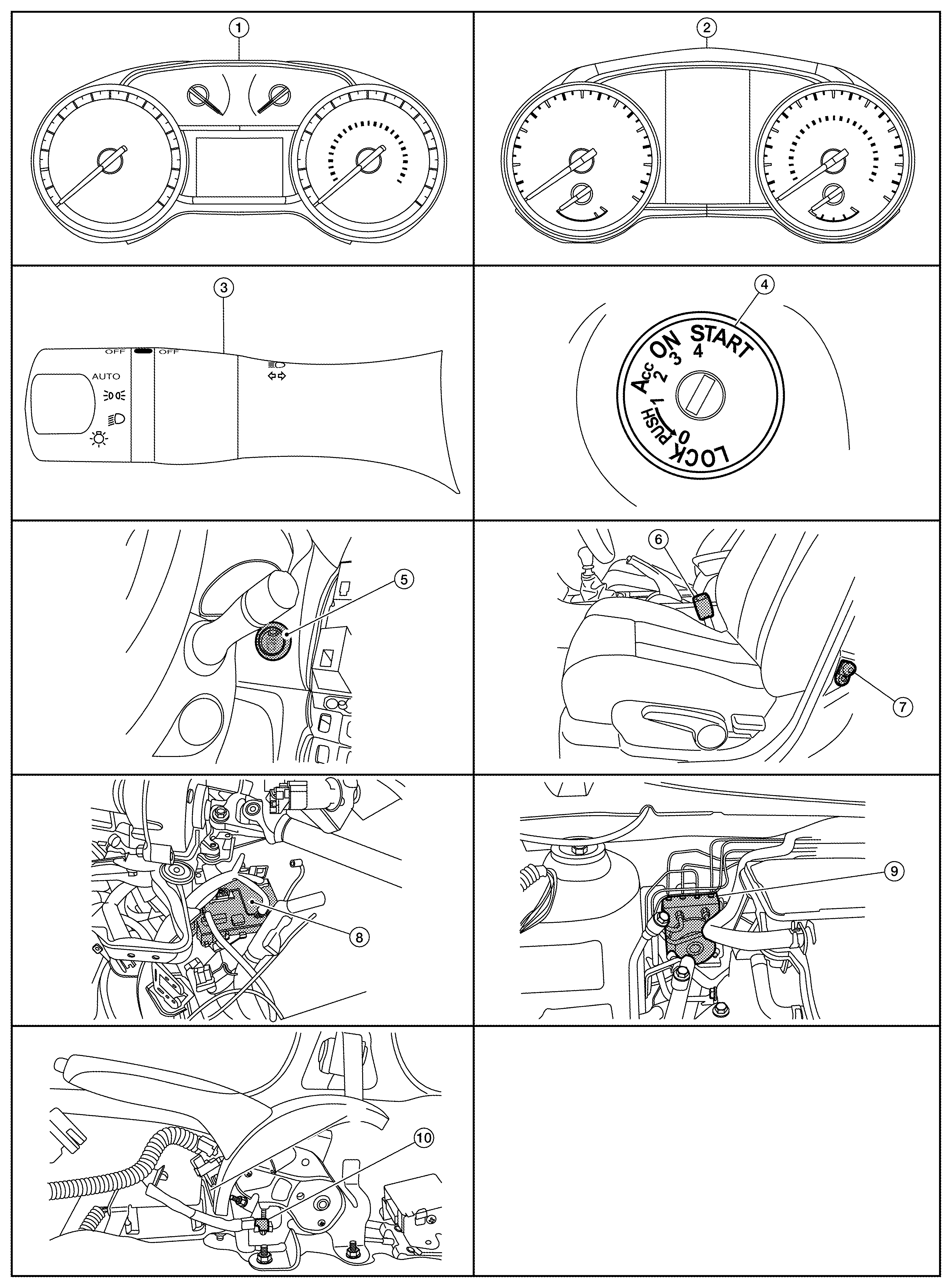

Component Location
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Combination Meter (Type A) |
2. | Combination Meter (Type B) |
3. | Combination Switch (Lighting And Turn Signal Switch) |
| 4. | Key Switch (Without Intelligent Key System) | 5. | Push-Button Ignition Switch (With Intelligent Key System) | 6. | Seat Belt Buckle Switch LH |
| 7. | Front Door Switch LH | 8. | BCM (View With Instrument Panel Removed) |
9. | ABS Actuator And Electric Unit (Control Unit) |
| 10. | Parking Brake Switch (View With Center Console Removed) |
