Work Procedure

WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

RECORD BLUETOOTH D/C(SERIAL #) FOR REPLACEMENT AUDIO UNIT

Turn ignition switch ON.
Turn audio unit OFF.

Access the diagnostic menu as follows:

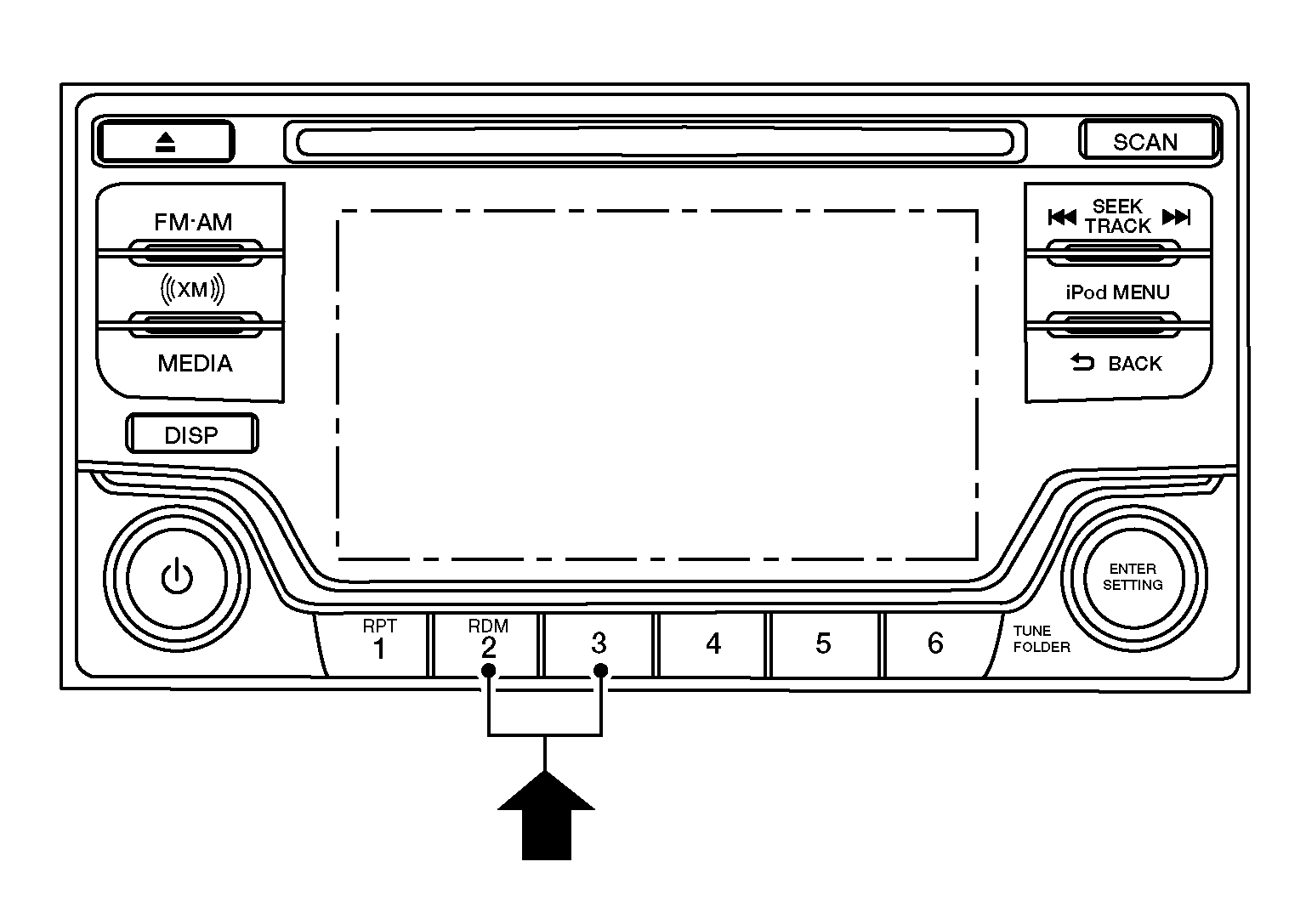

Press and hold preset buttons 2 and 3.

Courtesy of NISSAN NORTH AMERICA, INC.

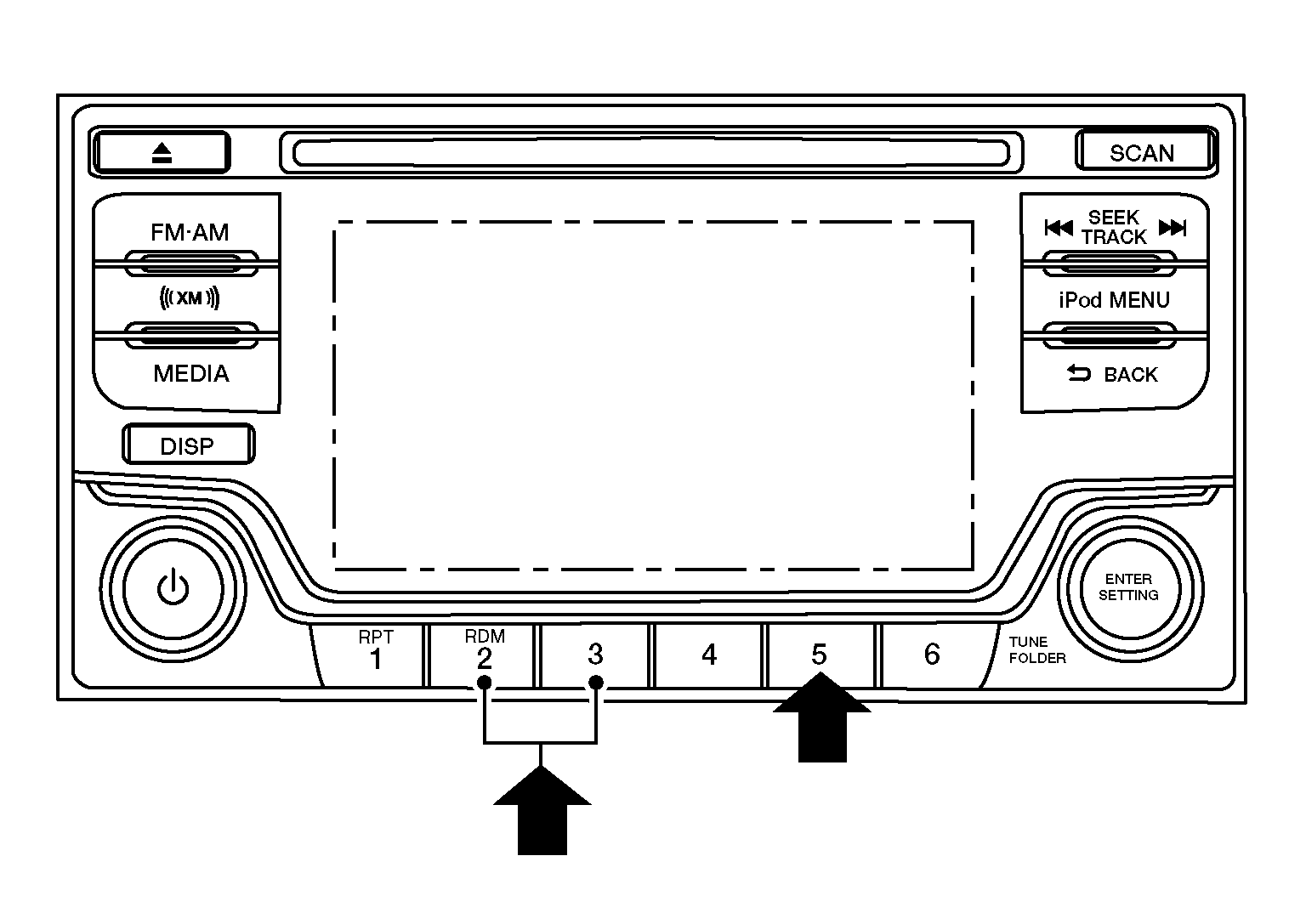

While holding preset buttons 2 and 3, press preset button 5 three times.

Courtesy of NISSAN NORTH AMERICA, INC.

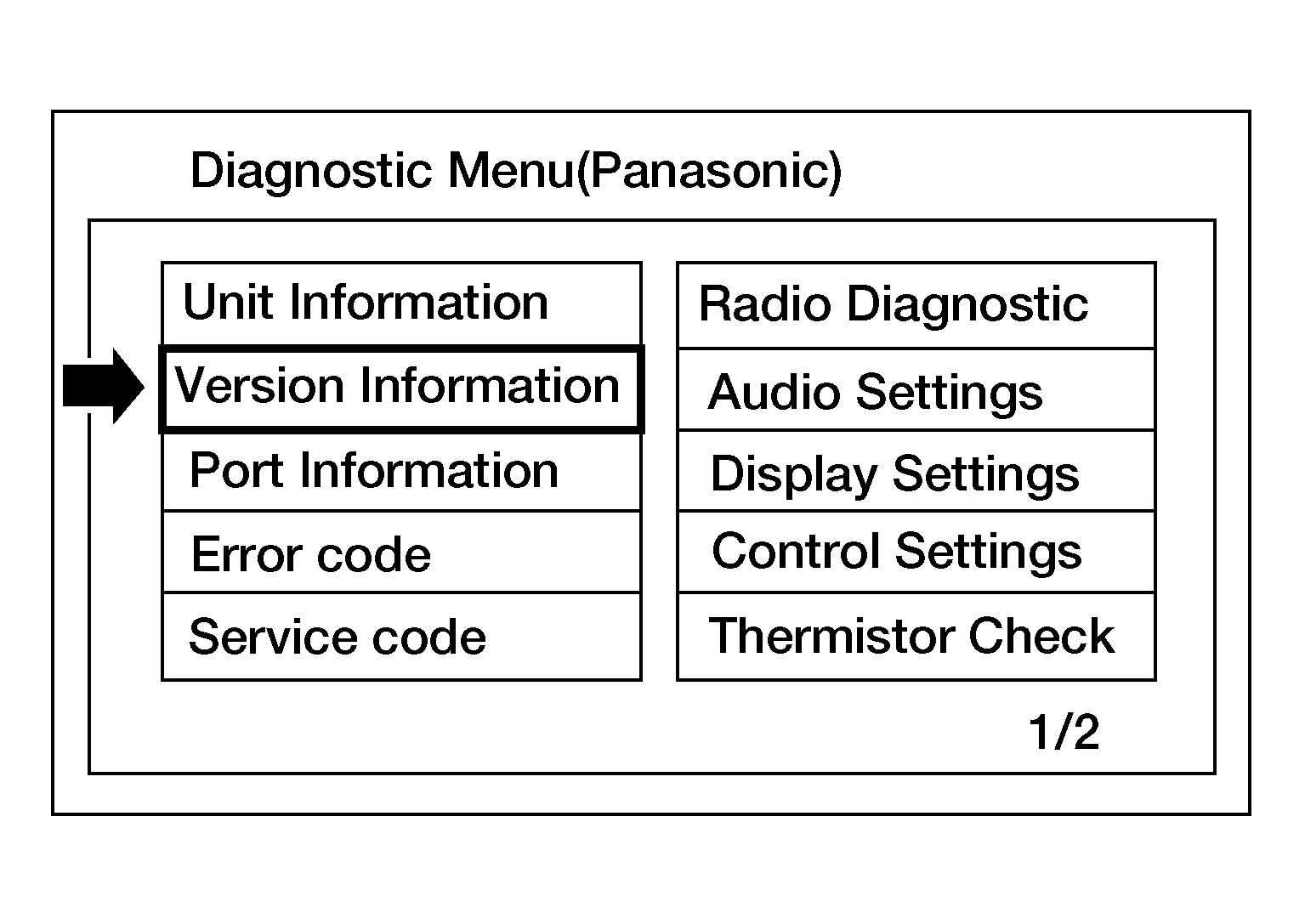

Select Version Information from the Diagnostic Menu.

Courtesy of NISSAN NORTH AMERICA, INC.

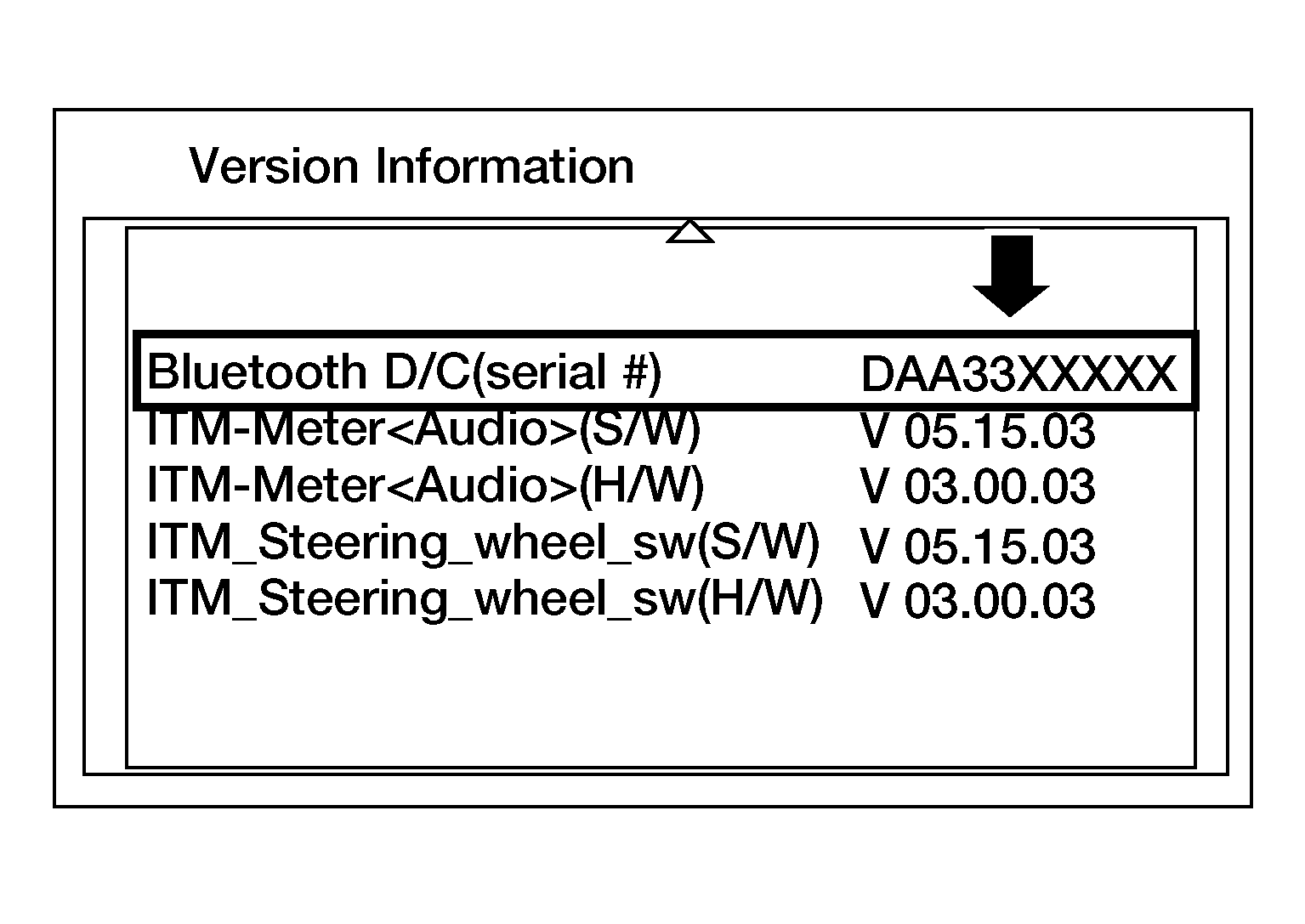

Scroll through the menu pages to Bluetooth D/C(serial #) and record the number displayed.

Courtesy of NISSAN NORTH AMERICA, INC.

GO TO STEP 2 .

REGISTER REPLACEMENT AUDIO UNIT

Register the replacement audio unit by contacting NISSAN Owner Services. Refer to TSB.

GO TO STEP 3 .

OPERATION CHECK

Verify that the audio unit "APPS" function operates normally.

Work End.
