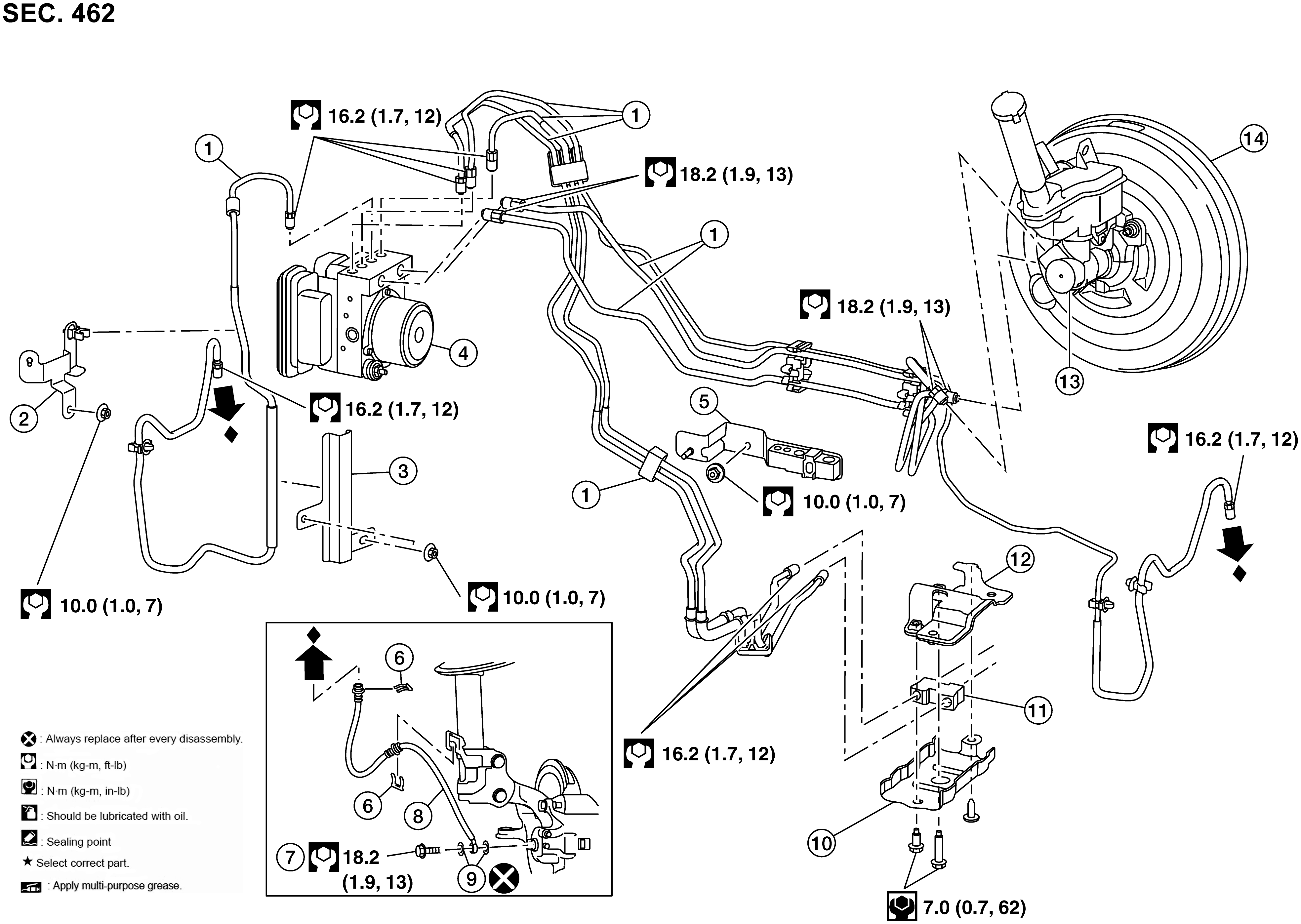

Exploded View: MR16DDT
WARNING: This page is about a different car, the 2017 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.
| 1. | Brake tube | 2. | Bracket | 3. | Heat insulator |
| 4. | ABS actuator and electric unit (control unit) | 5. | Brake tube bracket | 6. | Lock plate |
| 7. | Union bolt | 8. | Brake hose | 9. | Copper sealing washer |
| 10. | Connector protector | 11. | Connector | 12. | Connector bracket |
| 13. | Master cylinder assembly | 14. | Master cylinder assembly | A. | To rear brake tube |
