Exploded View With Torque Specifications

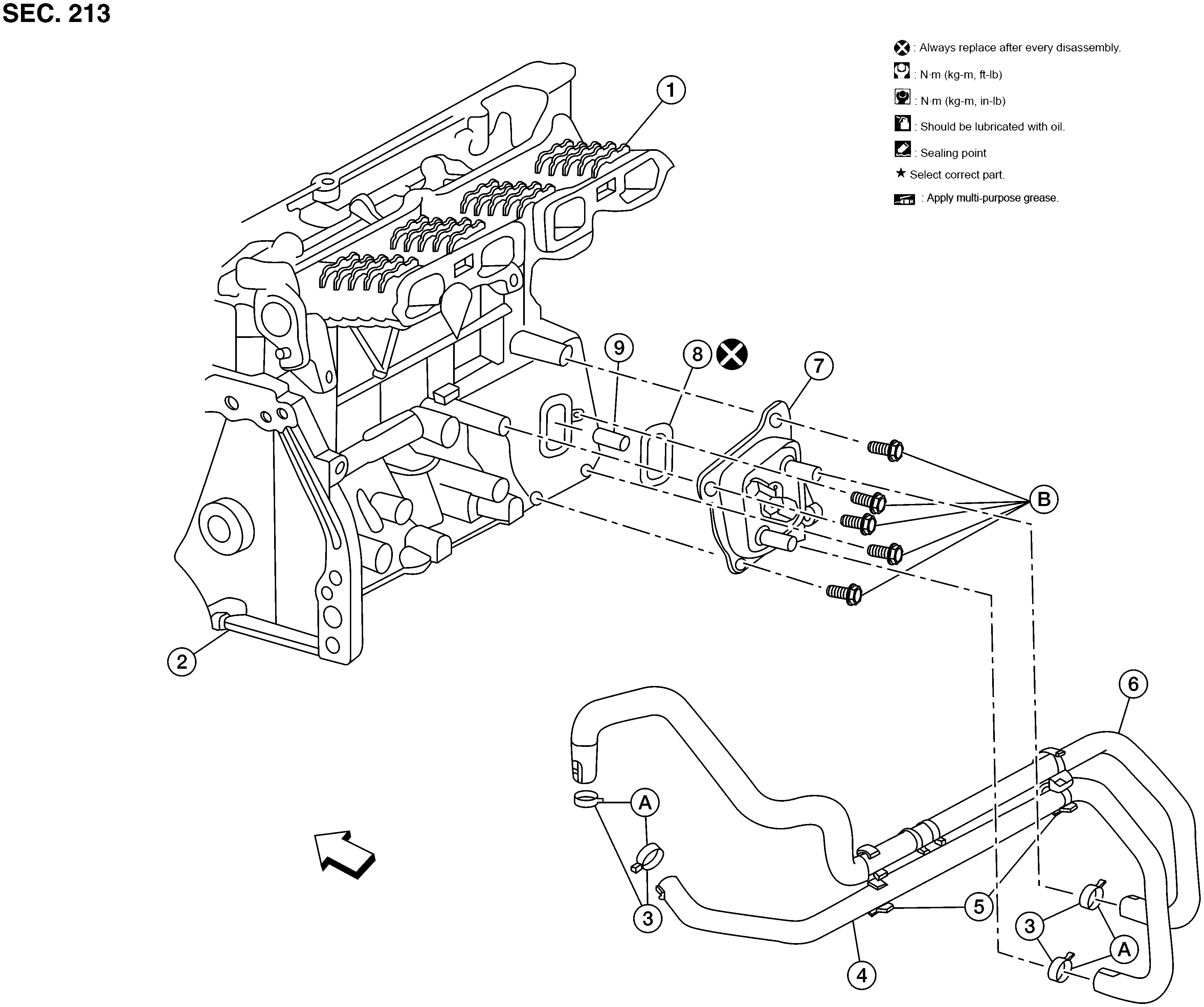

Fig 1: Exploded View Of Engine Oil Cooler

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Intake manifold	2.	Cylinder block	3.	Clamp
4.	Water hose (A)	5.	Water hose clip	6.	Water hose (B)
7.	Oil cooler	8.	Gasket	9.	Oil cooler relief valve
	Front	A.	Refer to INSTALLATION	B.	Refer to INSTALLATION
