Exploded View With Torque Specifications

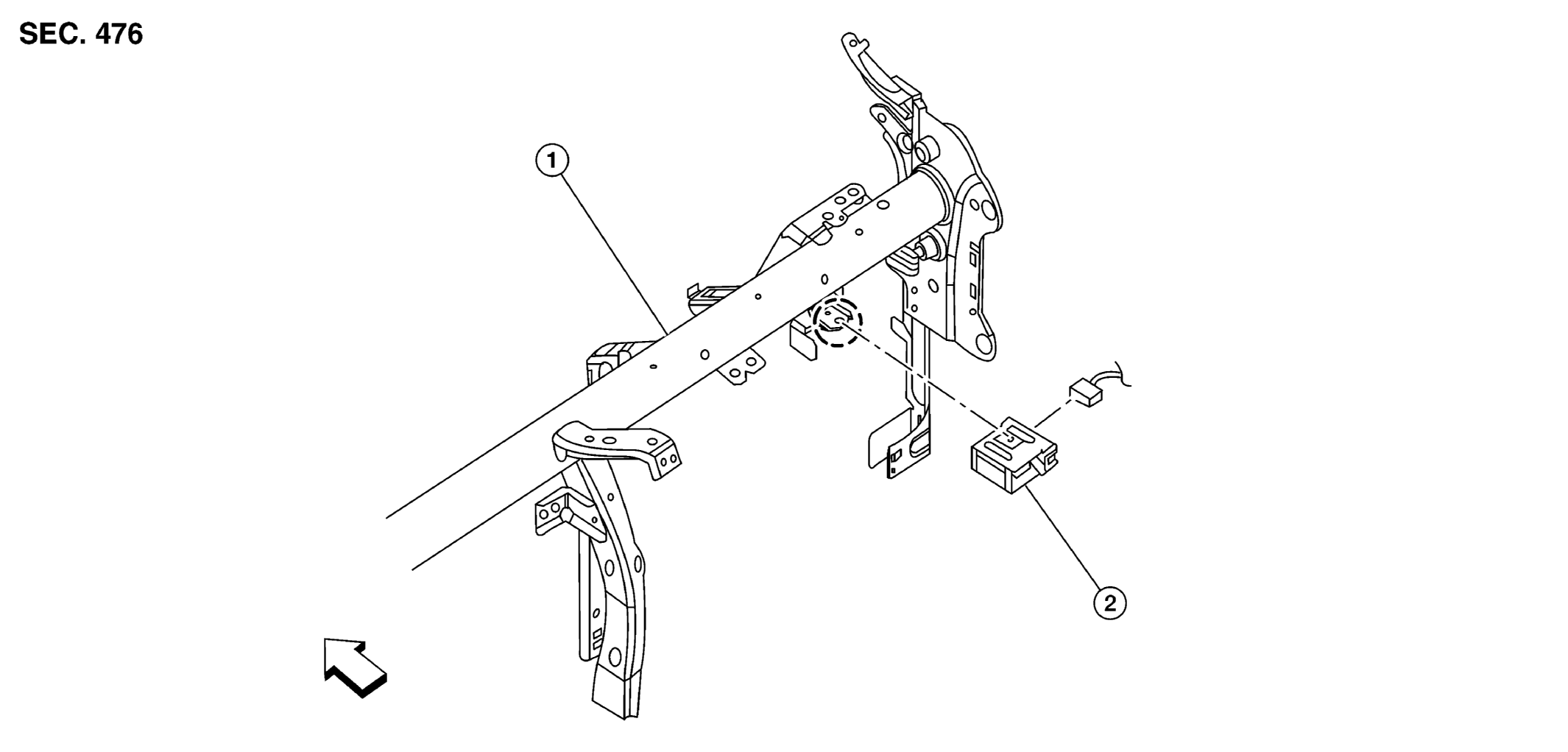

Fig 1: Exploded View Of Chassis Control Module

GNSAWOIA0074ZZ-074

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering member

2.

Chassis control module

Front
