Exploded View With Torque Specifications

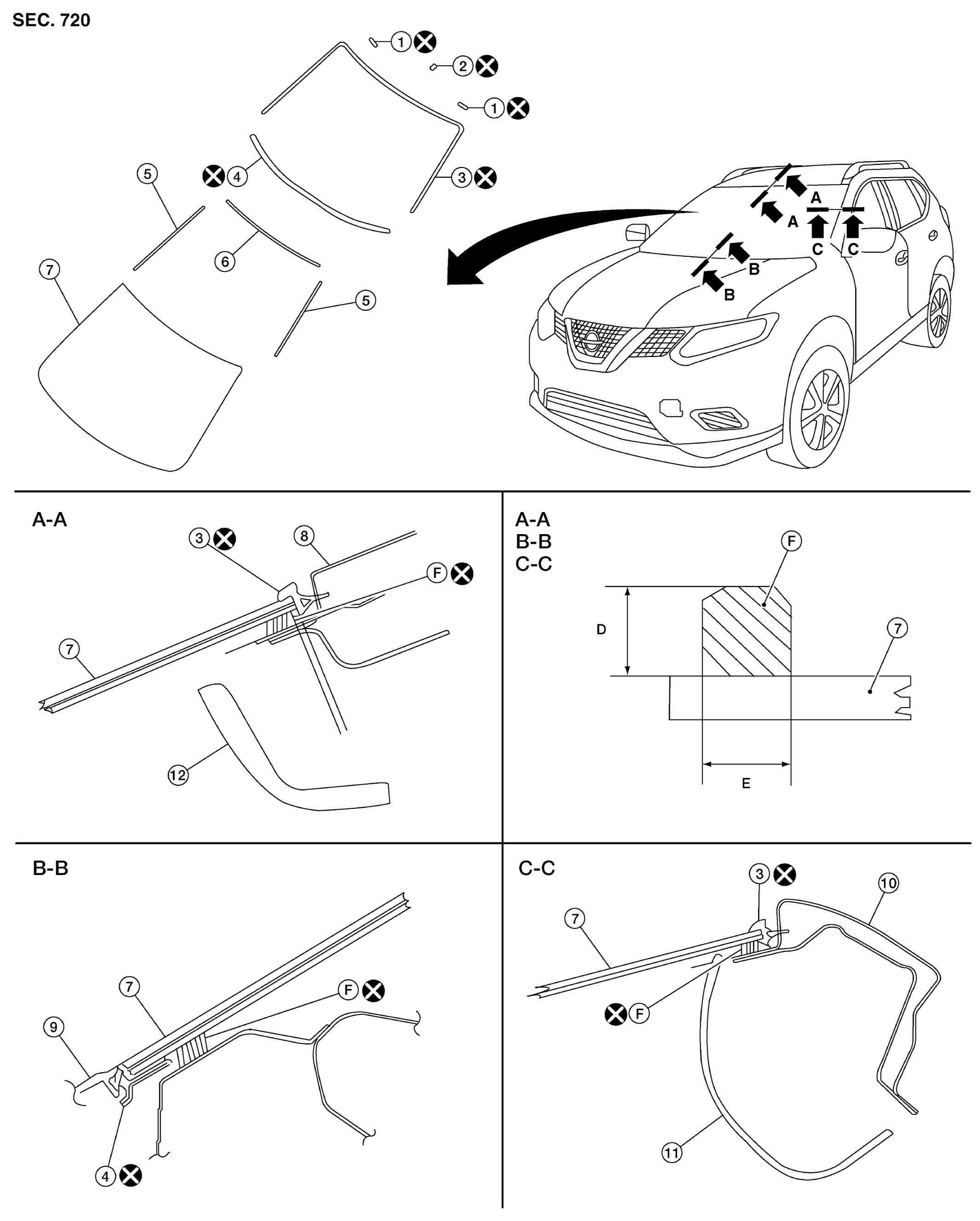

Fig 1: Exploded View Of Windshield Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Spacer	2.	Mirror base	3.	Windshield glass molding
4.	Windshield glass lower molding	5.	Dam sealant side	6.	Dam sealant upper
7.	Windshield glass	8.	Roof	9.	Cowl top cover
10.	Body side outer	11.	Front pillar finisher	12.	Headlining
D.	12 mm (0.47 in)	E.	7 mm (0.28 in)	F.	Adhesive
