Exploded View With Torque Specifications

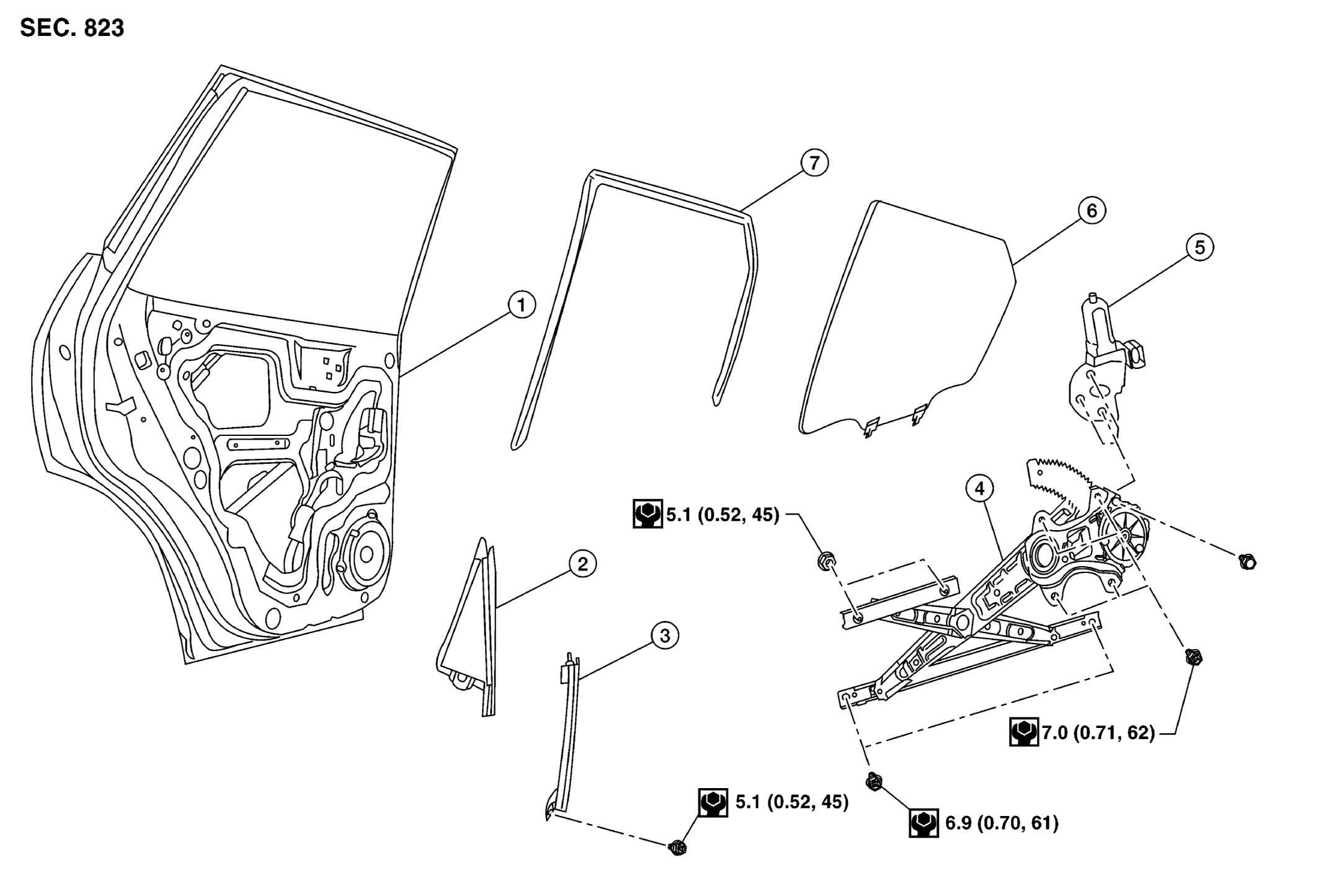

Fig 1: Exploded View Of Rear Door Glass And Regulator With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear door panel	2.	Rear door glass corner finisher	3.	Rear door glass rear run channel
4.	Rear door regulator assembly	5.	Rear door glass power window motor	6.	Rear door glass
7.	Rear door glass rubber run channel
