Exploded View With Torque Specifications

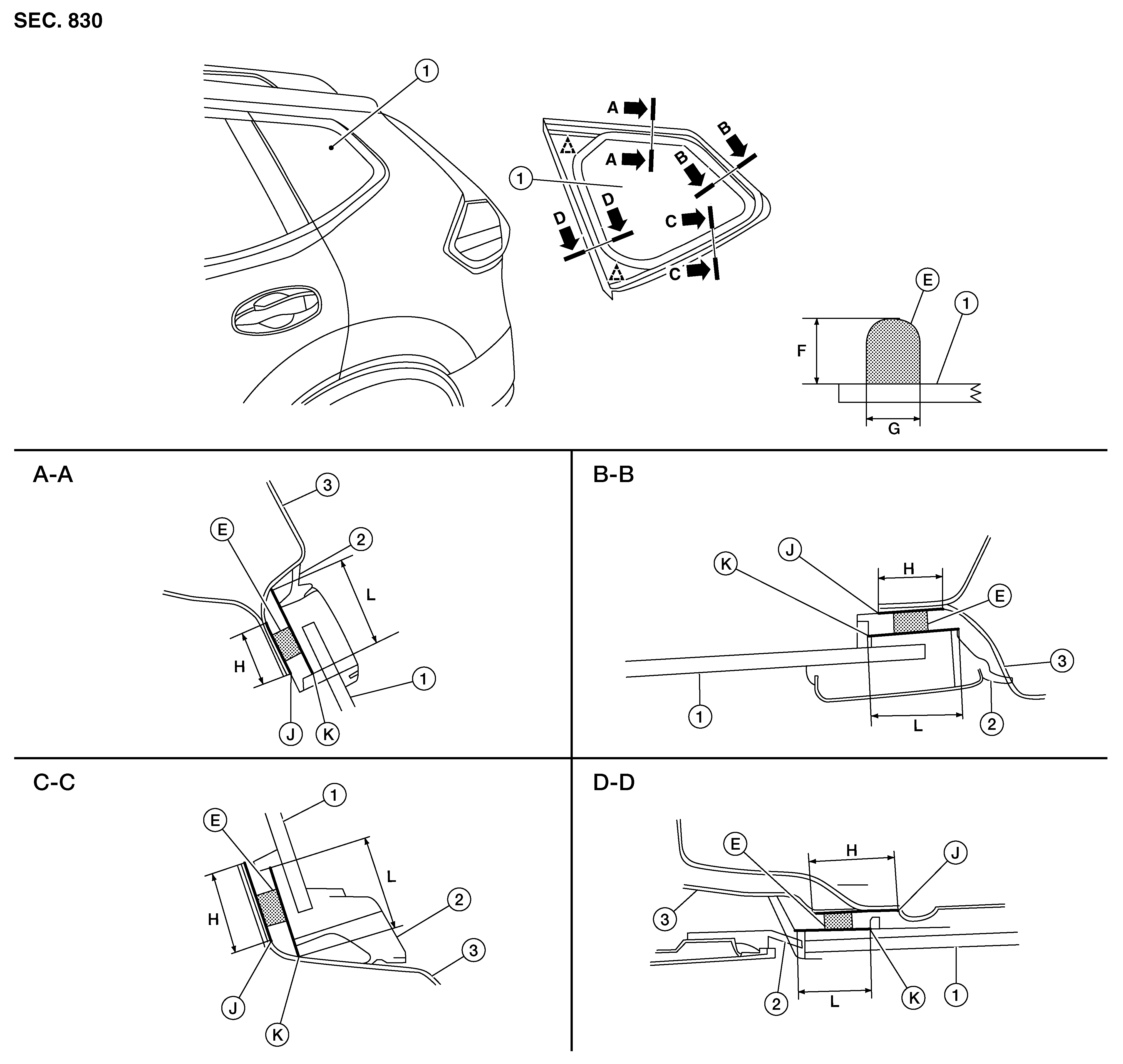

Fig 1: Exploded View Of Quarter Window Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Quarter window glass	2.	Quarter window glass molding	3.	Body side outer
E.	7.0 mm (0.28 in)	F.	12.0 (0.47 in)	G.	Adhesive
H.	Glass primer	J.	17 mm (0.67 in)	G.	Body side primer
L.	Mating surface		Clip
