Exploded View With Torque Specifications

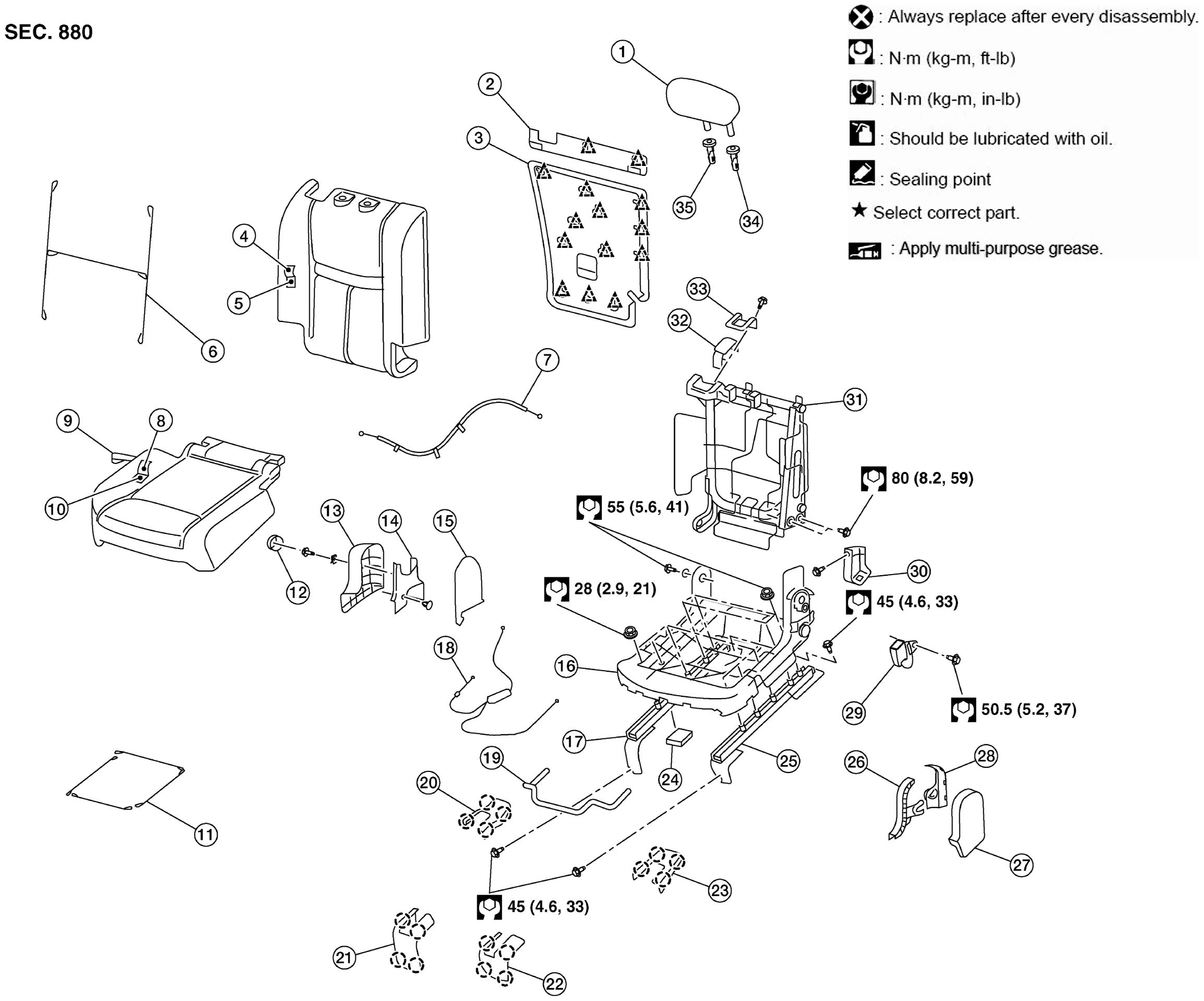

RH SEAT
| 1. | Headrest | 2. | Seatback upper luggage board | 3. | Seatback luggage board |
| 4. | Seatback trim | 5. | Seatback pad | 6. | Seatback pad wire |
| 7. | Recline release cable | 8. | Seat cushion trim | 9. | Fold flat strap |
| 10. | Seat cushion pad | 11. | Seat cushion pad wire | 12. | Bolt cover |
| 13. | Seat cushion outer finisher (RH) | 14. | Seat cushion inner finisher (RH) | 15. | Hinge bracket (USA production) |
| 16. | Seat cushion frame | 17. | Seat cushion slide (RH) | 18. | Seat cushion slide cable |
| 19. | Seat slide control lever | 20. | Rear bolt cover (RH) (with third row seat) | 21. | Front bolt cover (RH) |
| 22. | Front bolt cover (LH) | 23. | Rear bolt cover (LH) (with third row seat) | 24. | Spacer |
| 25. | Seat cushion slide (LH) | 26. | Seat cushion inner finisher (LH) | 27. | Seat cushion outer finisher (LH) |
| 28. | Seat cushion rear finisher (LH) | 29. | Seat belt buckle (RH) | 30. | Recline lever finisher |
| 31. | Seatback frame | 32. | Recline device | 33. | Recline device cover |
| 34. | Headrest holder (locked) | 35. | Headrest holder (free) | Clip | |
| Pawl |

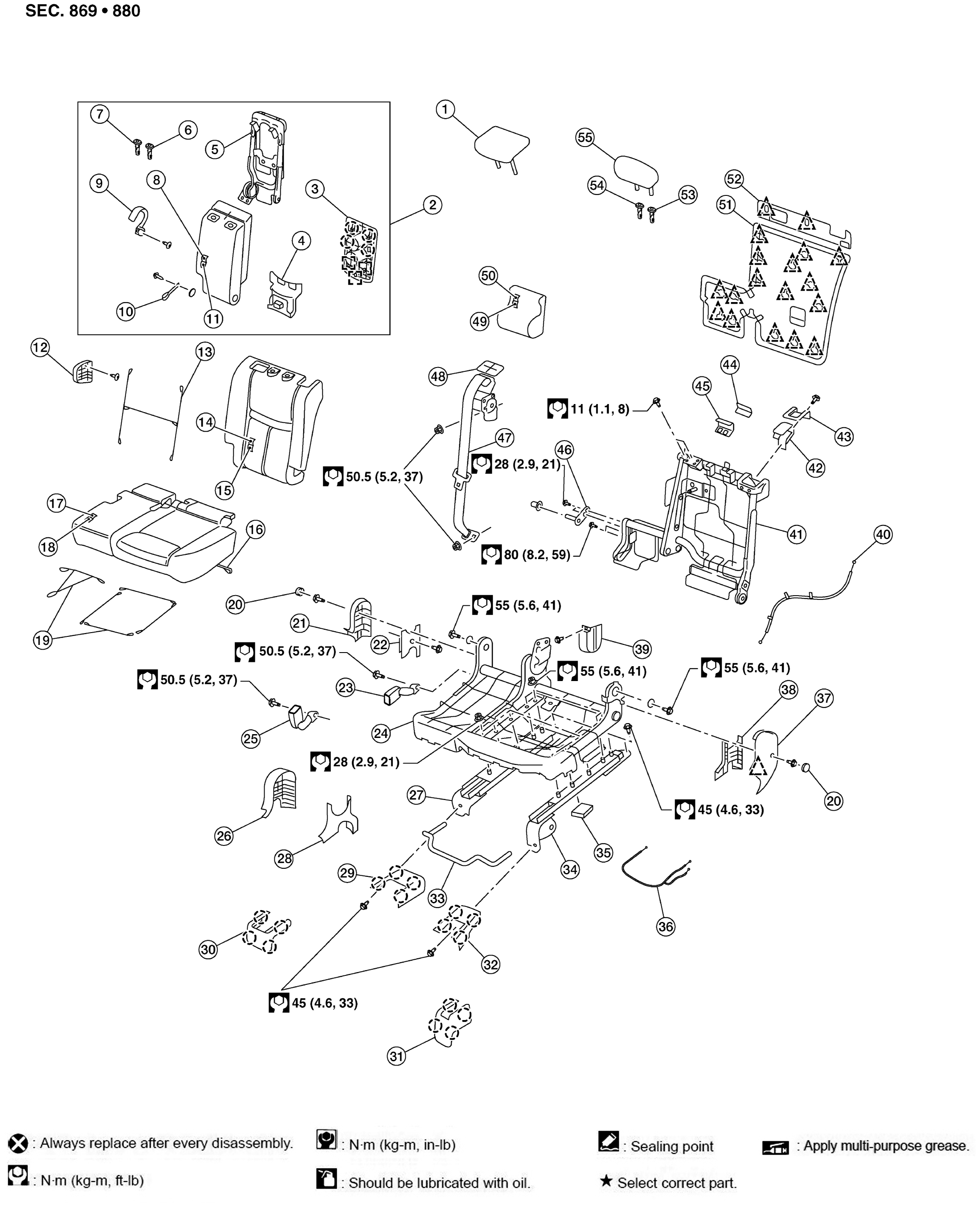

LH SEAT
| 1. | Headrest (center) | 2. | Armrest assembly | 3. | Cup holder |
| 4. | Armrest lower pad | 5. | Armrest frame | 6. | Center headrest holder (locked) |
| 7. | Center headrest holder (free) | 8. | Armrest trim | 9. | Armrest inner finisher |
| 10. | Armrest fold flat strap | 11. | Armrest pad | 12. | Armrest outer finisher |
| 13. | Seatback pad wire | 14. | Seatback trim | 15. | Seatback pad |
| 16. | Fold flat strap | 17. | Seat cushion trim | 18. | Seat cushion pad |
| 19. | Seat cushion pad wire | 20. | Bolt cover | 21. | Seat cushion outer finisher (RH) |
| 22. | Seat cushion inner finisher (RH) | 23. | Seat belt buckle (center) | 24. | Seat cushion frame |
| 25. | Seat belt buckle (LH) | 26. | Seat cushion center finisher (RH) | 27. | Seat cushion slide (RH) |
| 28. | Seat cushion center finisher (LH) | 29. | Rear bolt cover (RH) (with third row seat) | 30. | Front bolt cover (RH) |
| 31. | Front bolt cover (LH) | 32. | Rear bolt cover (LH) (with third row seat) | 33. | Seat slide control lever |
| 34. | Seat cushion slide (LH) | 35. | Spacer | 36. | Seat cushion slide cable |
| 37. | Seat cushion outer finisher (LH) | 38. | Seat cushion inner finisher (LH) | 39. | Armrest inner finisher |
| 40. | Recline release cable | 41. | Seatback frame | 42. | Recline device |
| 43. | Recline device finisher | 44. | Seat belt retractor outer finisher | 45. | Seat belt retractor inner finisher |
| 46. | Armrest bracket | 47. | Seat belt retractor (center) | 48. | Seat belt retractor finisher |
| 49. | Seatback center pad | 50. | Seatback center trim | 51. | Seatback luggage board |
| 52. | Seatback luggage upper board | 53. | LH headrest holder (locked) | 54. | LH headrest holder (free) |
| 55. | Headrest (LH) | Clip | Pawl |
