Exploded View With Torque Specifications

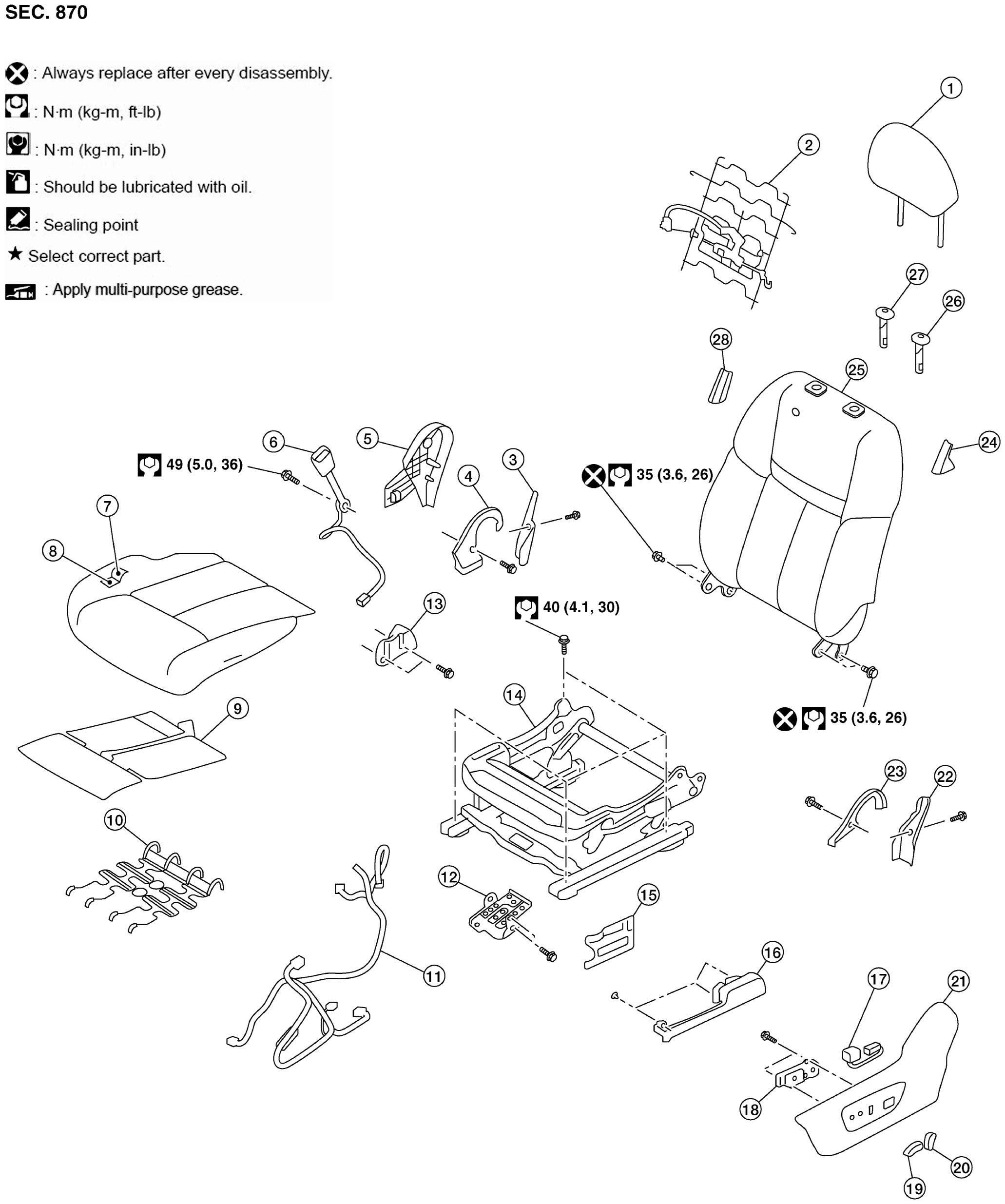

DRIVER POWER SEAT
| 1. | Headrest | 2. | Seatback support | 3. | Seat cushion rear finisher (RH) |
| 4. | Seat cushion inner finisher (RH) | 5. | Seat cushion outer finisher (RH) | 6. | Seat belt buckle |
| 7. | Seat cushion trim | 8. | Seat cushion pad | 9. | Seat cushion heater (if equipped) |
| 10. | Seat cushion support | 11. | Seat harness | 12. | Seat harness bracket |
| 13. | Seat slide finisher (RH) | 14. | Seat cushion frame | 15. | Seat slide finisher bracket (LH) |
| 16. | Seat slide finisher (LH) | 17. | Lumbar support switch | 18. | Power seat switch |
| 19. | Seat slide knob | 20. | Seat recline knob | 21. | Seat cushion outer finisher (LH) |
| 22. | Seat cushion rear finisher (LH) | 23. | Seat cushion inner finisher (LH) | 24. | Seatback bracket (LH) |
| 25. | Seatback assembly | 26. | Headrest holder (locked) | 27. | Headrest holder (free) |
| 28. | Seatback bracket [RH (USA production)] |

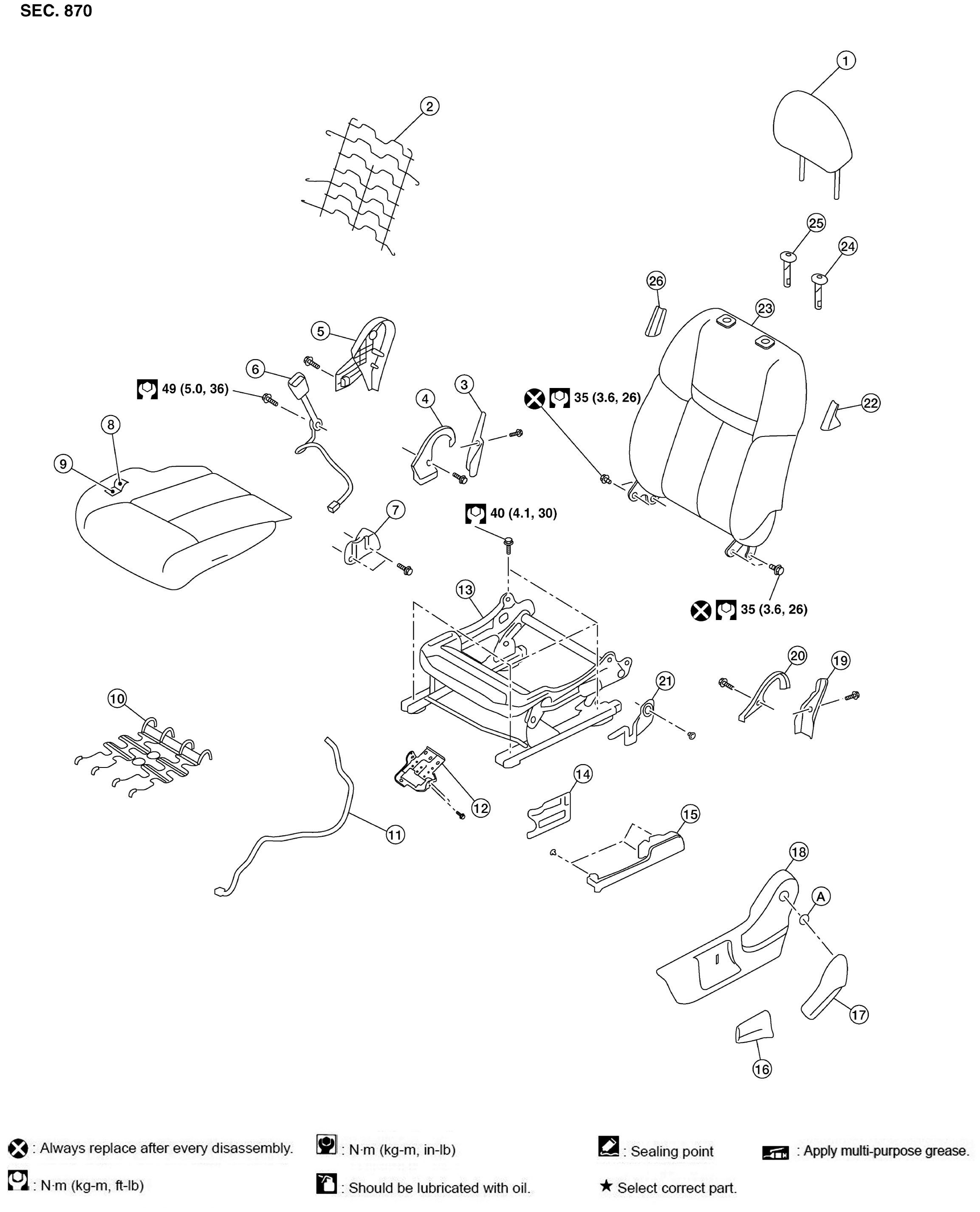

DRIVER MANUAL SEAT
| 1. | Headrest | 2. | Seatback support | 3. | Seat cushion rear finisher (RH) |
| 4. | Seat cushion inner finisher (RH) | 5. | Seat cushion outer finisher (RH) | 6. | Seat belt buckle |
| 7. | Seat slide finisher (RH) | 8. | Seat cushion trim | 9. | Seat cushion pad |
| 10. | Seat cushion support | 11. | Seat harness | 12. | Bracket |
| 13. | Seat cushion frame | 14. | Seat slide finisher bracket (LH) | 15. | Seat slide finisher (LH) |
| 16. | Lift lever | 17. | Recline lever | 18. | Seat cushion outer finisher (LH) |
| 19. | Seat cushion rear finisher (LH) | 20. | Seat cushion inner finisher (LH) | 21. | Recline switch |
| 22. | Seatback bracket (LH) | 23. | Seatback assembly | 24. | Headrest holder (locked) |
| 25. | Headrest holder (free) | 26. | Seatback bracket [RH (USA production)] | A. | Snap ring |

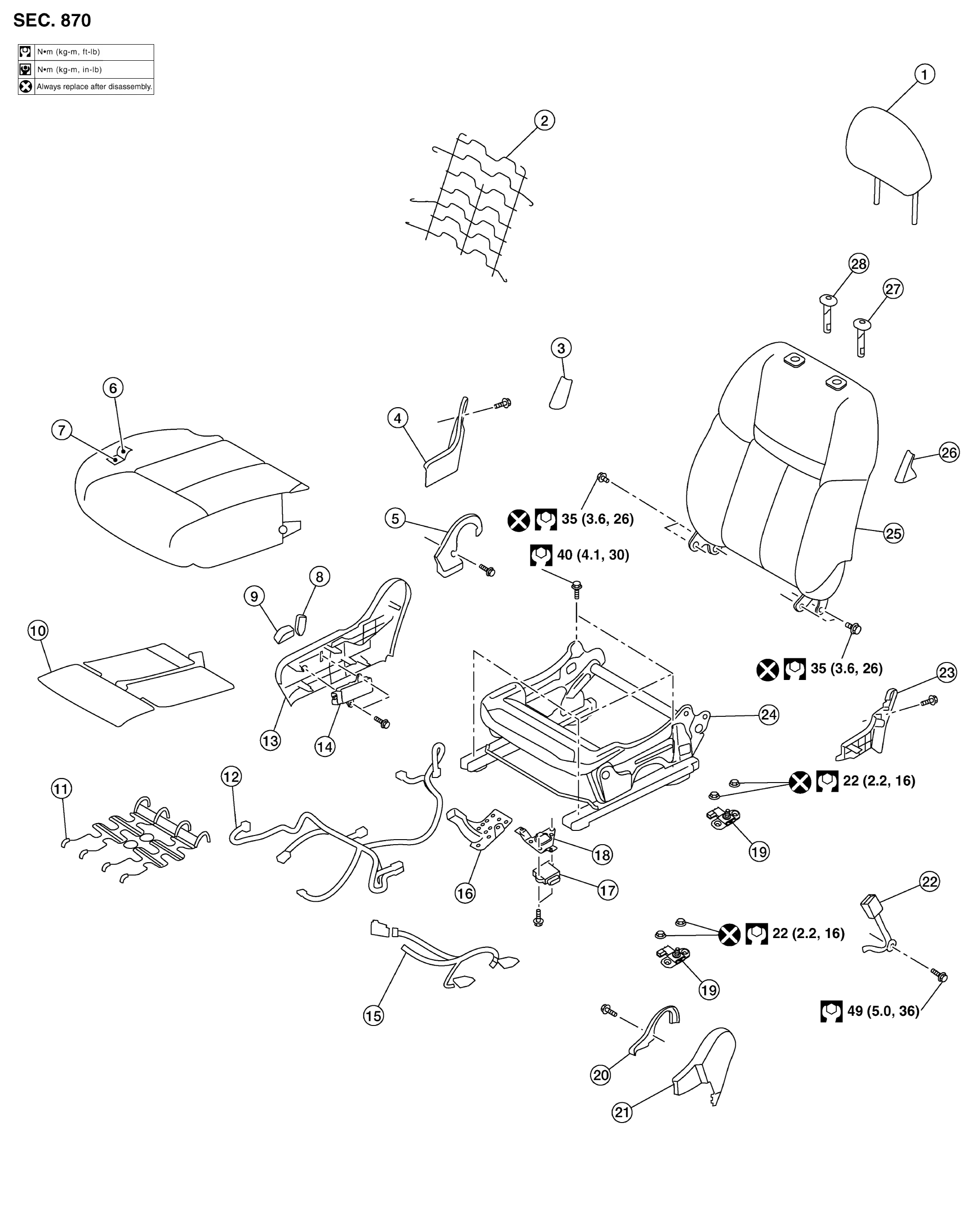

PASSENGER POWER SEAT
| 1. | Headrest | 2. | Seatback support | 3. | Seatback bracket (RH) |
| 4. | Seat cushion rear finisher (RH) | 5. | Seat cushion inner finisher (RH) | 6. | Seat cushion trim |
| 7. | Seat cushion pad | 8. | Seat recline knob | 9. | Seat slide knob |
| 10. | Seat cushion heater | 11. | Seat cushion support | 12. | Seat harness |
| 13. | Seat cushion outer finisher (RH) | 14. | Power seat switch | 15. | Occupant classification system harness |
| 16. | Wiring harness bracket | 17. | Occupant classification system control unit | 18. | Occupant classification system bracket |
| 19. | Occupant classification system sensor | 20. | Seat cushion inner finisher (LH) | 21. | Seat cushion outer finisher (LH) |
| 22. | Seat belt buckle | 23. | Seat cushion rear finisher (LH) | 24. | Seat cushion frame |
| 25. | Seatback assembly | 26. | Seatback bracket [LH (USA production)] | 27. | Headrest holder (locked) |
| 28. | Headrest holder (free) |

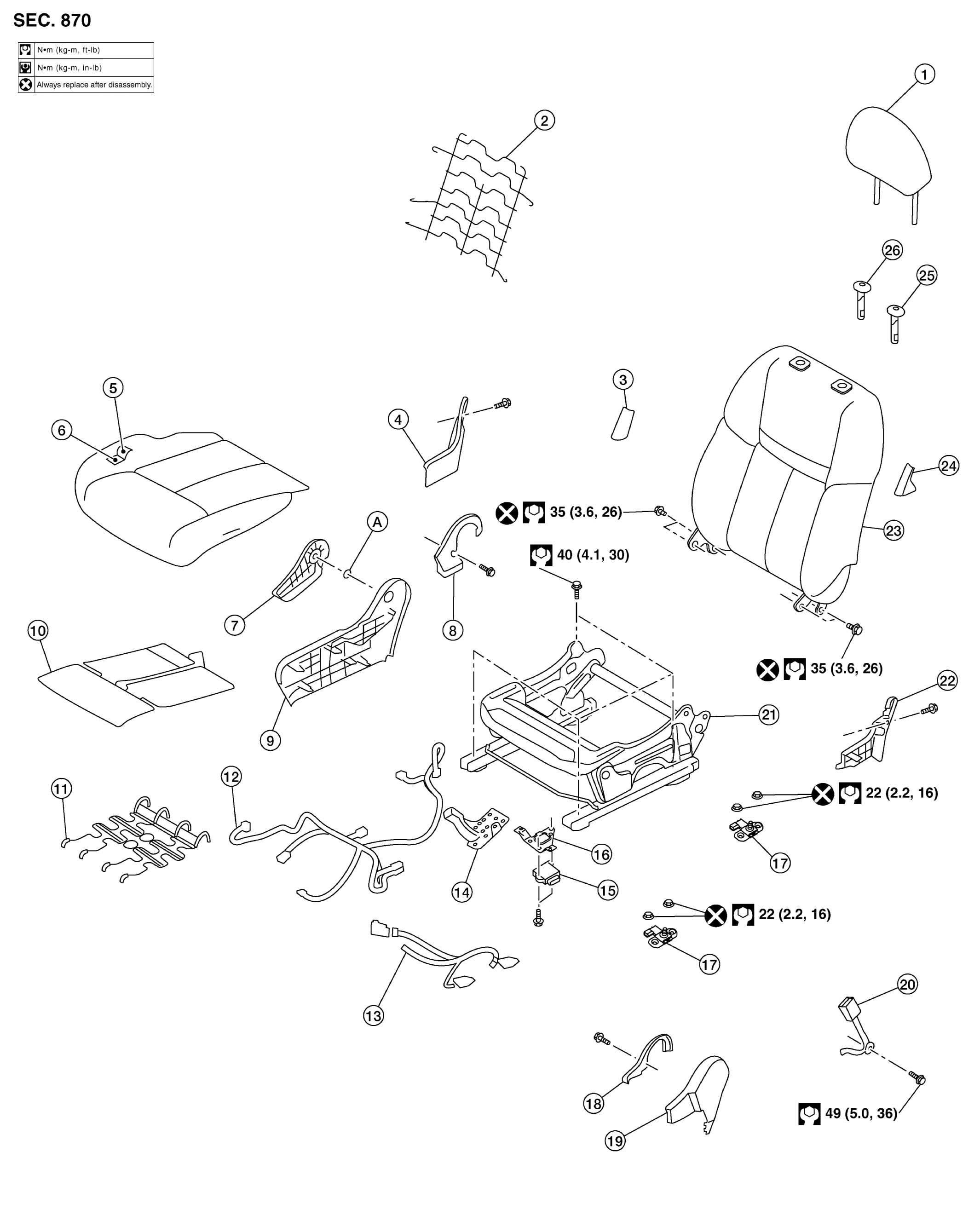

PASSENGER MANUAL SEAT
| 1. | Headrest | 2. | Seatback support | 3. | Seatback bracket (RH) |
| 4. | Seat cushion rear finisher (RH) | 5. | Seat cushion trim | 6. | Seat cushion pad |
| 7. | Recline lever | 8. | Seat cushion inner finisher (RH) | 9. | Seat cushion outer finisher (RH) |
| 10. | Seat cushion heater (if equipped) | 11. | Seat cushion support | 12. | Seat harness |
| 13. | Occupant classification system harness | 14. | Seat cushion outer finisher (LH) | 15. | Occupant classification system control unit |
| 16. | Occupant classification system control unit bracket | 17. | Occupant classification system sensor | 18. | Seat cushion inner finisher (LH) |
| 19. | Seat cushion outer finisher (LH) | 20. | Seat belt buckle | 21. | Seat cushion frame |
| 22. | Seat cushion rear finisher (LH) | 23. | Seatback assembly | 24. | Seatback bracket [LH (USA production)] |
| 25. | Headrest holder (locked) | 26. | Headrest holder (free) | A. | Snap ring |
