Exploded View With Torque Specifications

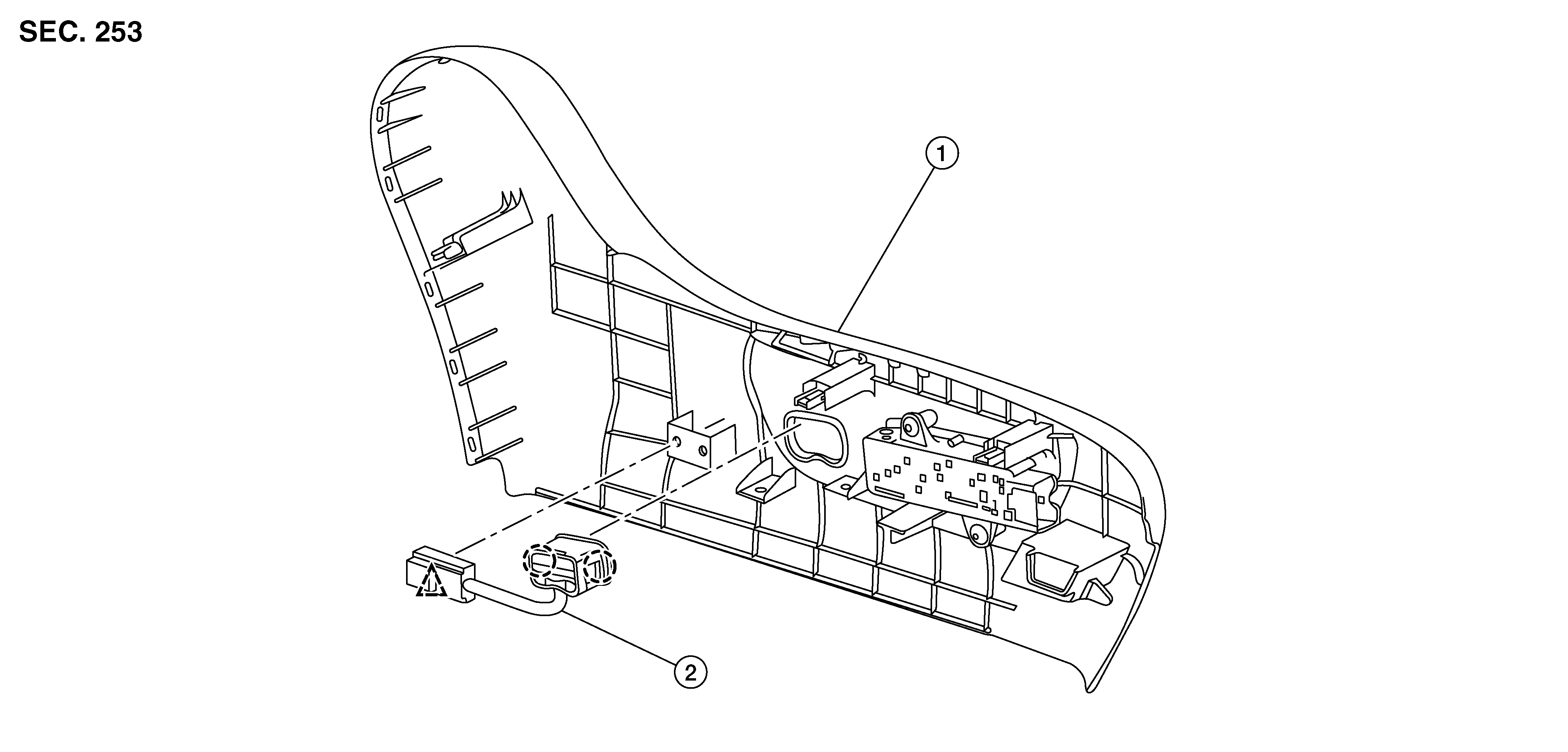

Fig 1: Exploded View Of Lumbar Support Switch
GNSALJIA1480ZZ-480Courtesy of NISSAN NORTH AMERICA, INC.
1. Seat cushion outer finisher 2. Lumbar support switch SANKAKU-H Clip
MARU-H Pawl
