Exploded View With Torque Specifications

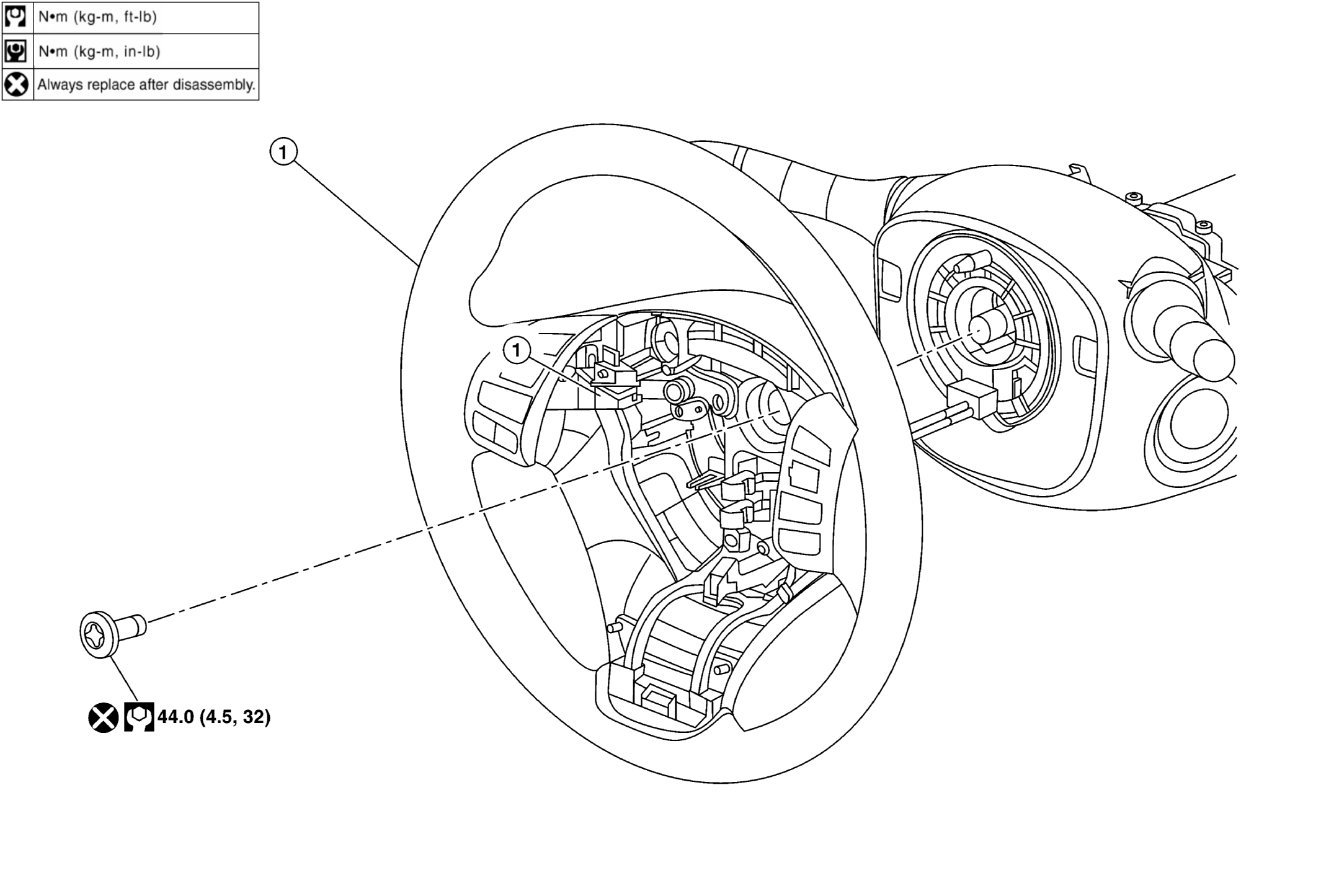

Fig 1: Exploded View Of Steering Wheel With Torque Specifications
GNSAWGIA0387ZZ-387Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering wheel
