Exploded View With Torque Specifications

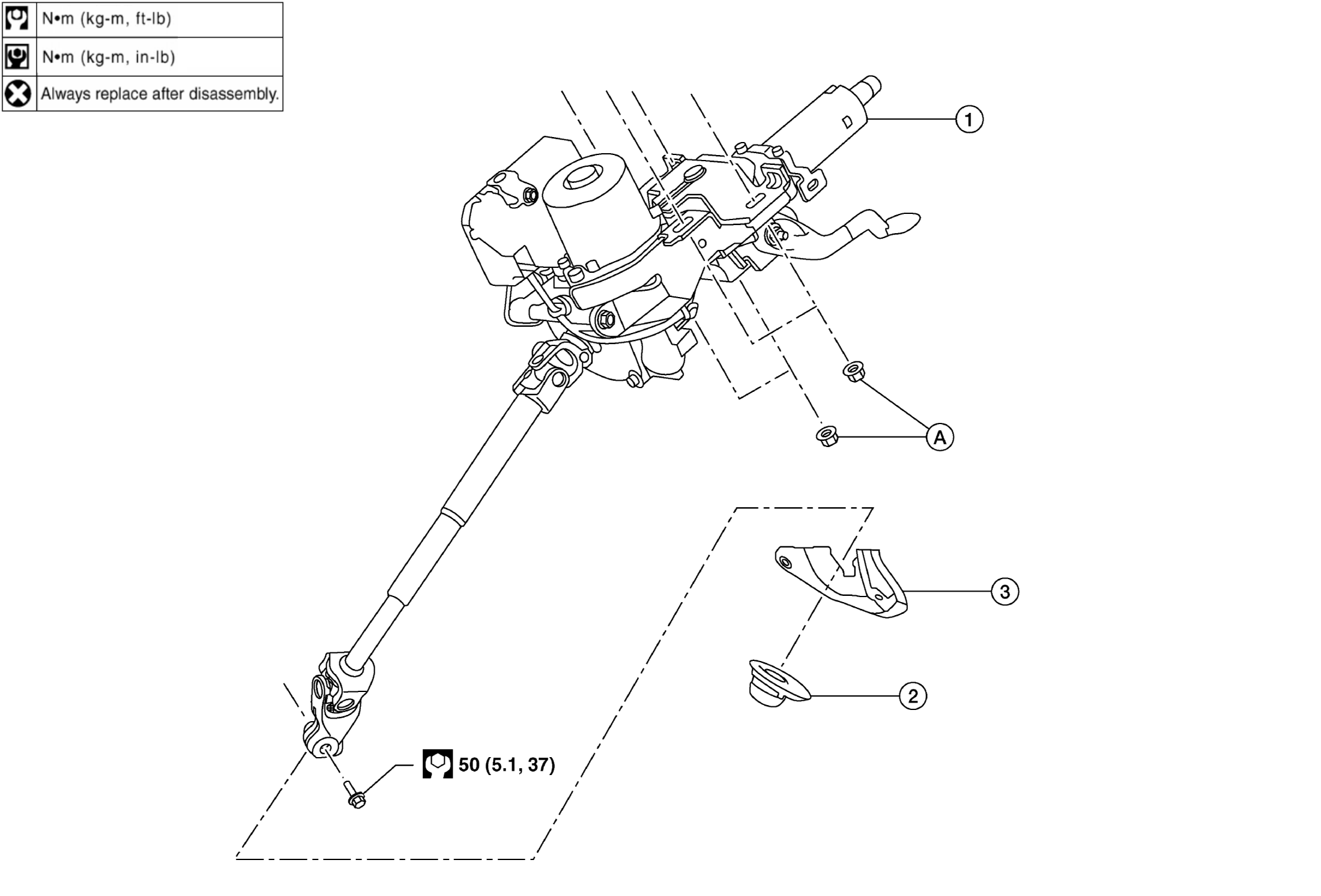

Fig 1: Exploded View Of Steering Column With Torque Specifications
GNSAWGIA0392ZZ-392Courtesy of NISSAN NORTH AMERICA, INC.
1. Steering column 2. Lower cover seal 3. Column hole cover
A. Refer to INSTALLATION
