Exploded View With Torque Specifications: Removal

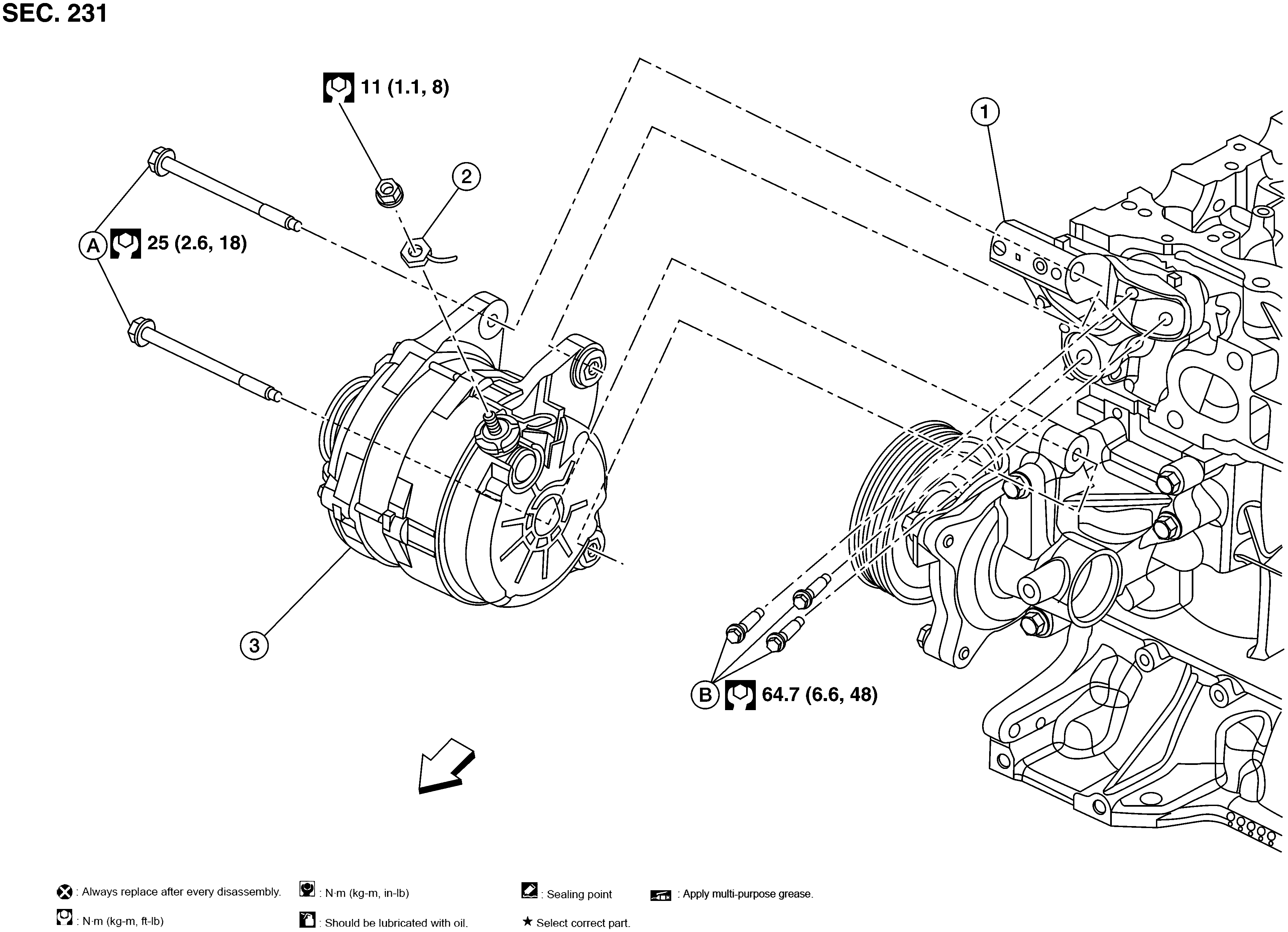

Fig 1: Exploded View Of Generator With Torque Specifications
GNSAWMIA1611ZZ-611ARROWCourtesy of NISSAN NORTH AMERICA, INC.
1. Generator bracket 2. "B" terminal harness 3. Generator
A. Refer to INSTALLATION B. Refer to INSTALLATION ARROW Front
