Exploded View With Torque Specifications

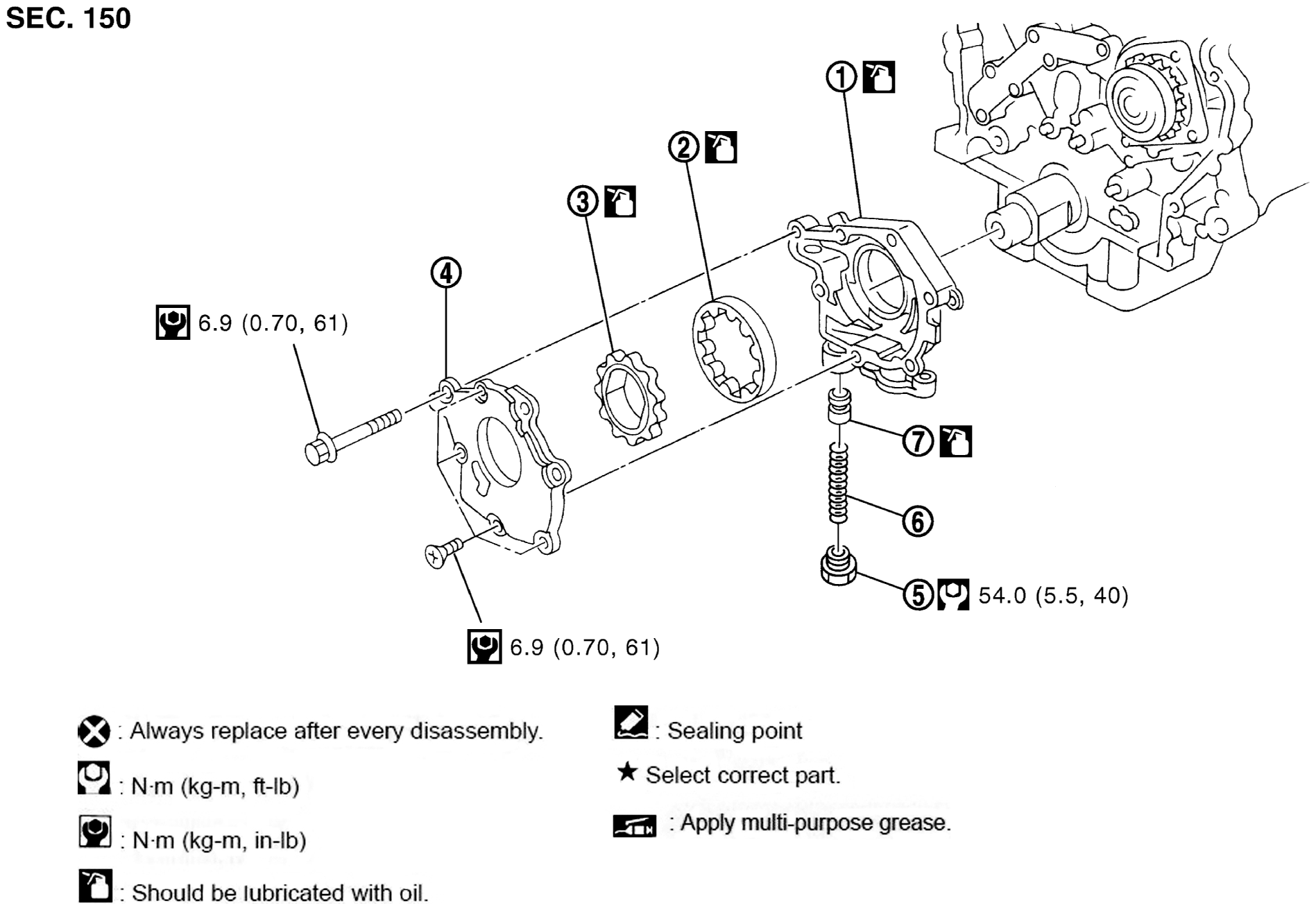

Fig 1: Oil Pump With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Oil pump body	2.	Oil pump outer rotor	3.	Oil pump inner rotor
4.	Oil pump cover	5.	Regulator valve plug	6.	Regulator valve spring
7.	Regulator valve
: N•m (kg-m, ft-lb)
: N•m (kg-m, in-lb)
: Should be lubricated with oil.
