Engine Lubrication System Schematic

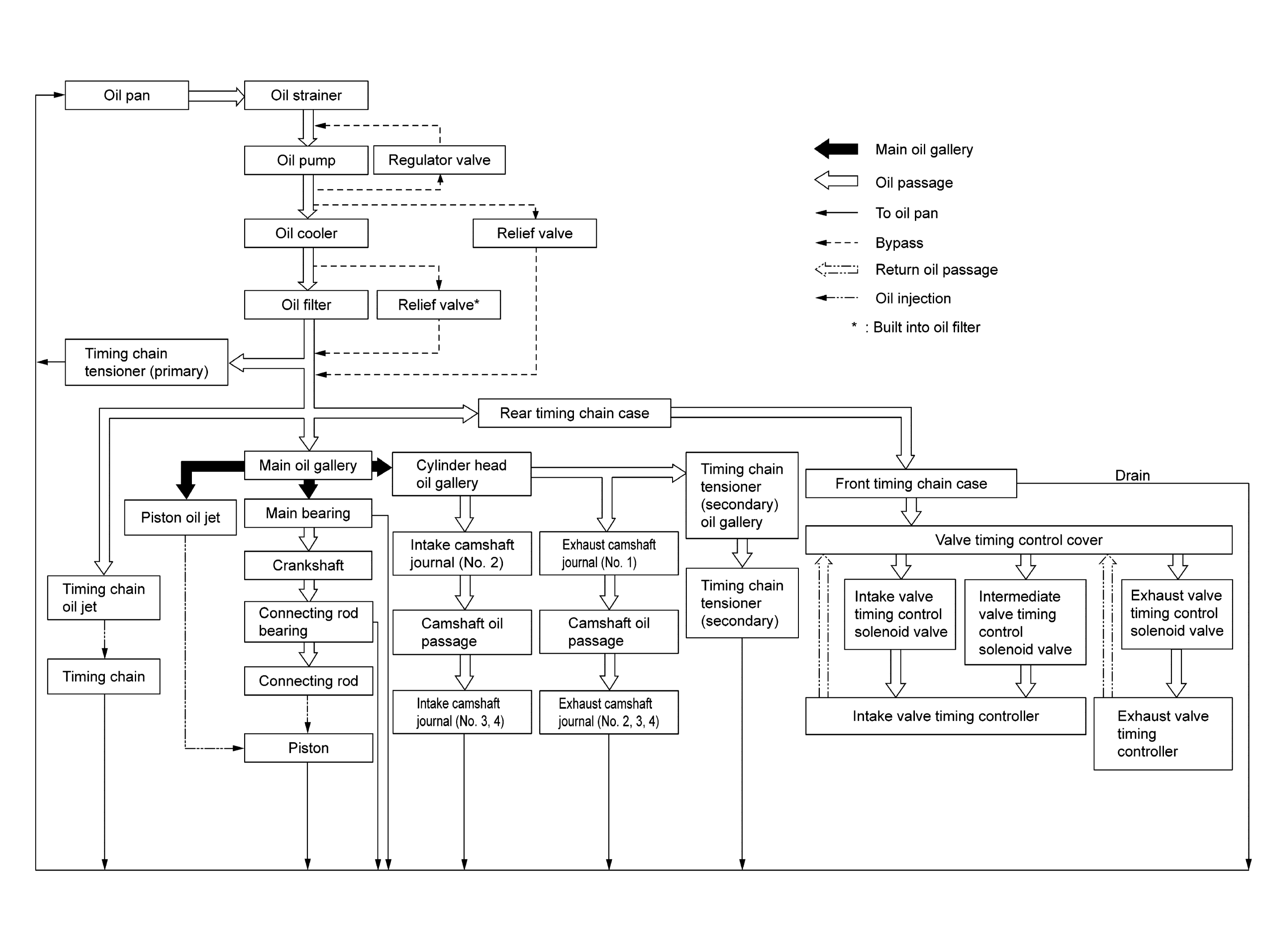

Fig 1: Engine Lubrication System Schematic

GNSJPBIA7001GB-001

Courtesy of NISSAN NORTH AMERICA, INC.
