System Diagram

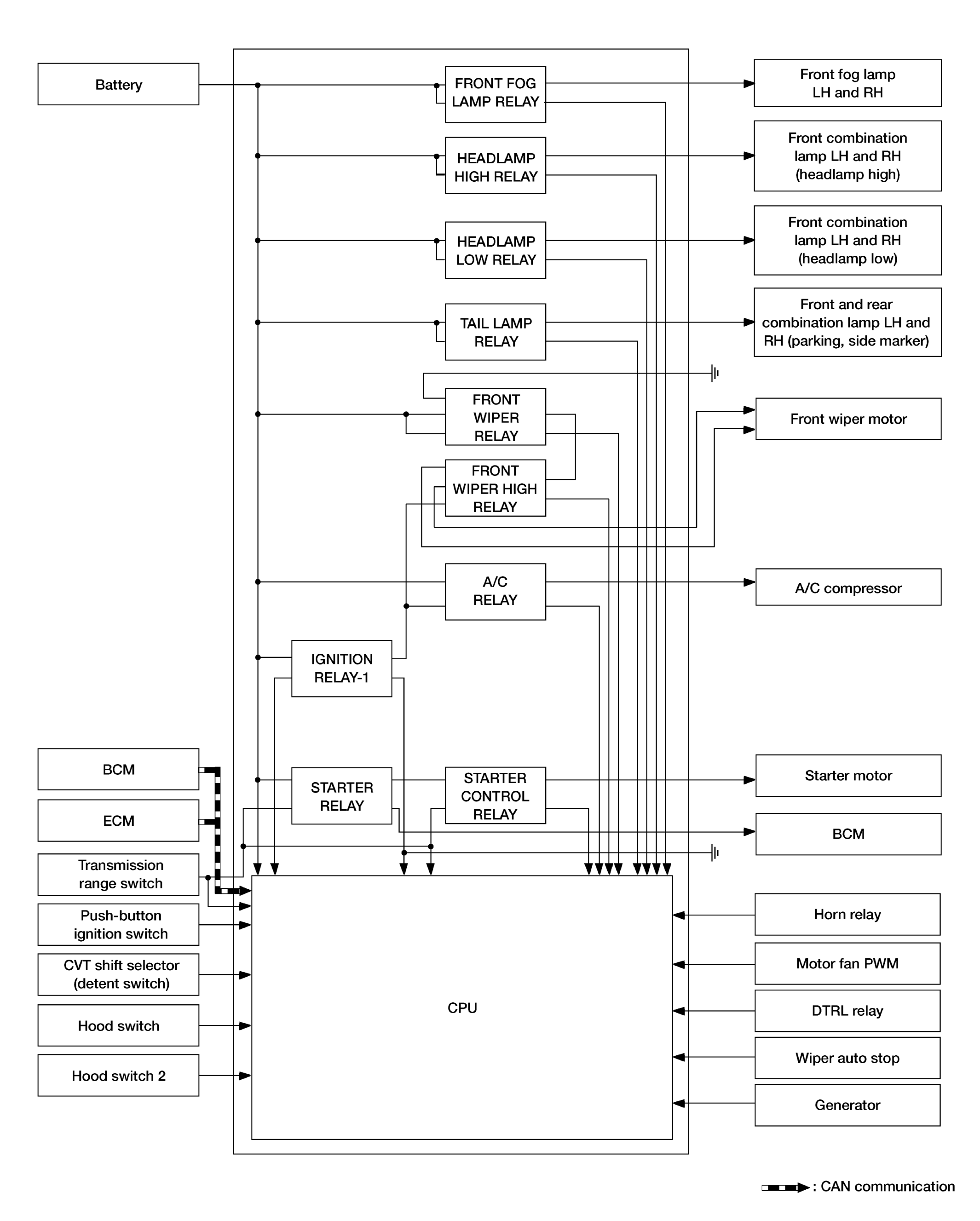

Fig 1: Relay Control System Wiring Diagram

GNSAWMIA1641GB-641

Courtesy of NISSAN NORTH AMERICA, INC.
