Engine Control System: Wiring Diagram

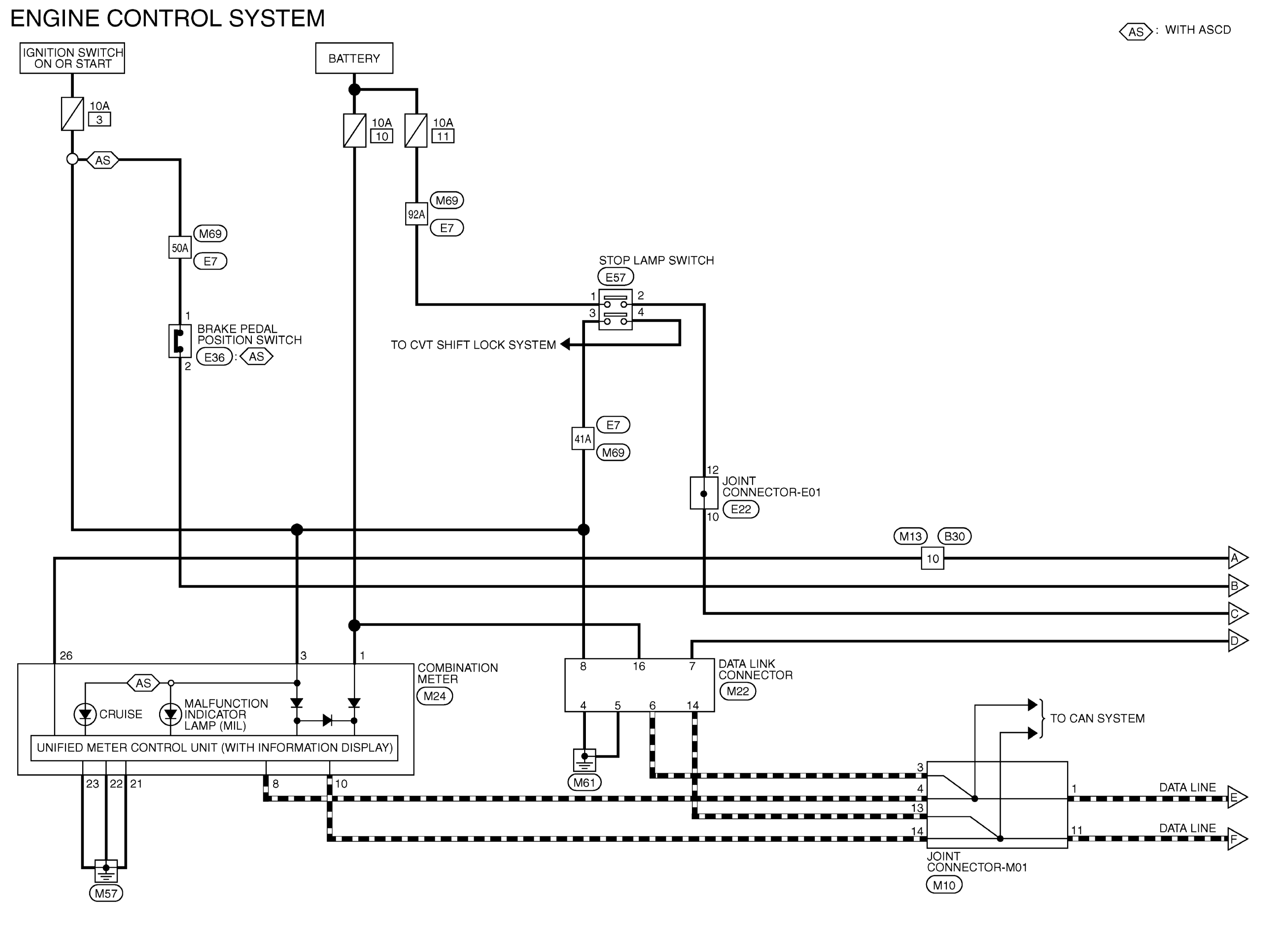

Fig 1: Engine Control System Wiring Diagram (1 Of 6

GNSABBWA1462GB-462

Courtesy of NISSAN NORTH AMERICA, INC.

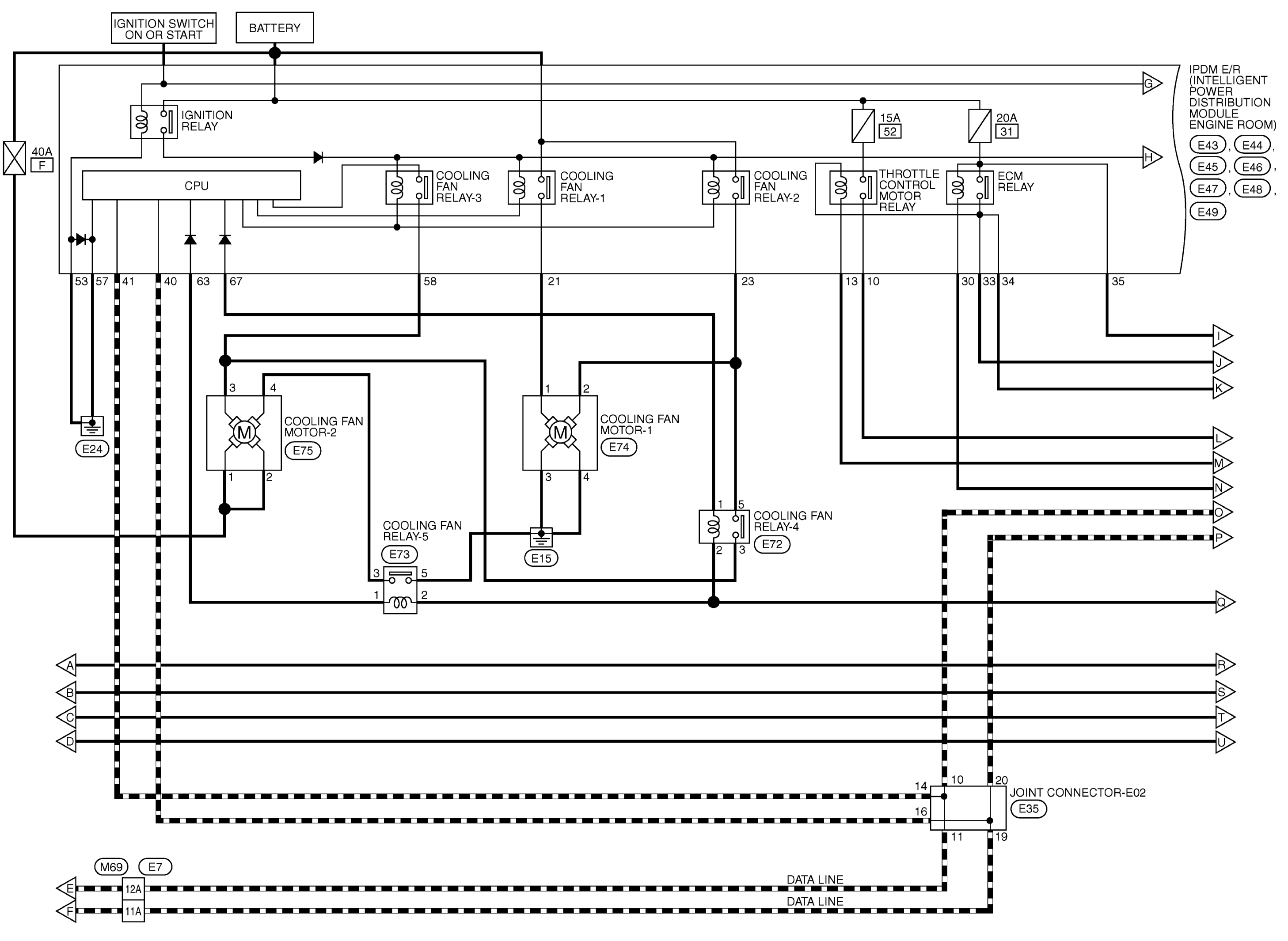

Fig 2: Engine Control System Wiring Diagram (2 Of 6

GNSABBWA1463GB-463

Courtesy of NISSAN NORTH AMERICA, INC.

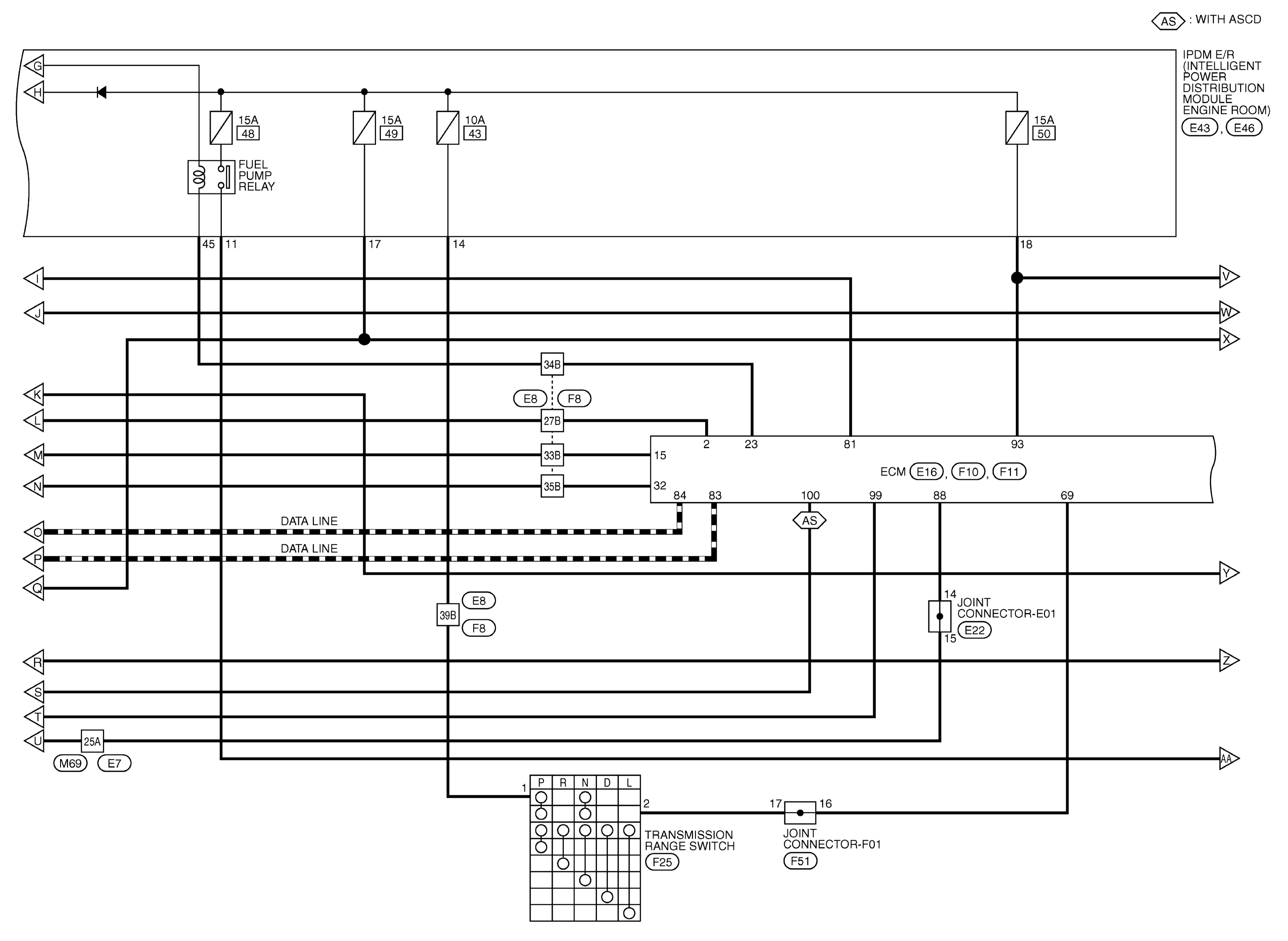

Fig 3: Engine Control System Wiring Diagram (3 Of 6

GNSABBWA1464GB-464

Courtesy of NISSAN NORTH AMERICA, INC.

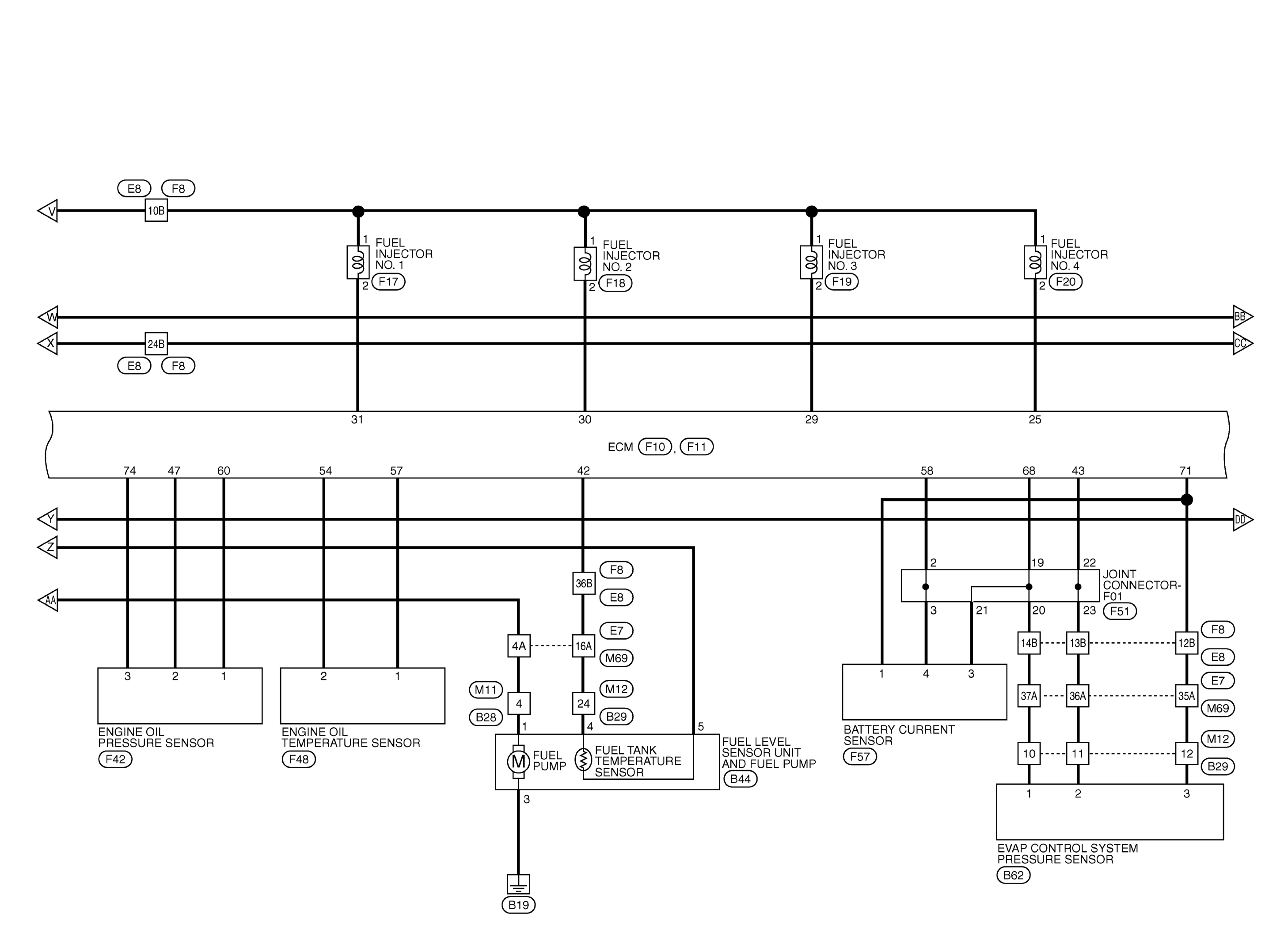

Fig 4: Engine Control System Wiring Diagram (4 Of 6

GNSABBWA1465GB-465

Courtesy of NISSAN NORTH AMERICA, INC.

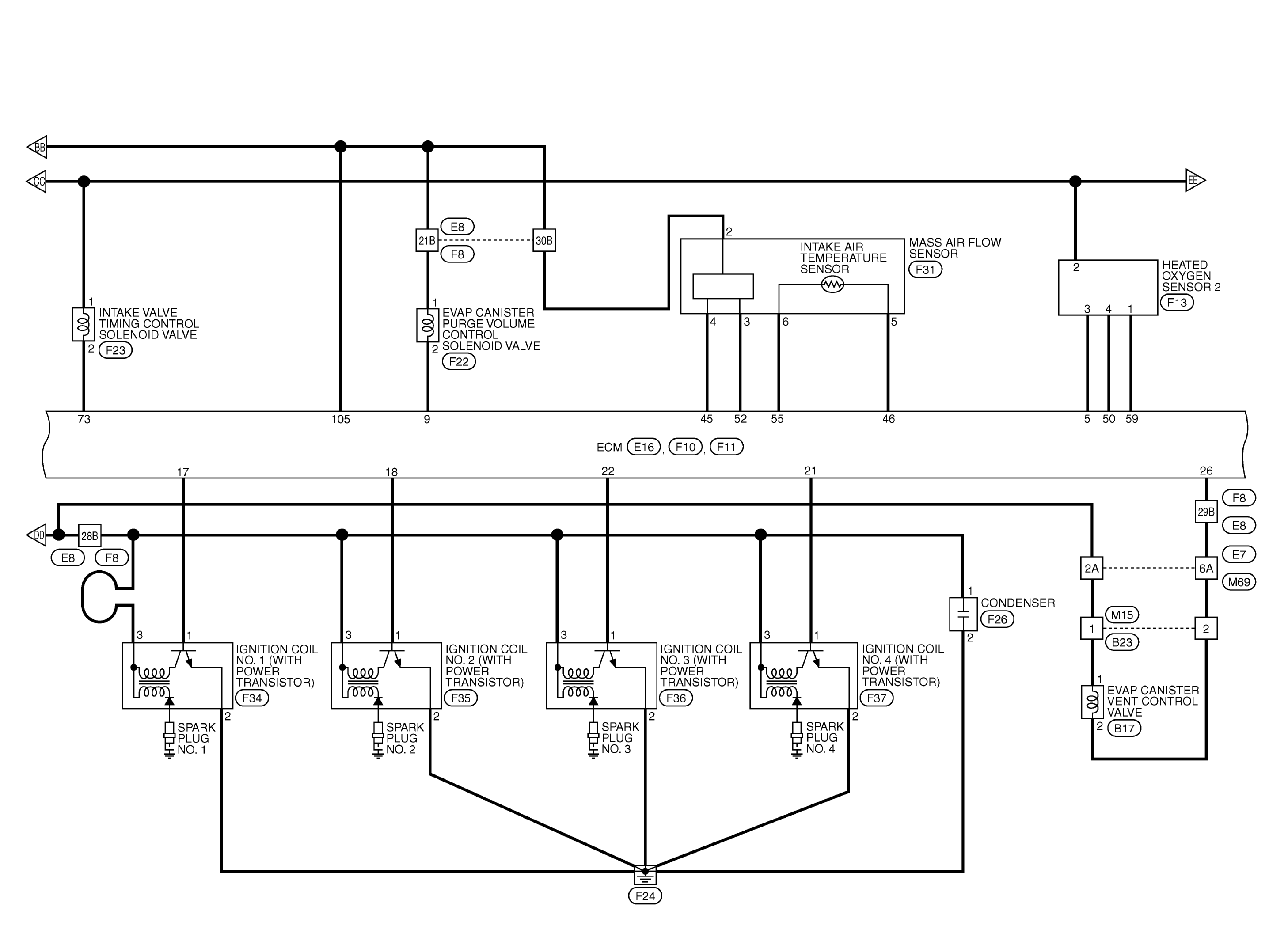

Fig 5: Engine Control System Wiring Diagram (5 Of 6

GNSABBWA1466GB-466

Courtesy of NISSAN NORTH AMERICA, INC.

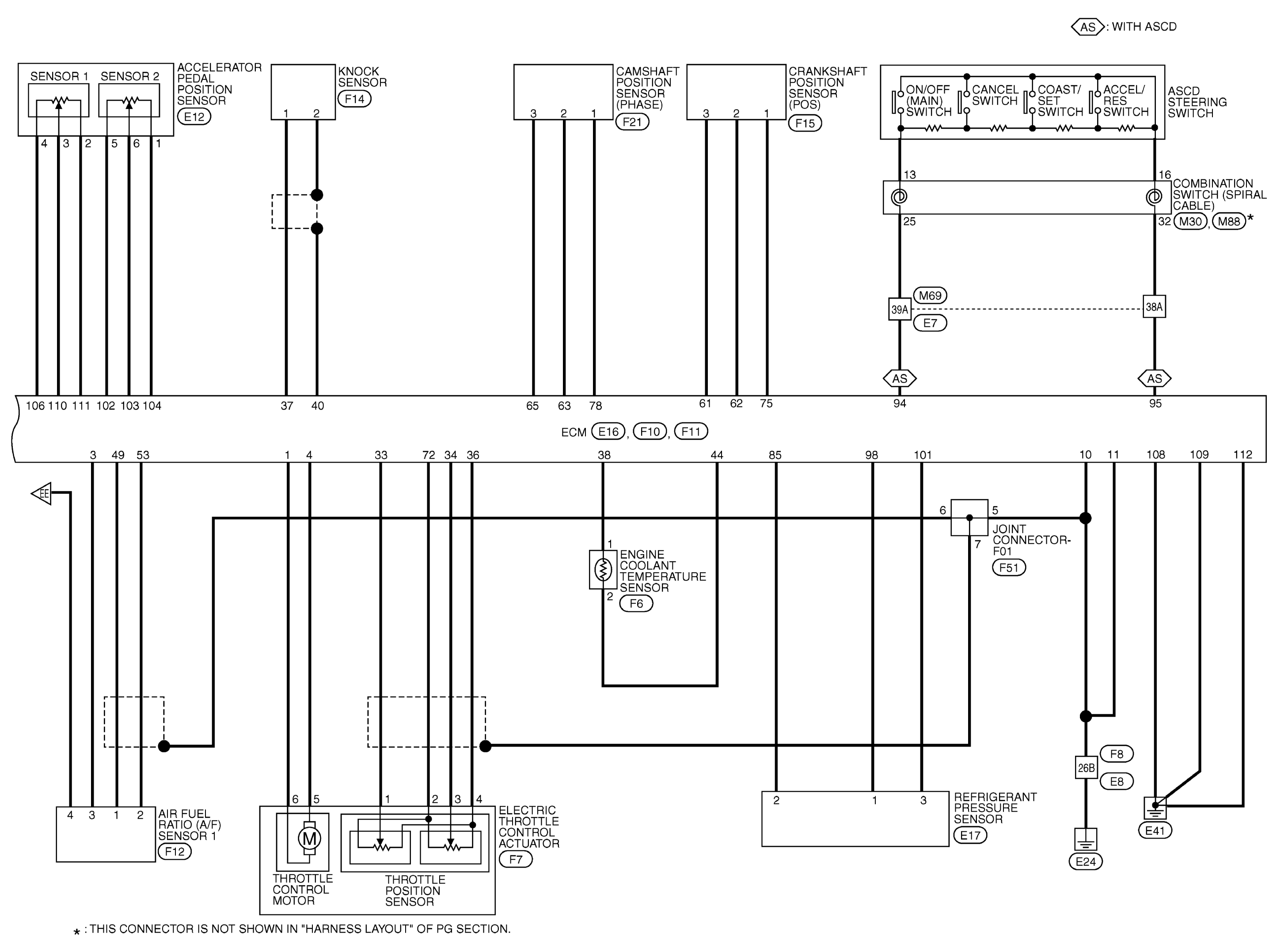

Fig 6: Engine Control System Wiring Diagram (6 Of 6

GNSABBWA1467GB-467

Courtesy of NISSAN NORTH AMERICA, INC.

Fig 7: Engine Control System Connectors (1 Of 14)

G08983771

Courtesy of NISSAN NORTH AMERICA, INC.

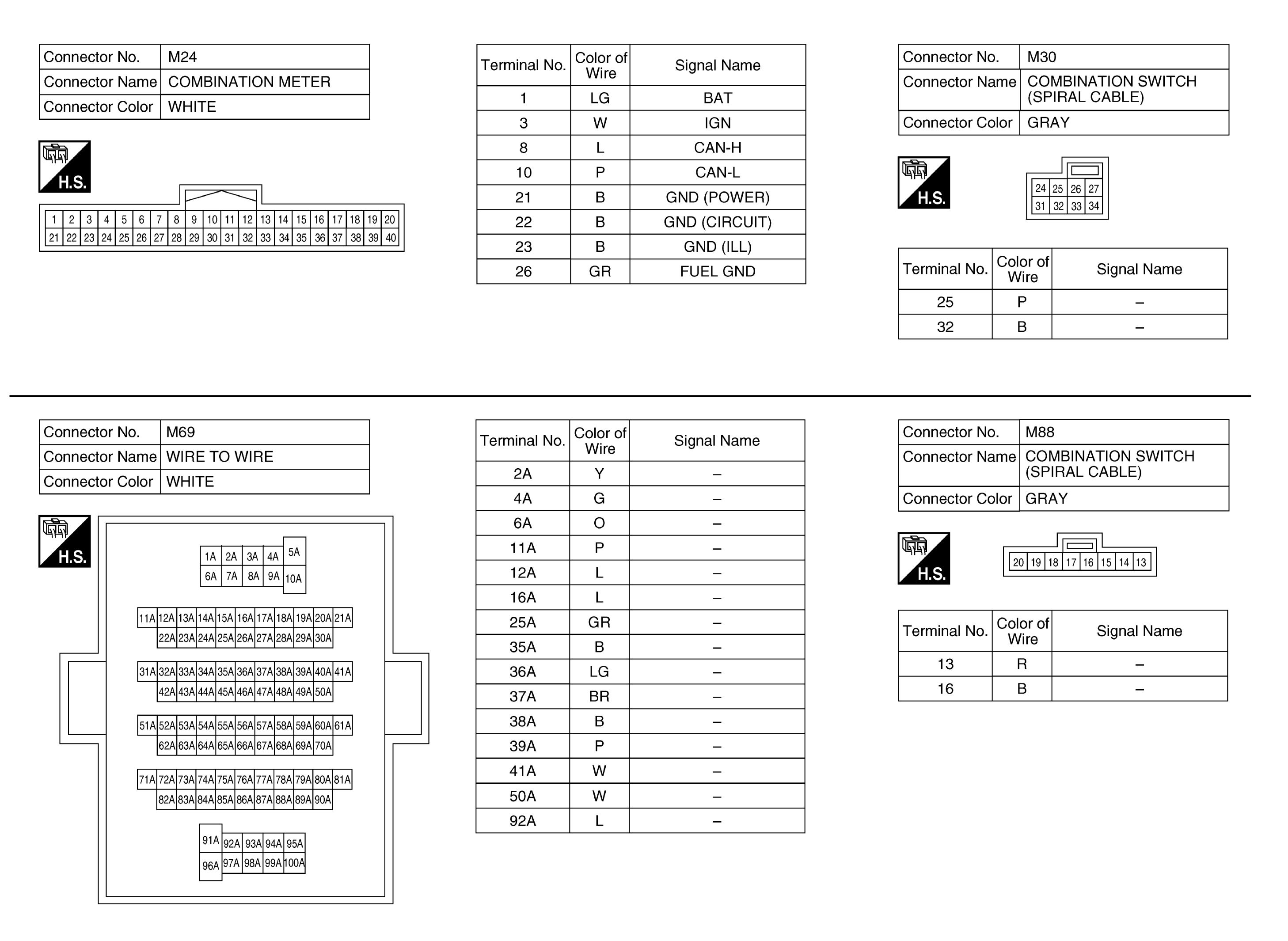

Fig 8: Engine Control System Connectors (2 Of 14)

GNSABBIA2682GB-682

Courtesy of NISSAN NORTH AMERICA, INC.

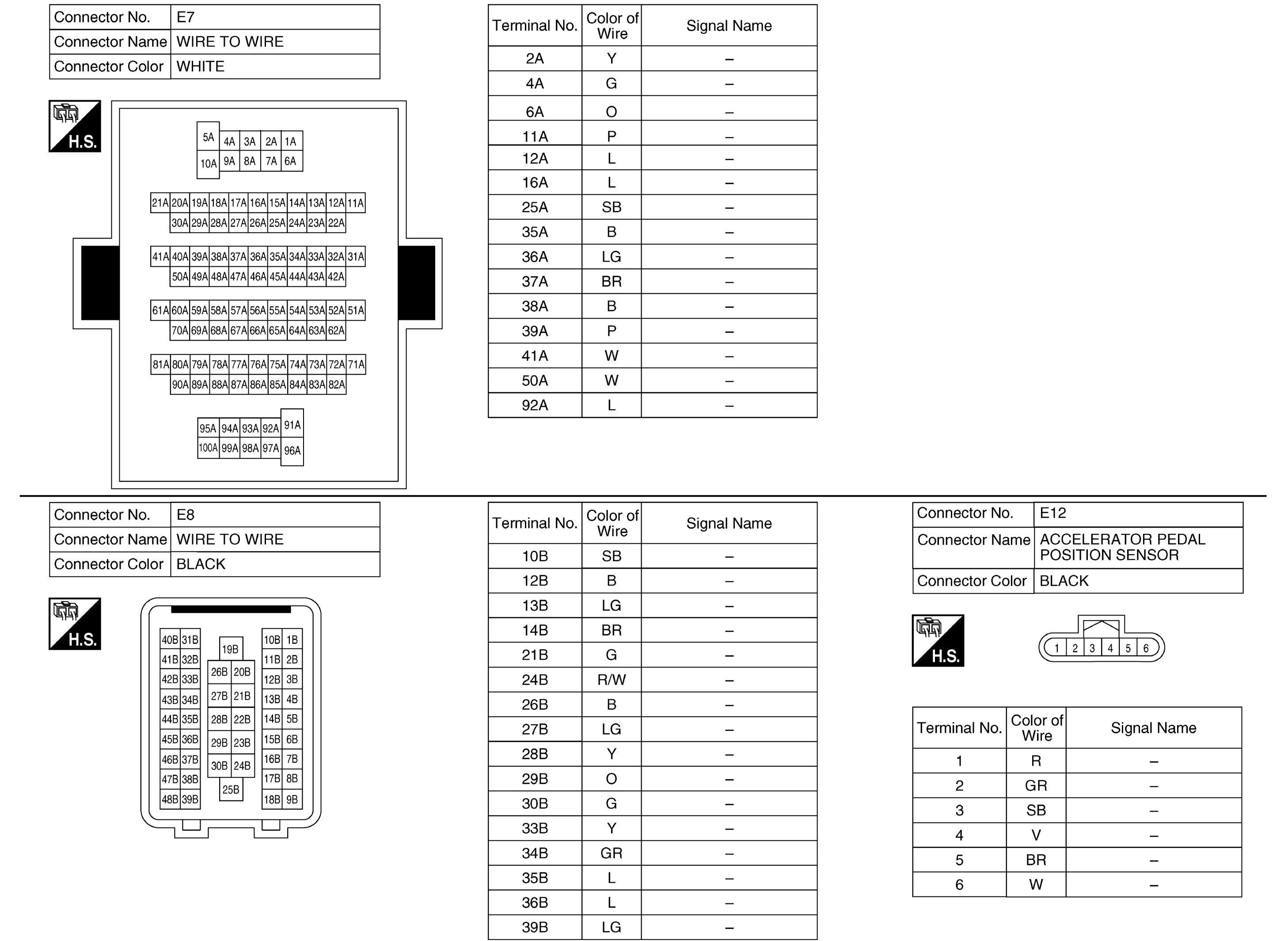

Fig 9: Engine Control System Connectors (3 Of 14)

GNSABBIA2683GB-683

Courtesy of NISSAN NORTH AMERICA, INC.

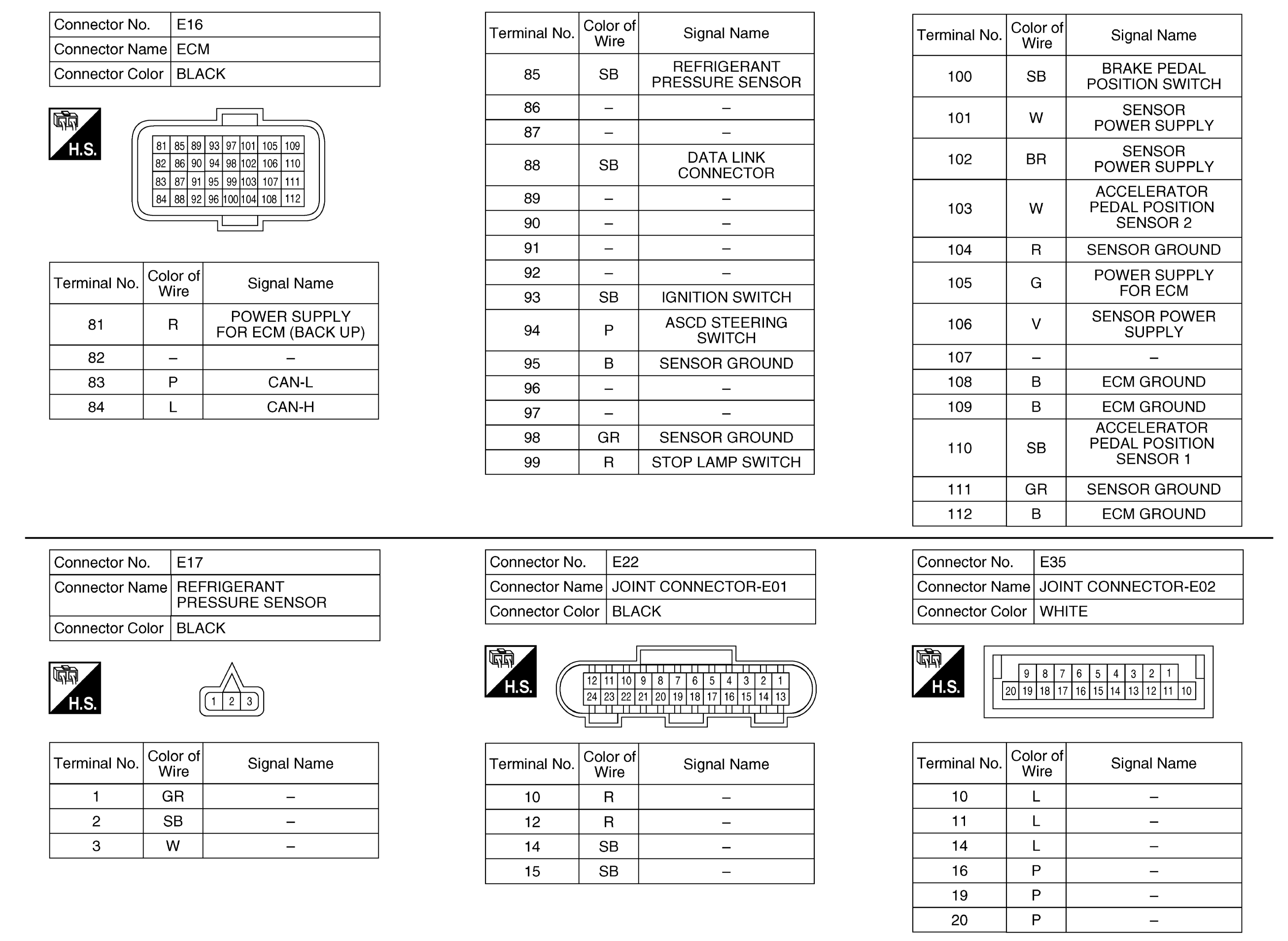

Fig 10: Engine Control System Connectors (4 Of 14)

GNSABBIA2694GB-694

Courtesy of NISSAN NORTH AMERICA, INC.

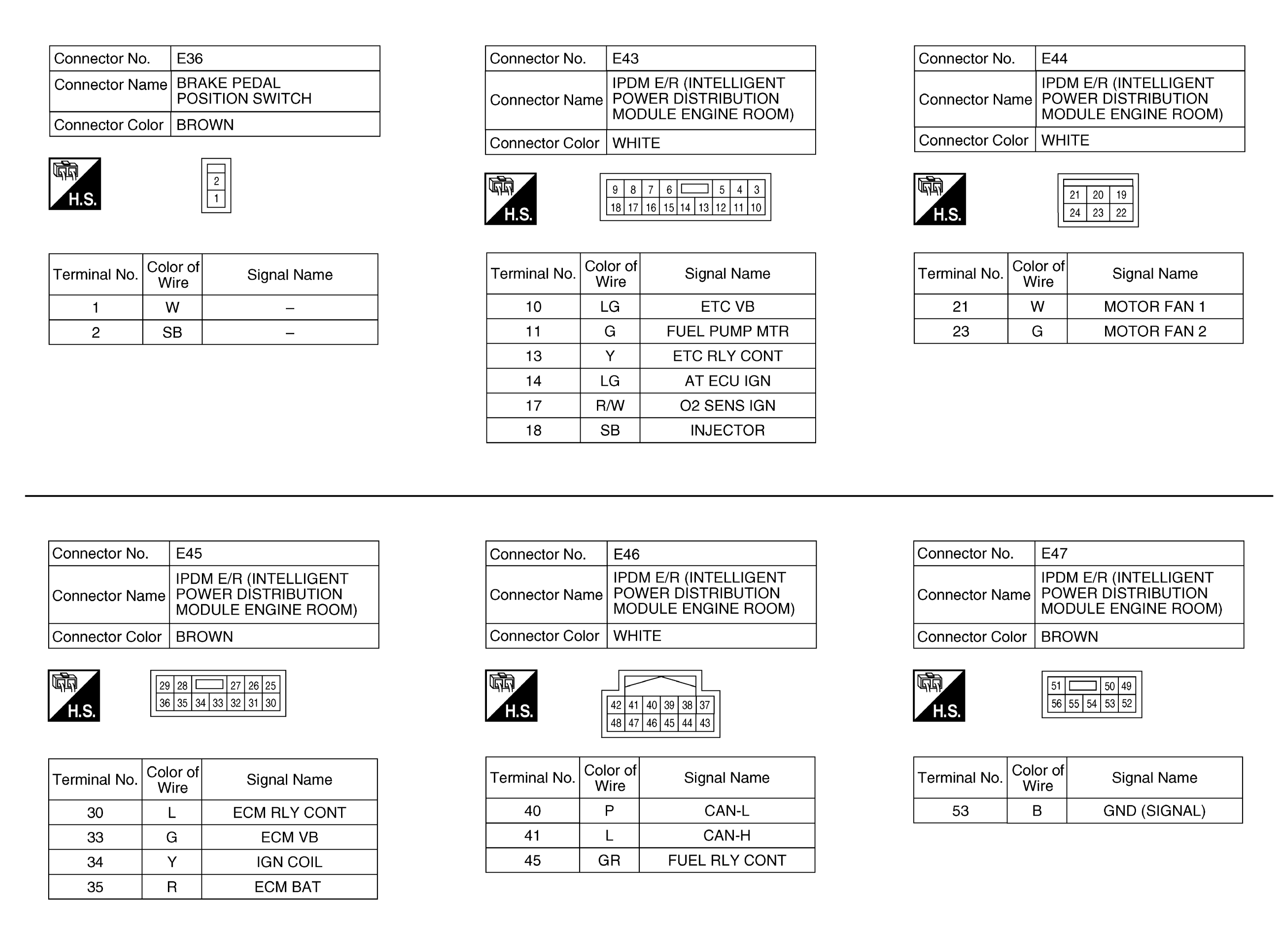

Fig 11: Engine Control System Connectors (5 Of 14)

GNSABBIA2684GB-684

Courtesy of NISSAN NORTH AMERICA, INC.

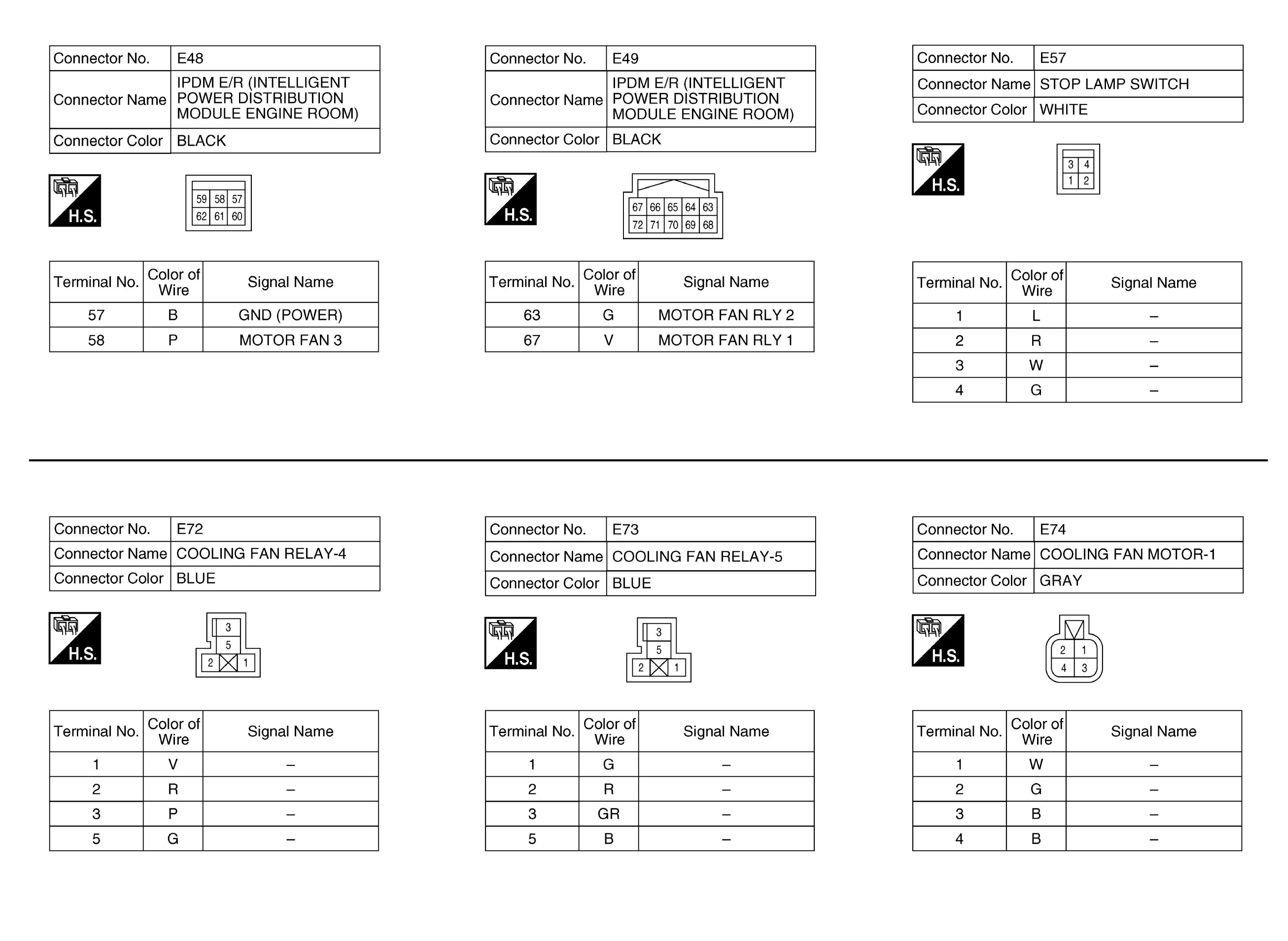

Fig 12: Engine Control System Connectors (6 Of 14)

GNSABBIA2685GB-685

Courtesy of NISSAN NORTH AMERICA, INC.

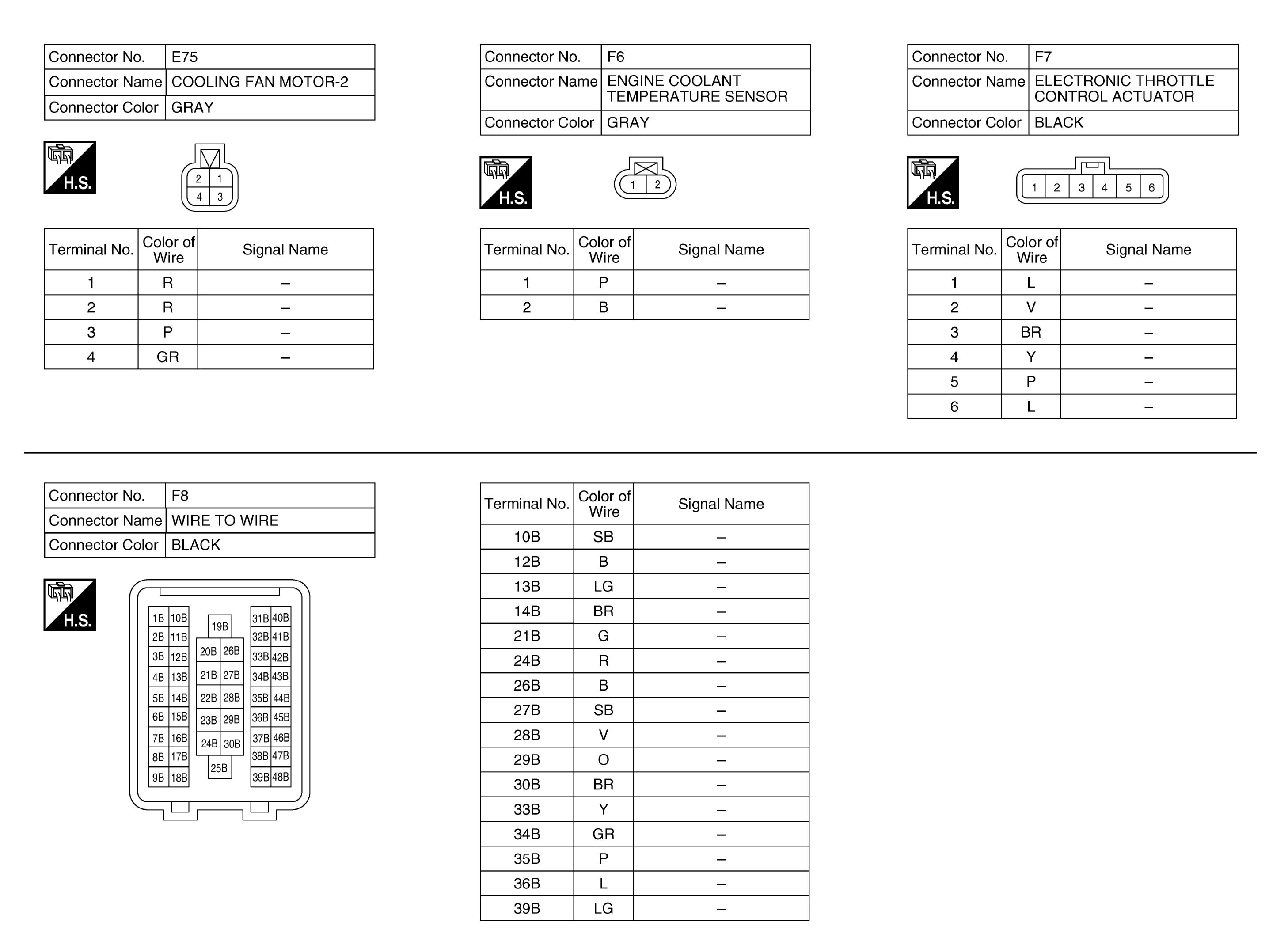

Fig 13: Engine Control System Connectors (7 Of 14)

GNSABBIA2686GB-686

Courtesy of NISSAN NORTH AMERICA, INC.

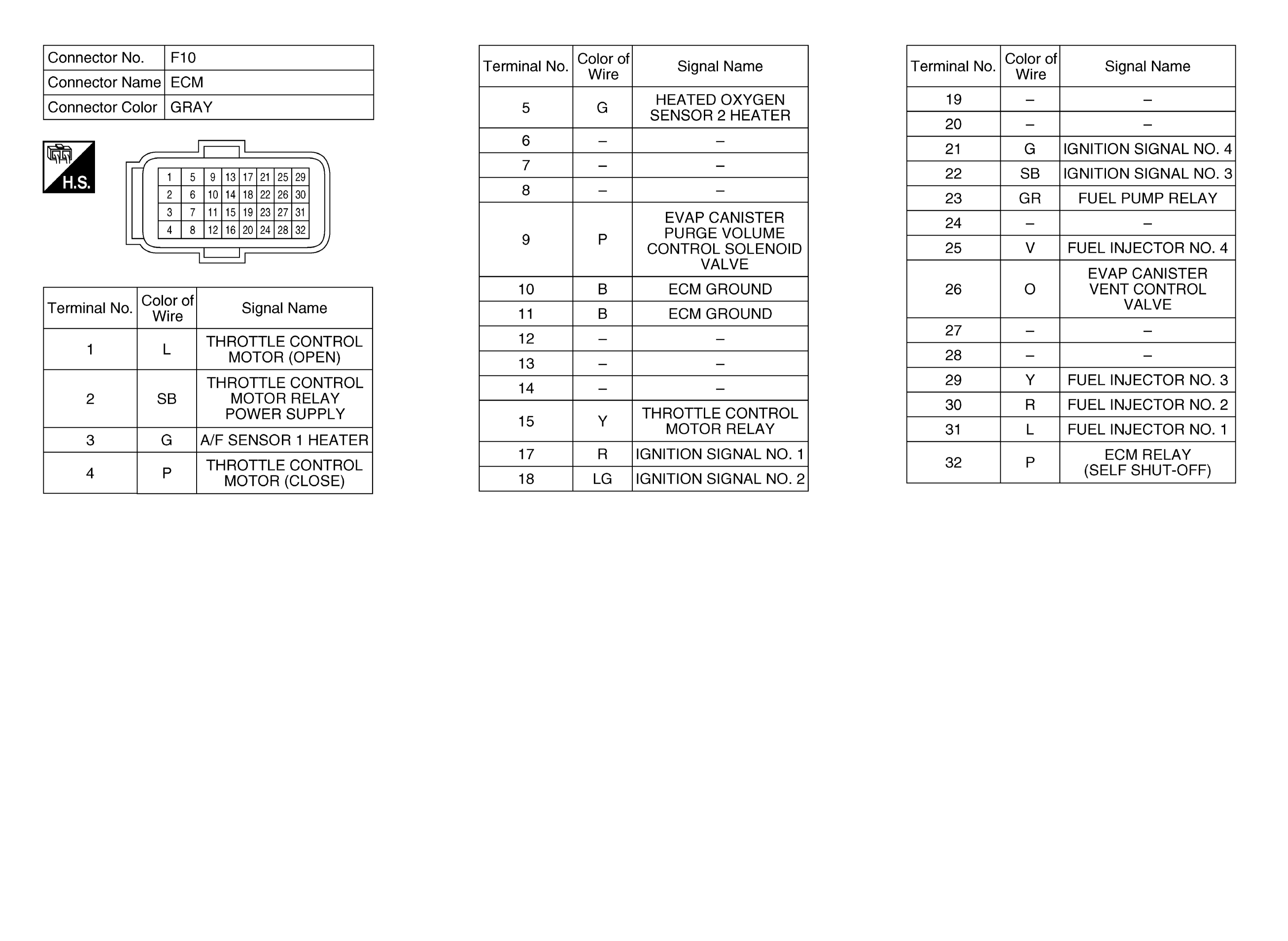

Fig 14: Engine Control System Connectors (8 Of 14)

GNSABBIA2687GB-687

Courtesy of NISSAN NORTH AMERICA, INC.

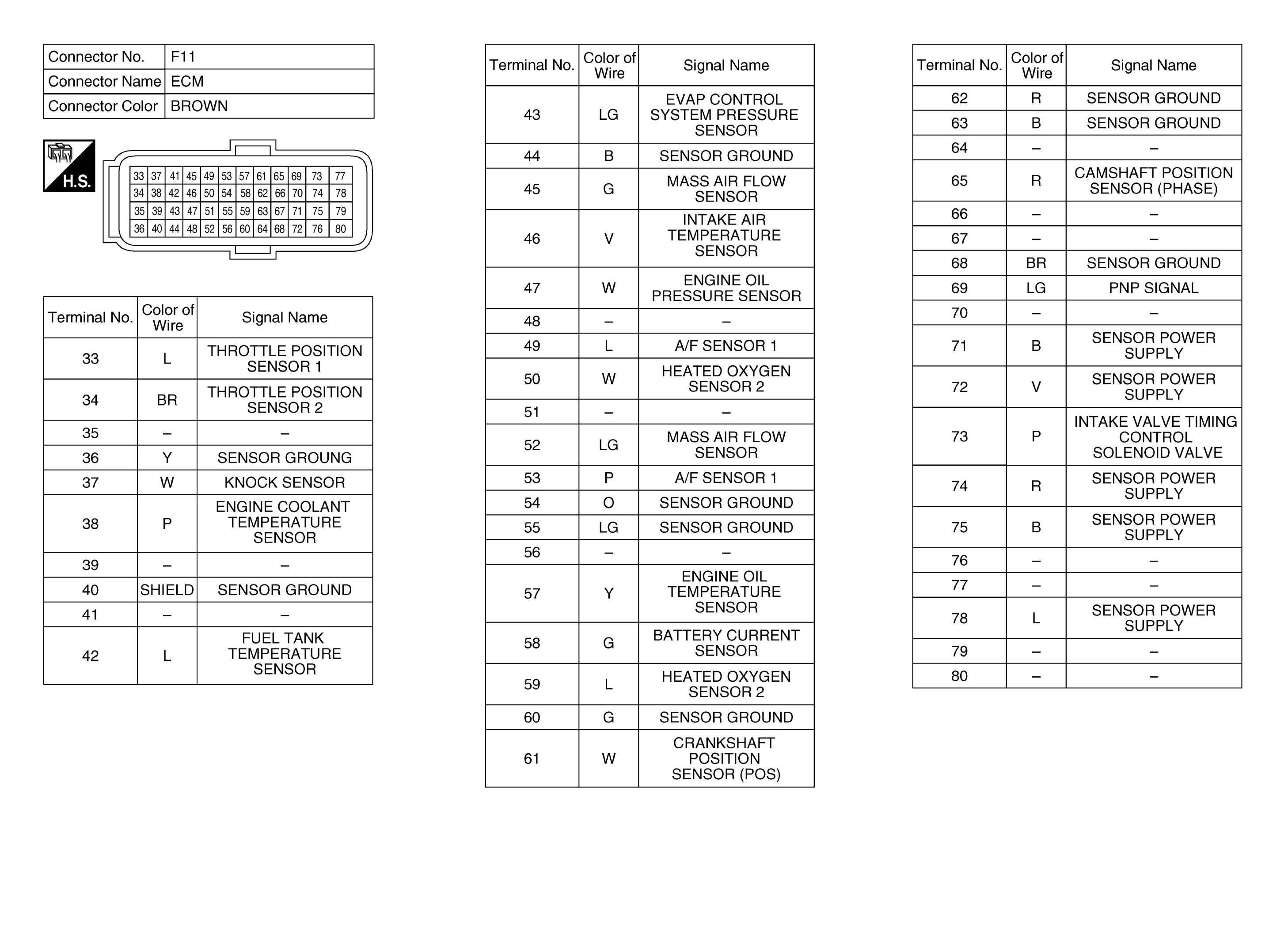

Fig 15: Engine Control System Connectors (9 Of 14)

GNSABBIA2688GB-688

Courtesy of NISSAN NORTH AMERICA, INC.

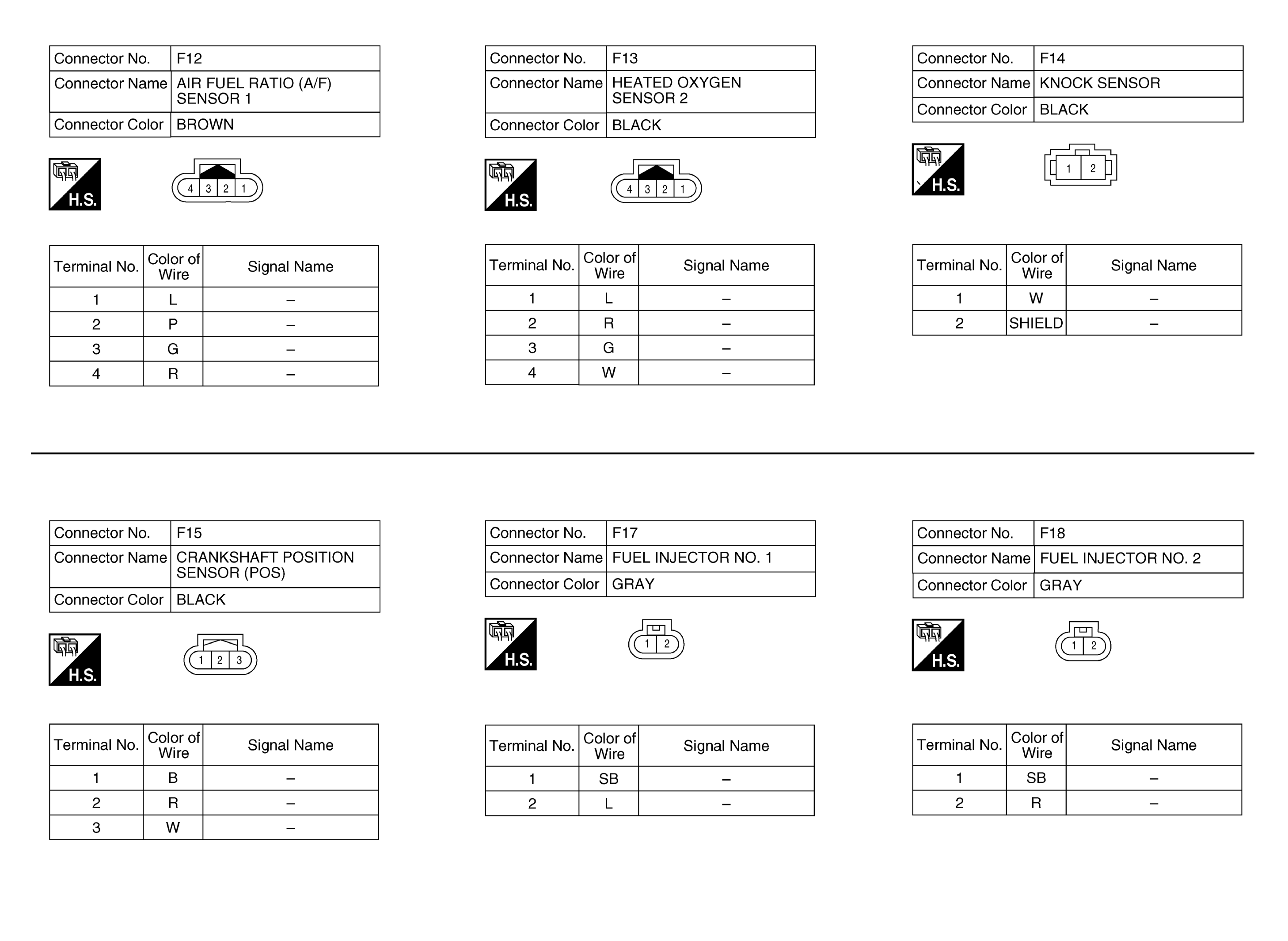

Fig 16: Engine Control System Connectors (10 Of 14)

GNSABBIA2689GB-689

Courtesy of NISSAN NORTH AMERICA, INC.

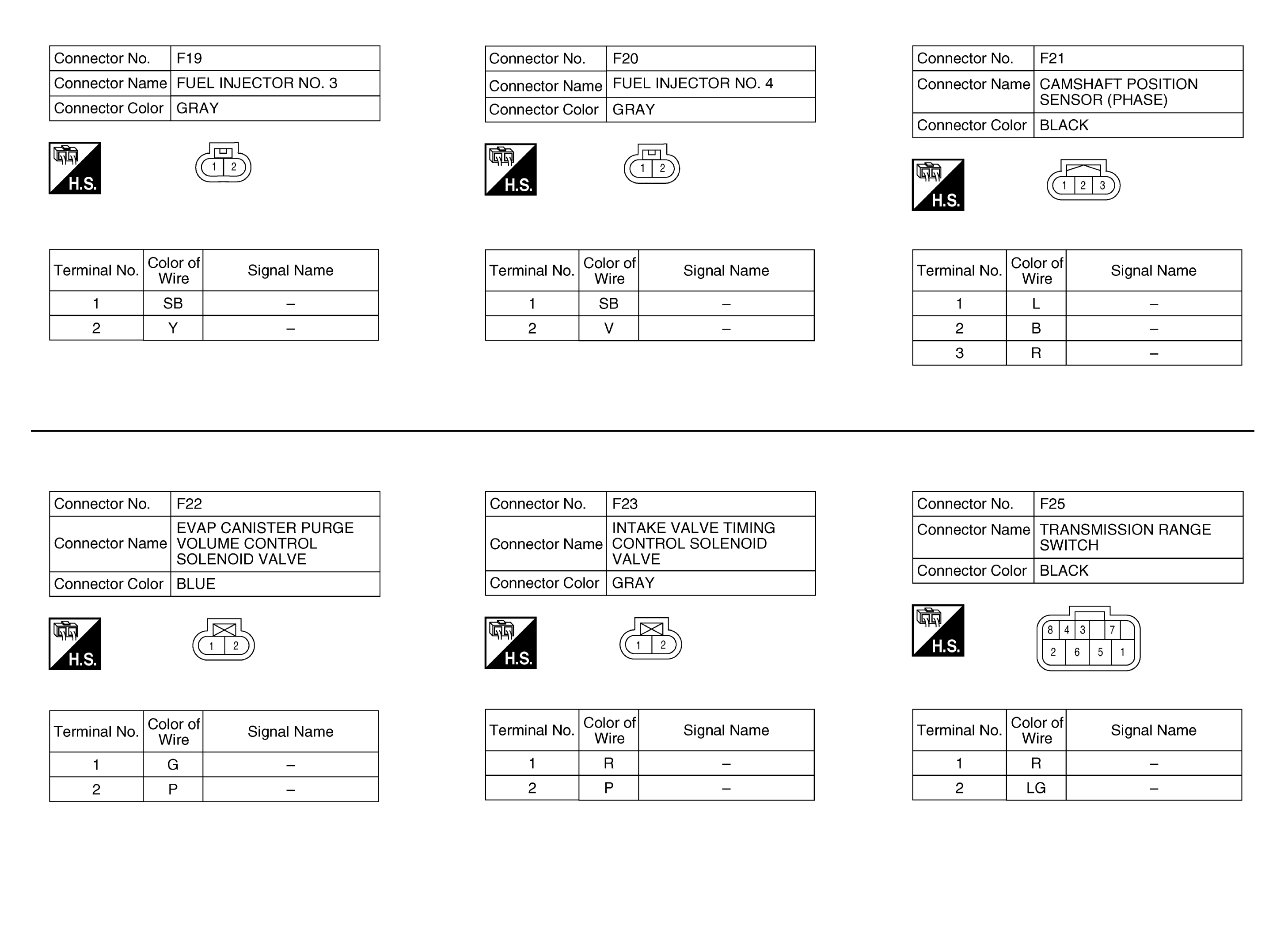

Fig 17: Engine Control System Connectors (11 Of 14)

GNSABBIA2690GB-690

Courtesy of NISSAN NORTH AMERICA, INC.

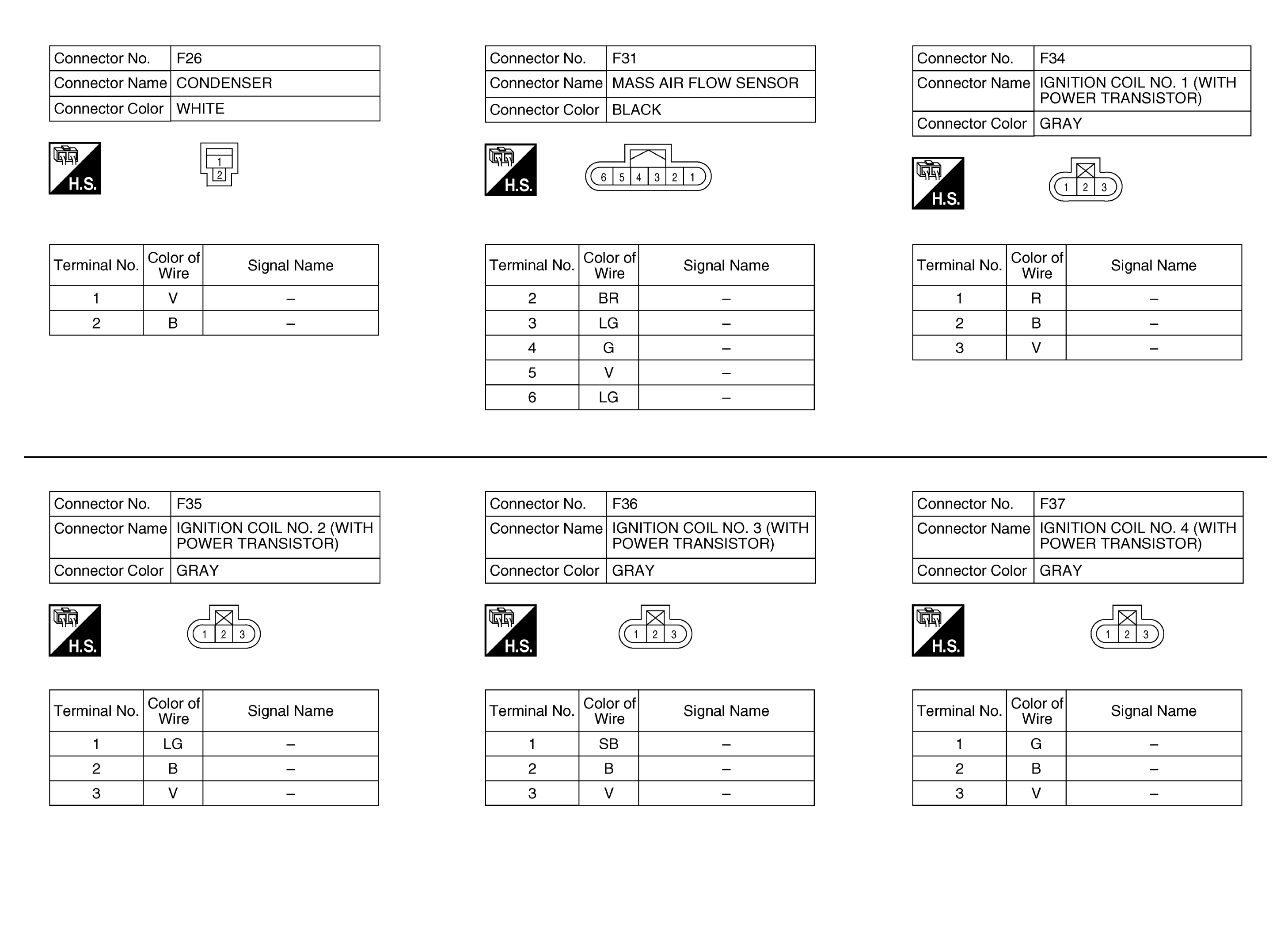

Fig 18: Engine Control System Connectors (12 Of 14)

GNSABBIA2691GB-691

Courtesy of NISSAN NORTH AMERICA, INC.

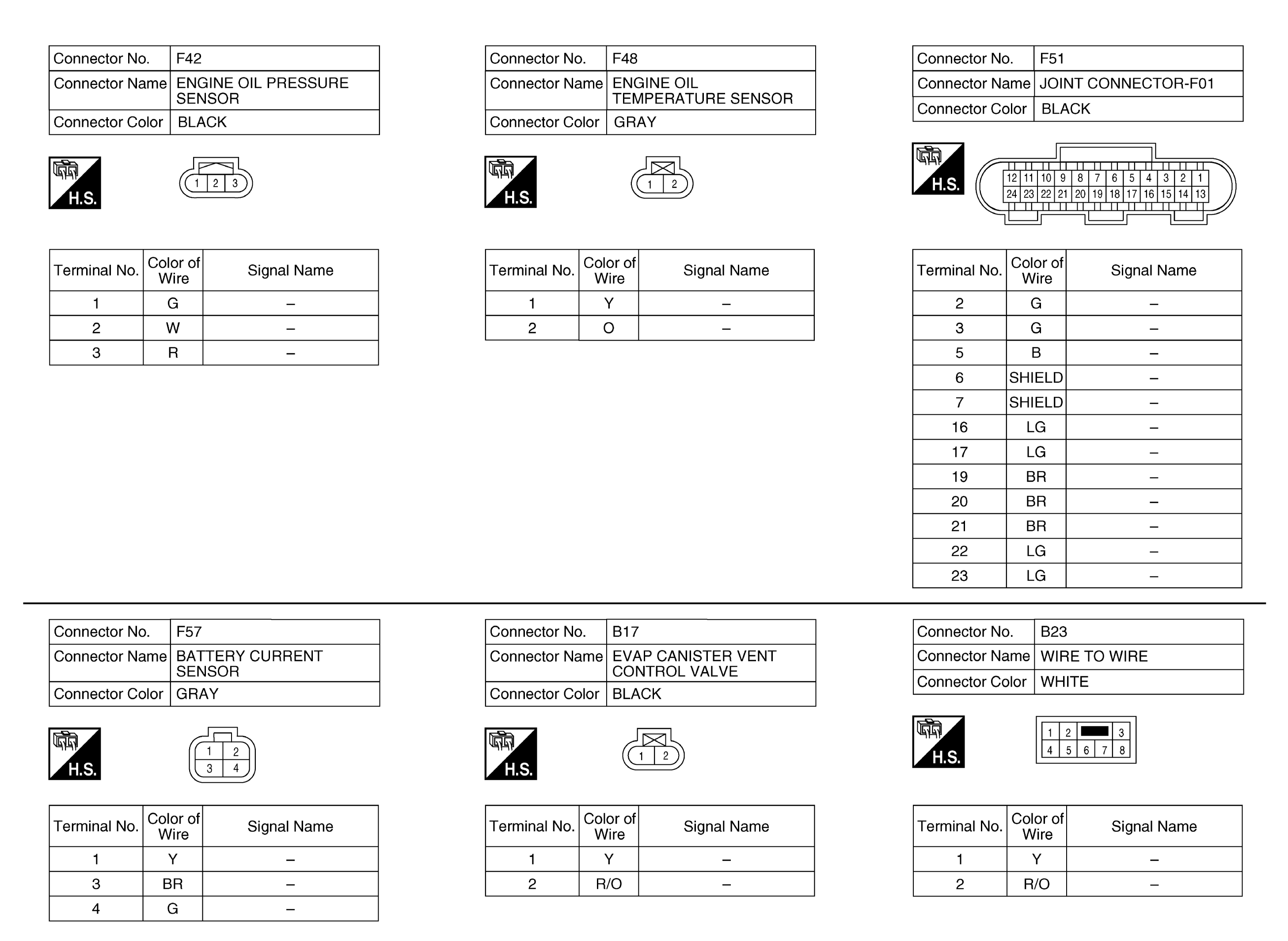

Fig 19: Engine Control System Connectors (13 Of 14)

GNSABBIA2692GB-692

Courtesy of NISSAN NORTH AMERICA, INC.

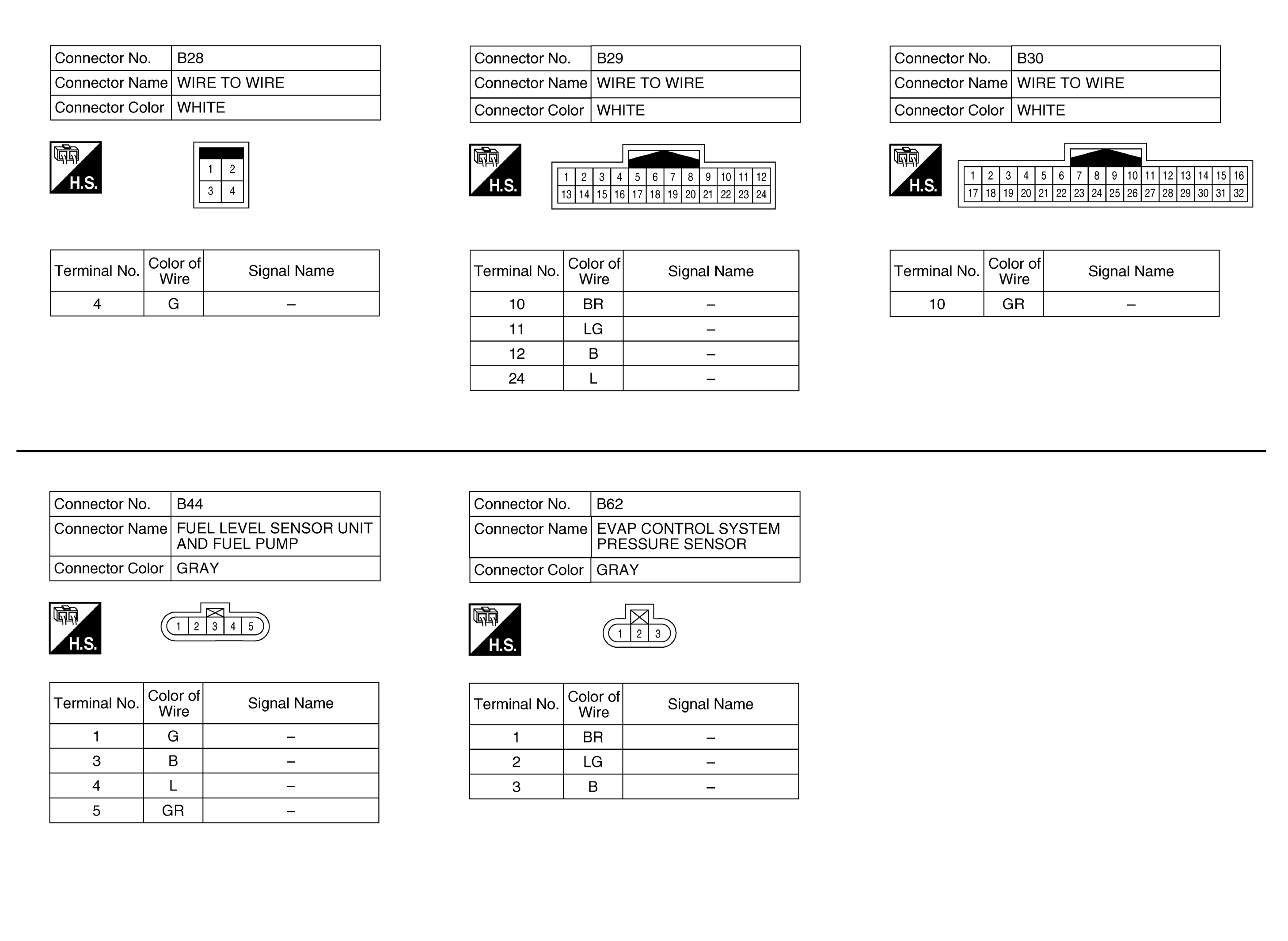

Fig 20: Engine Control System Connectors (14 Of 14)

GNSABBIA2693GB-693

Courtesy of NISSAN NORTH AMERICA, INC.
