Exploded View

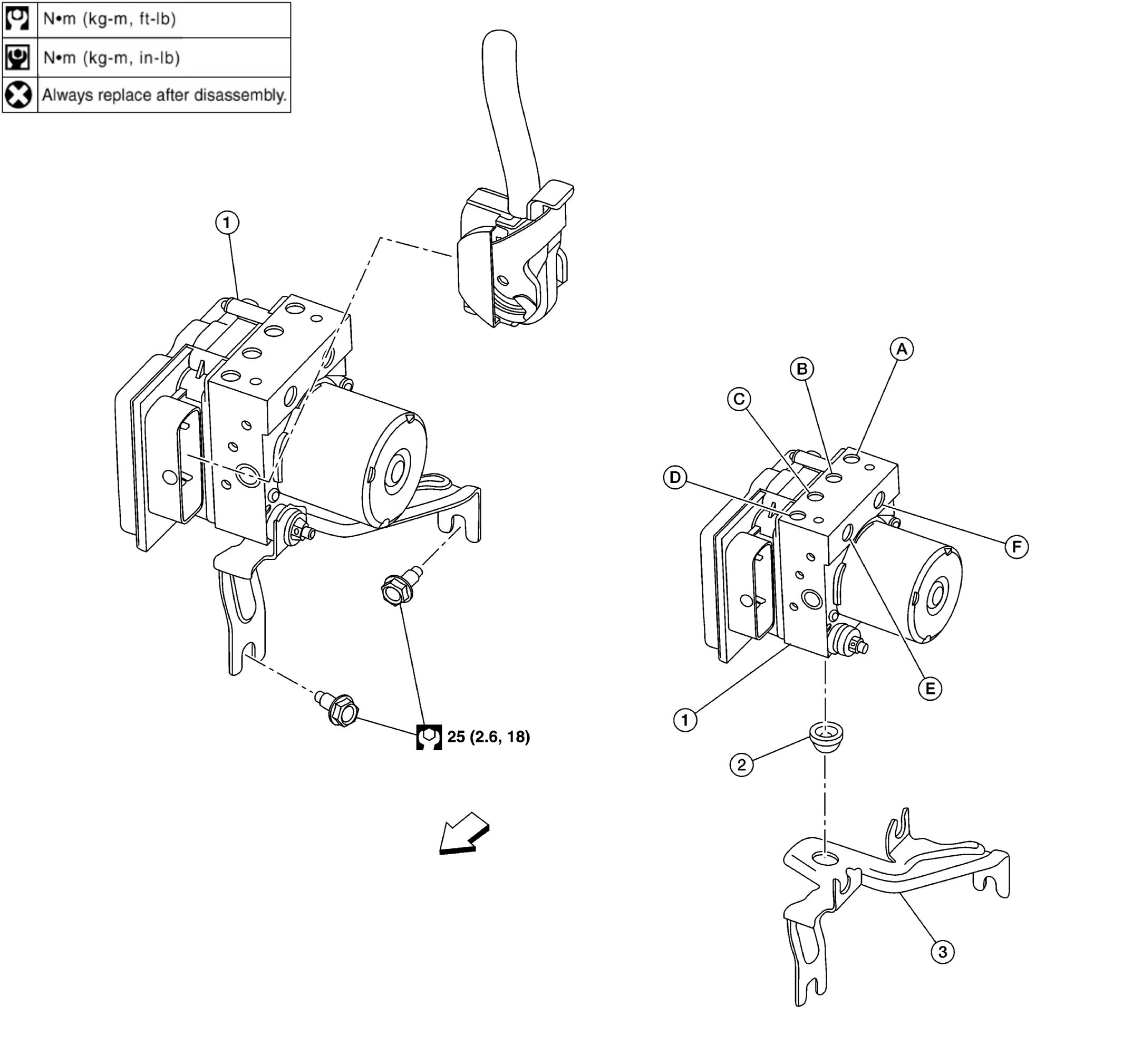

Fig 1: Exploded View Of ABS Actuator And Electric Unit (Control Unit) With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	ABS actuator and electric unit (control unit)	2.	Bushing	3.	Bracket
A.	To front brake caliper (LH)	B.	To rear wheel cylinder (RH)	C.	To rear wheel cylinder (LH)
D.	To front brake caliper (RH)	E.	To master cylinder secondary side	F.	To master cylinder primary side
	Front
