Exploded View

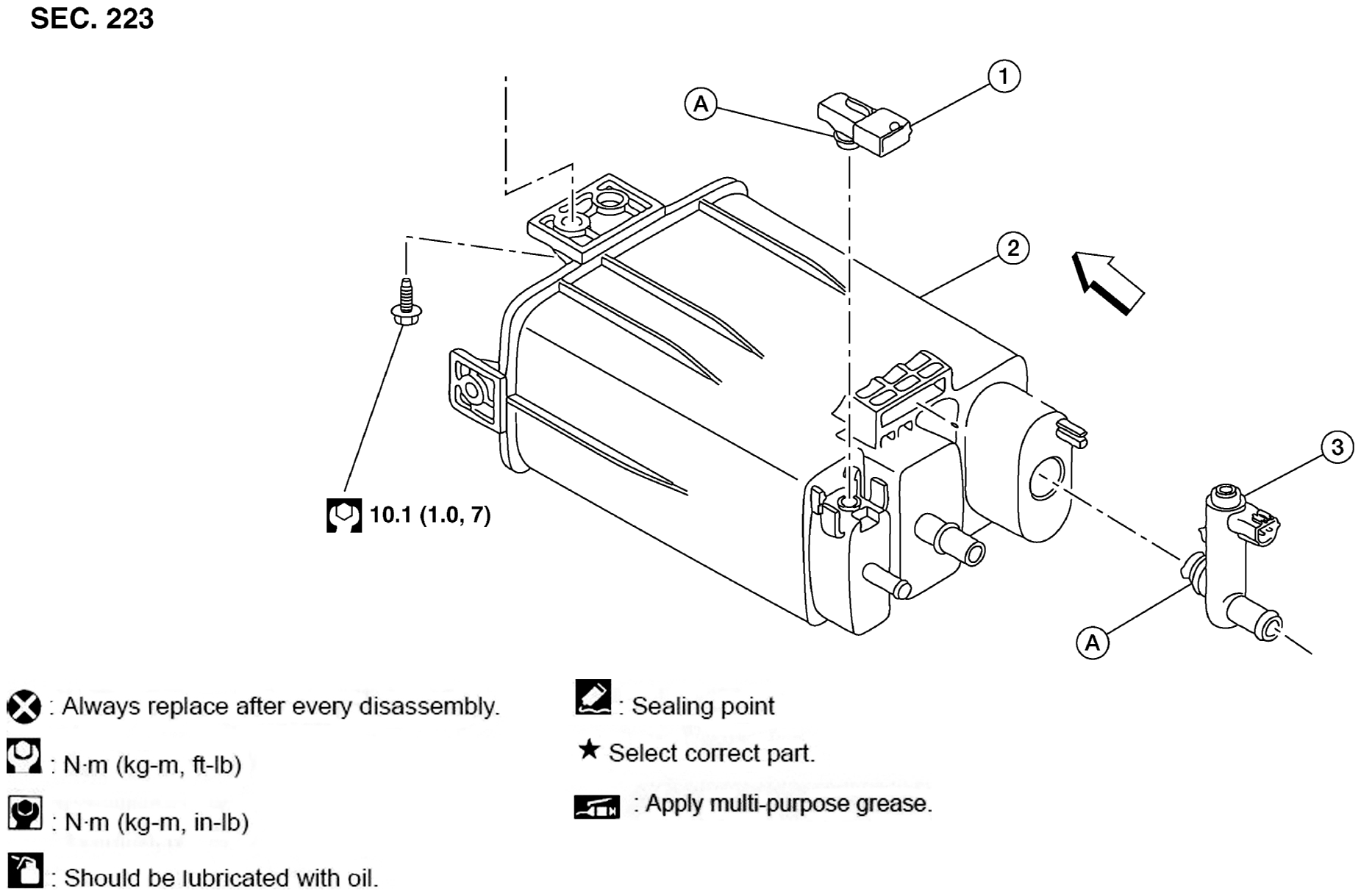

Fig 1: Exploded View Of EVAP Canister Vent Control Valve And Pressure Sensor With Torque Specifications
GNSAWBIA2776ZZ-776Courtesy of NISSAN NORTH AMERICA, INC.
1. EVAP canister control pressure sensor 2. EVAP canister 3. EVAP canister vent control valve
A. O-ring ARROW Front
