Component Parts Location

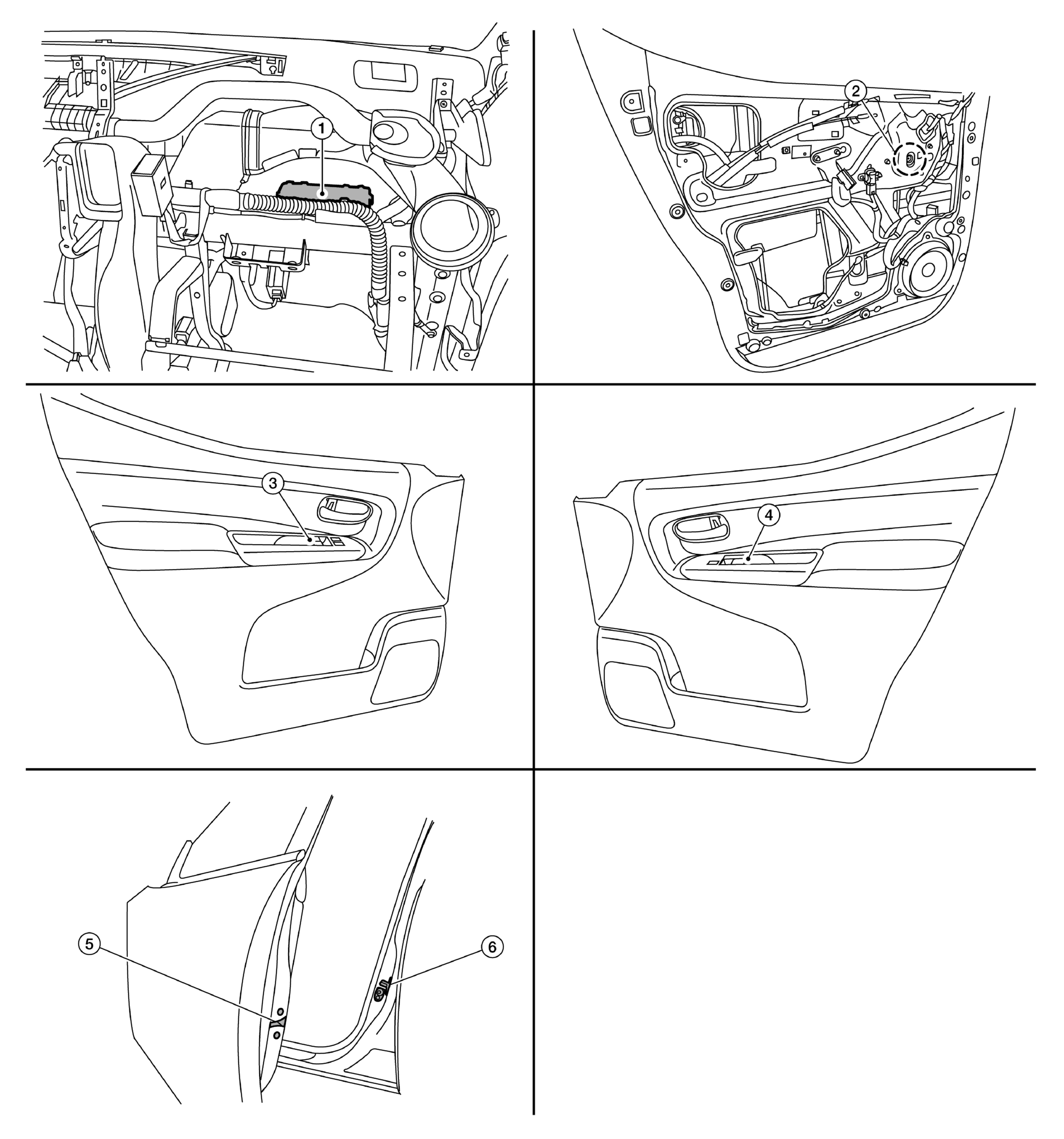

Fig 1: Power Window Control System Component Parts Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	BCM (view with the instrument panel removed)	2.	Front power window motor LH (view with front door finisher removed) (RH similar)	3.	Main power window and door lock/unlock switch
4.	Power window and door lock/unlock switch RH	5.	Front door lock assembly LH (key cylinder switch)	6.	Front door switch LH (RH similar)
