Exploded View With Torque Specifications

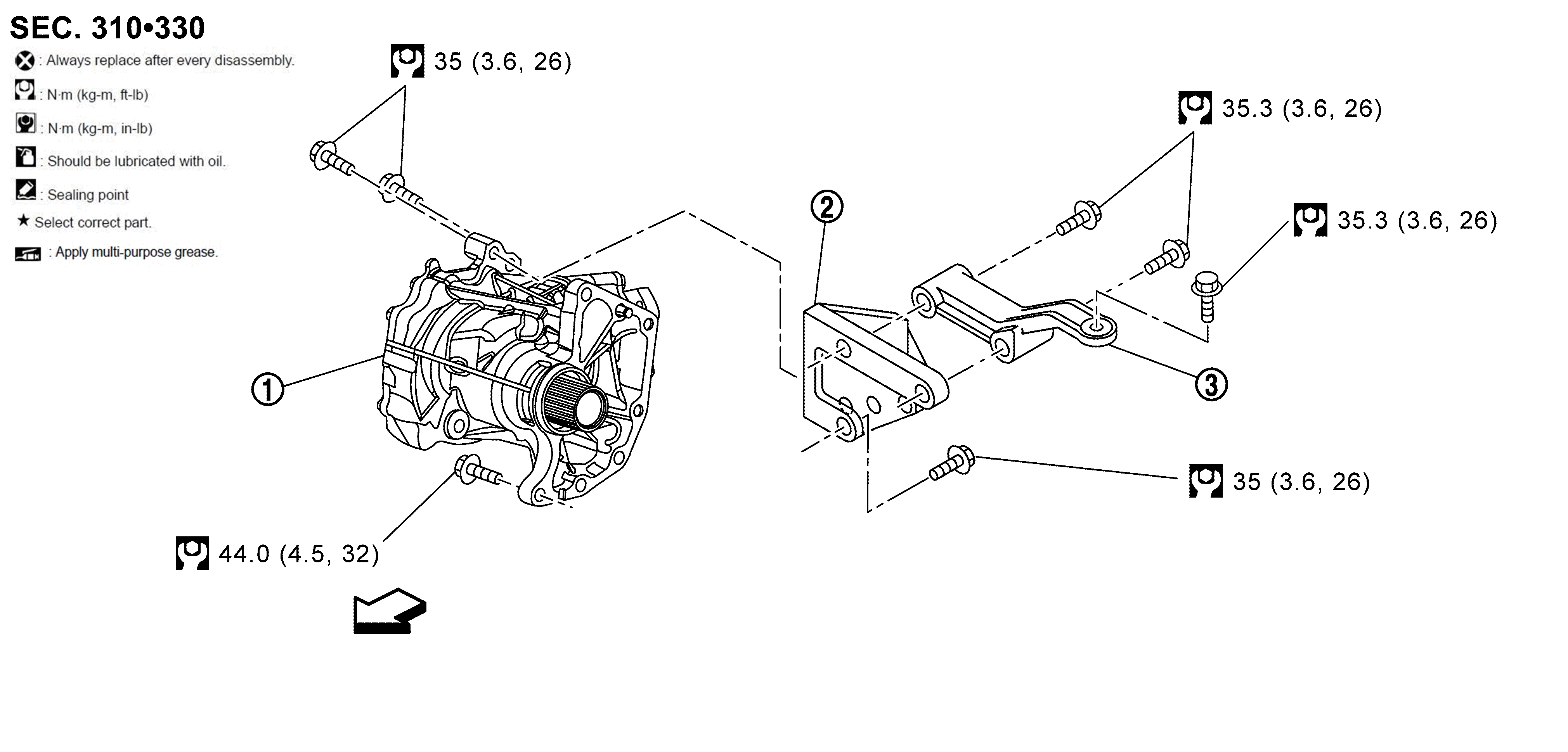

Fig 1: Transfer Assembly Mounting Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

	Transfer Assembly		Transfer Gusset		Rear Gusset
: Vehicle Front
: N.m (kg-m, ft-lb)
