Disassembly And Assembly: Disassembly

Remove transfer cover mounting bolts ( ).

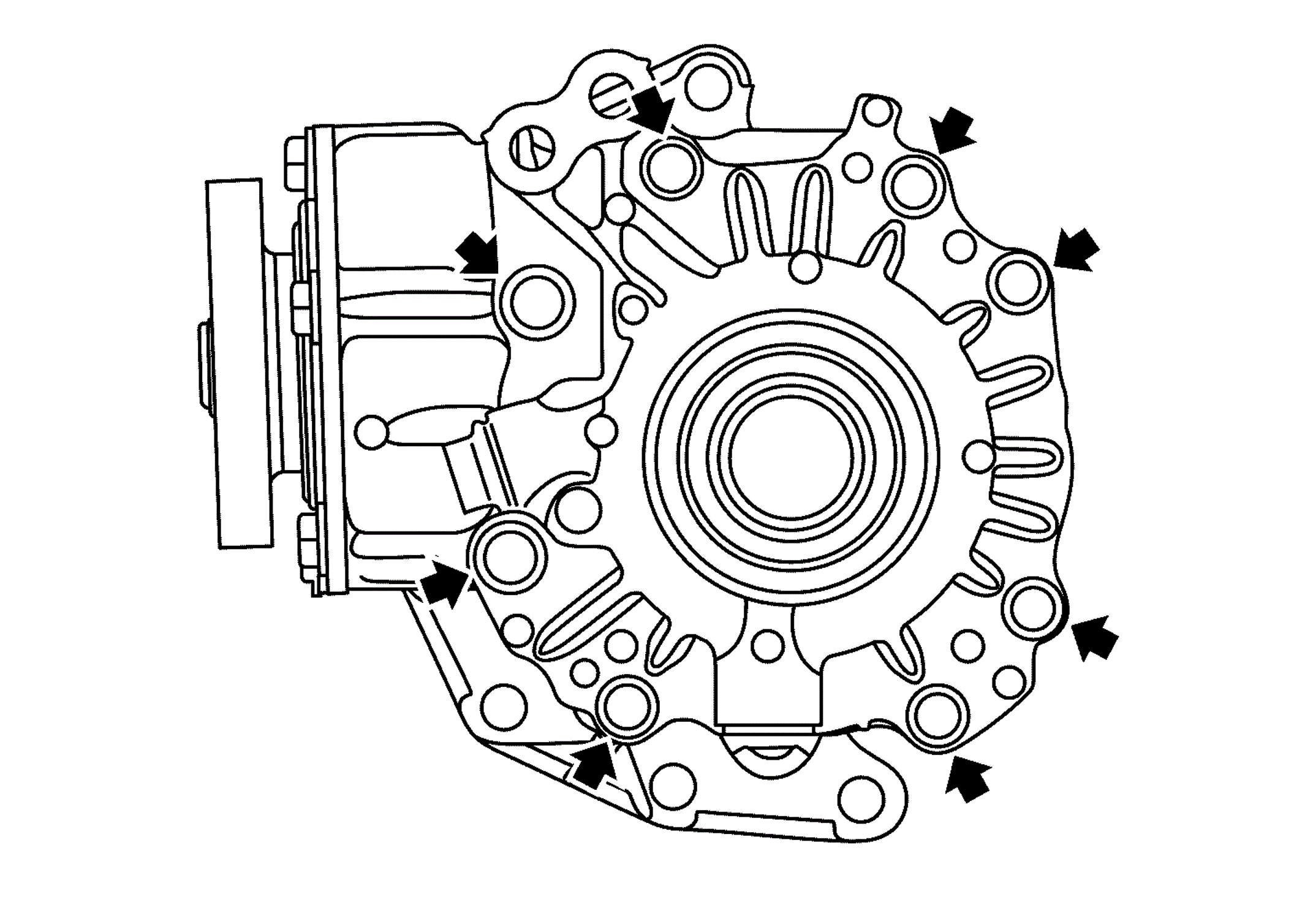

Fig 1: Locating Transfer Cover Mounting Bolts
Courtesy of NISSAN NORTH AMERICA, INC.
Lightly tap transfer cover with a plastic hammer to remove transfer cover.

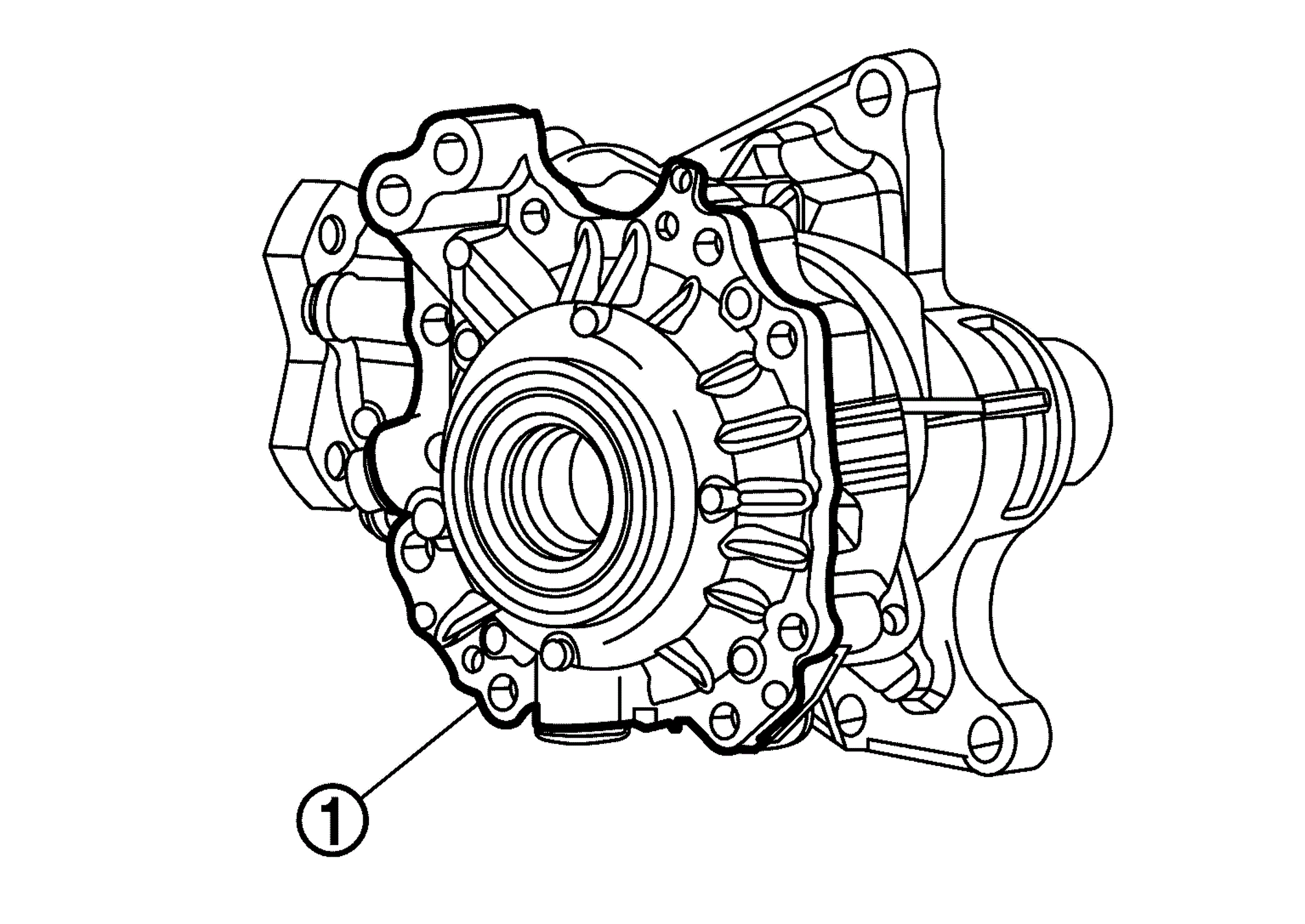

Fig 2: Removing Transfer Cover
Courtesy of NISSAN NORTH AMERICA, INC.
Remove O-ring from transfer cover.
CAUTION:
- Never use a tool.
- Never damage transfer cover.
Lightly tap the metal part of oil seals with punch from back side of transfer cover to remove oil seals.

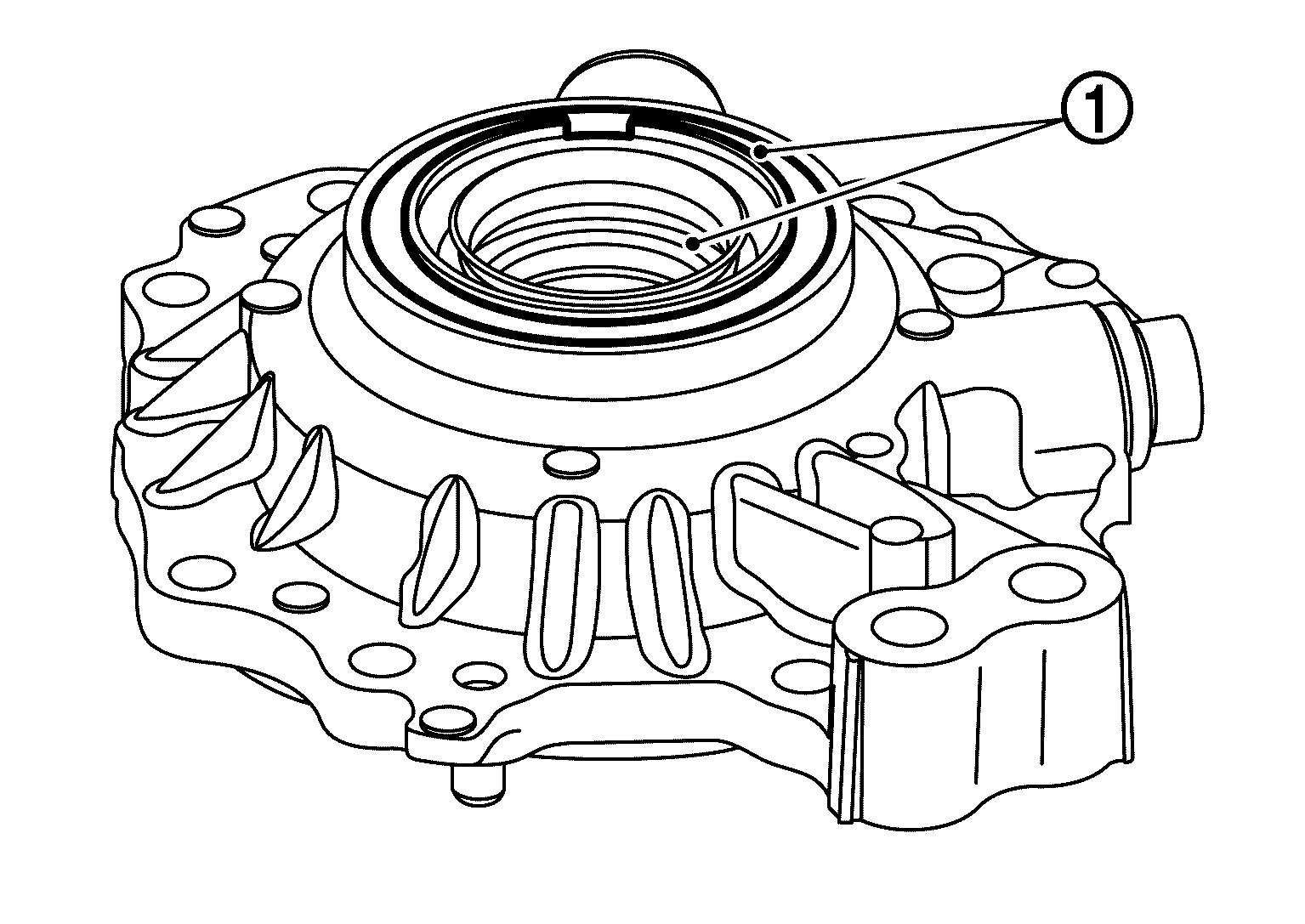

Fig 3: Removing Oil Seals
Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION:
When removing, never damage the transfer cover by scooping it out with a tool.
Remove the ring gear bearing adjusting shim (transfer cover side) and ring gear bearing outer race (transfer cover side) using drift (commercial service tool).

Fig 4: Locating Ring Gear Bearing Adjusting Shim And Outer Race
Courtesy of NISSAN NORTH AMERICA, INC.
Remove drain plug and gasket.
Remove filler plug and gasket.
Perform inspection after disassembly. Refer to INSPECTION .
