Disassembly And Assembly: Assembly
- Select the ring gear bearing adjusting shim (transfer cover side). Refer to ADJUSTMENT .
- Install the selected ring gear bearing adjusting shim (transfer cover side)
and ring gear bearing outer race (transfer cover side)
using drift (commercial service tool).
Courtesy of NISSAN NORTH AMERICA, INC.
CAUTION:- Never reuse ring gear bearing.
- Apply gear oil to the ring gear bearing.
- Install gasket onto drain plug and install them to transfer cover.CAUTION:
Never reuse gasket.
- Install the transfer cover to the transfer case, and apply anti-corrosive oil onto thread and seats on the mounting bolts. Then tighten mounting bolts to the specified torque.

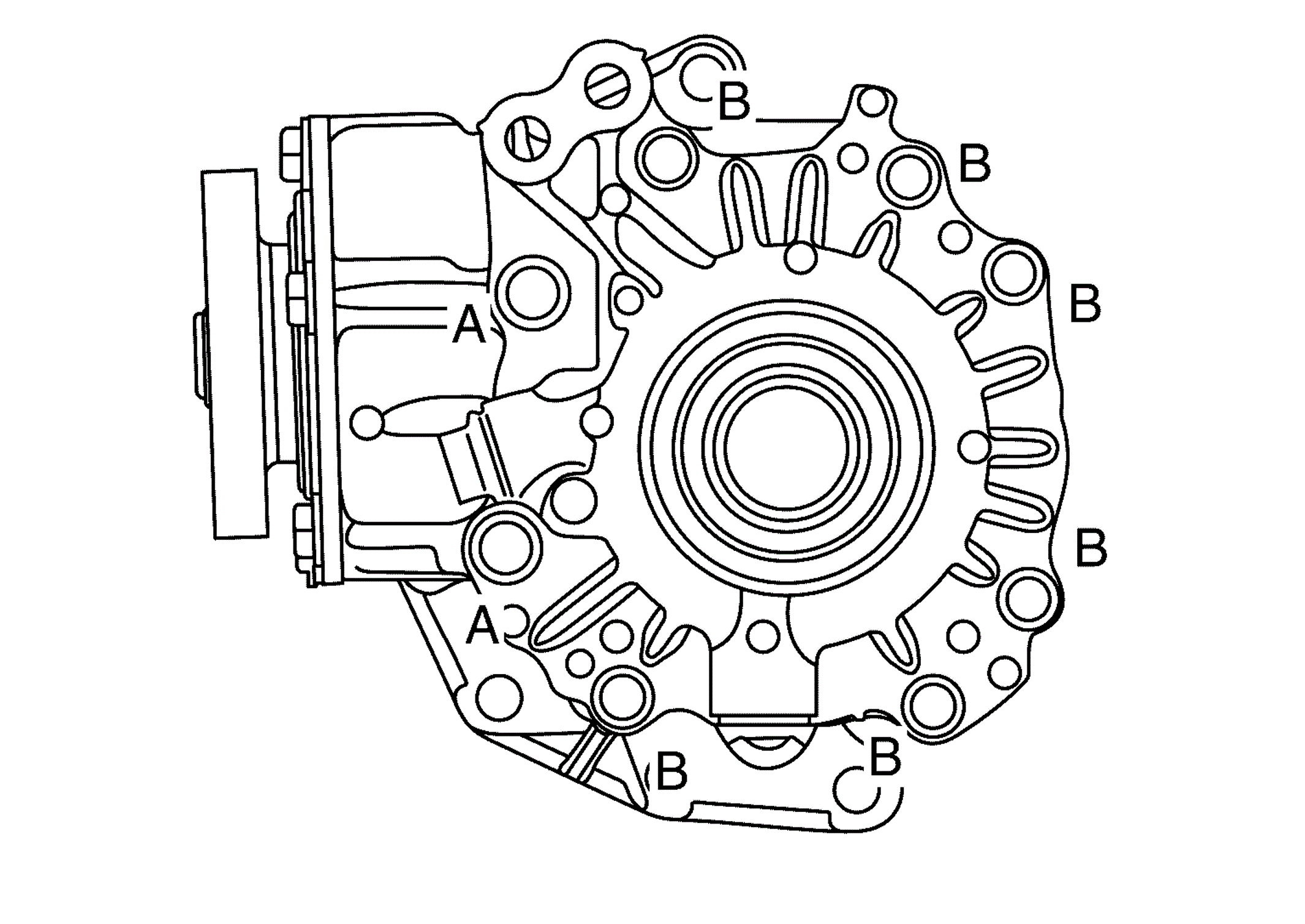

A M10 bolt B M8 bolt NOTE:At this timing, O-ring installing to transfer cover is not necessary. Install O-ring after tooth contact is checked.
- Check backlash, tooth contact, total preload and companion flange runout. Refer to ADJUSTMENT .CAUTION:
Measure the total preload without oil seals of transfer cover and transfer case.
- Remove transfer cover to install O-ring.
- Apply multi-purpose grease lightly and evenly onto an O-ring, and install it to the transfer cover.CAUTION:
- Never reuse O-ring.
- When installing O-ring, never use a tool.
- Never damage O-ring.
- Install the transfer cover to the transfer case, and apply anti-corrosive oil onto thread and seats on the mounting bolts. Then tighten mounting bolts to the specified torque.
A M10 bolt B M8 bolt - Using drift (commercial service tool), drive the transfer cover oil seals.
A 10.3 +0.6/-0 mm (0.406 +0.024/-0 in) B 0 +0.6/-0 mm (0 +0.024/-0 in) CAUTION:- When checking the total preload torque, measure it without the oil seal, then install the oil seal.
- Never reuse the oil seal.
- When installing, never incline oil seal.
- Apply multi-purpose grease onto oil seal lips, and gear oil onto the circumference of the oil seal.
- Install gasket onto filler plug and install them to transfer cover.CAUTION:
- Never reuse gasket.
- Install filler plug after oil is filled.
