Sectional View

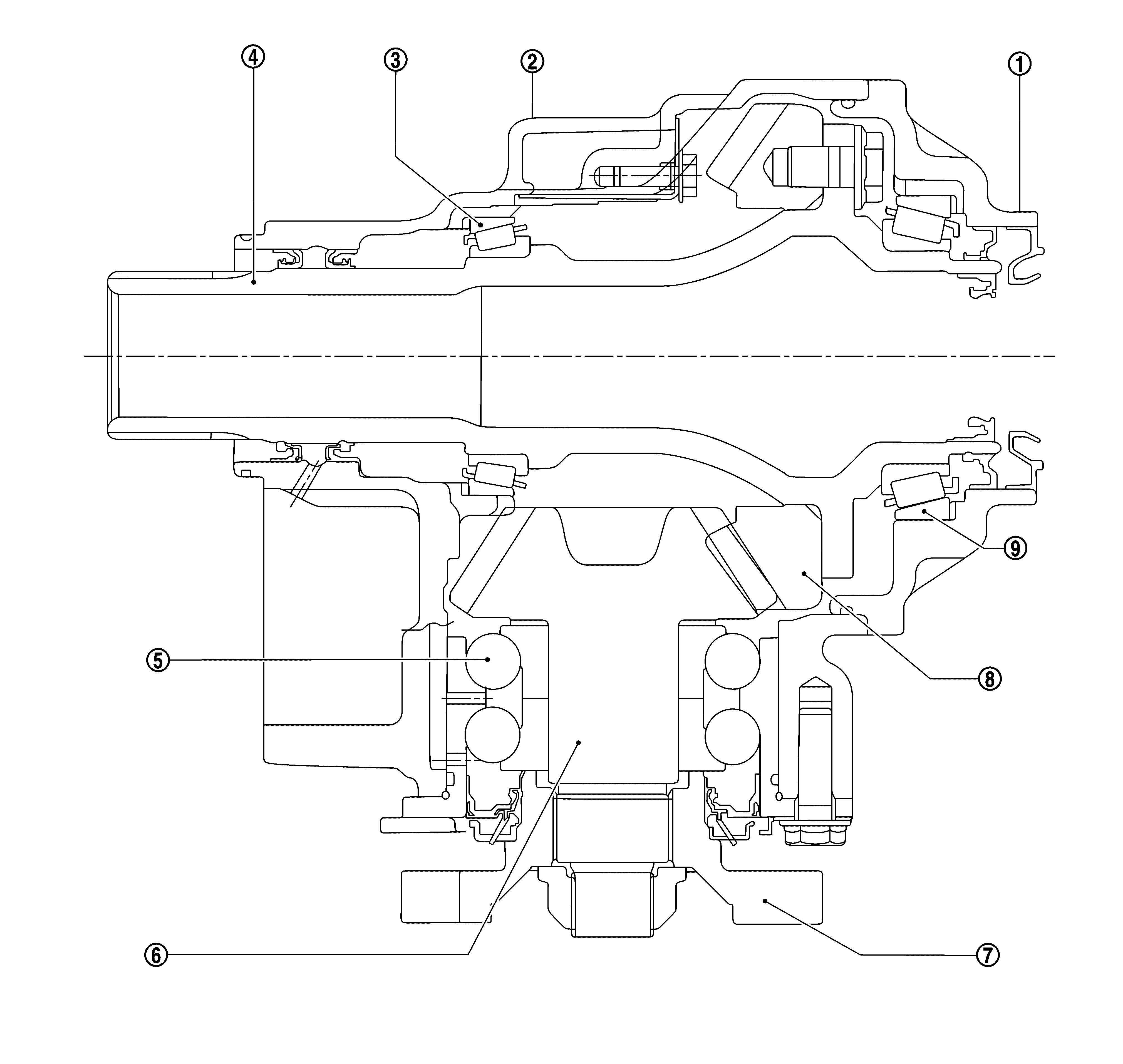

Fig 1: Cross-Sectional View Of Transfer Case
GNSJSDIA3966ZZ-966Courtesy of NISSAN NORTH AMERICA, INC.
WHITE-1 Transfer Cover WHITE-2 Transfer Case WHITE-3 Ring Gear Bearing (Transfer Case Side)
WHITE-4 Ring Gear Shaft WHITE-5 Pinion Bearing WHITE-6 Drive Pinion
WHITE-7 Companion Flange WHITE-8 Ring Gear WHITE-9 Ring Gear Bearing (Transfer Cover Side)
