Work Procedure

UNIT CHARACTERISTICS WRITING

CONSULT
1. Confirm the unit characteristics of electric controlled coupling.

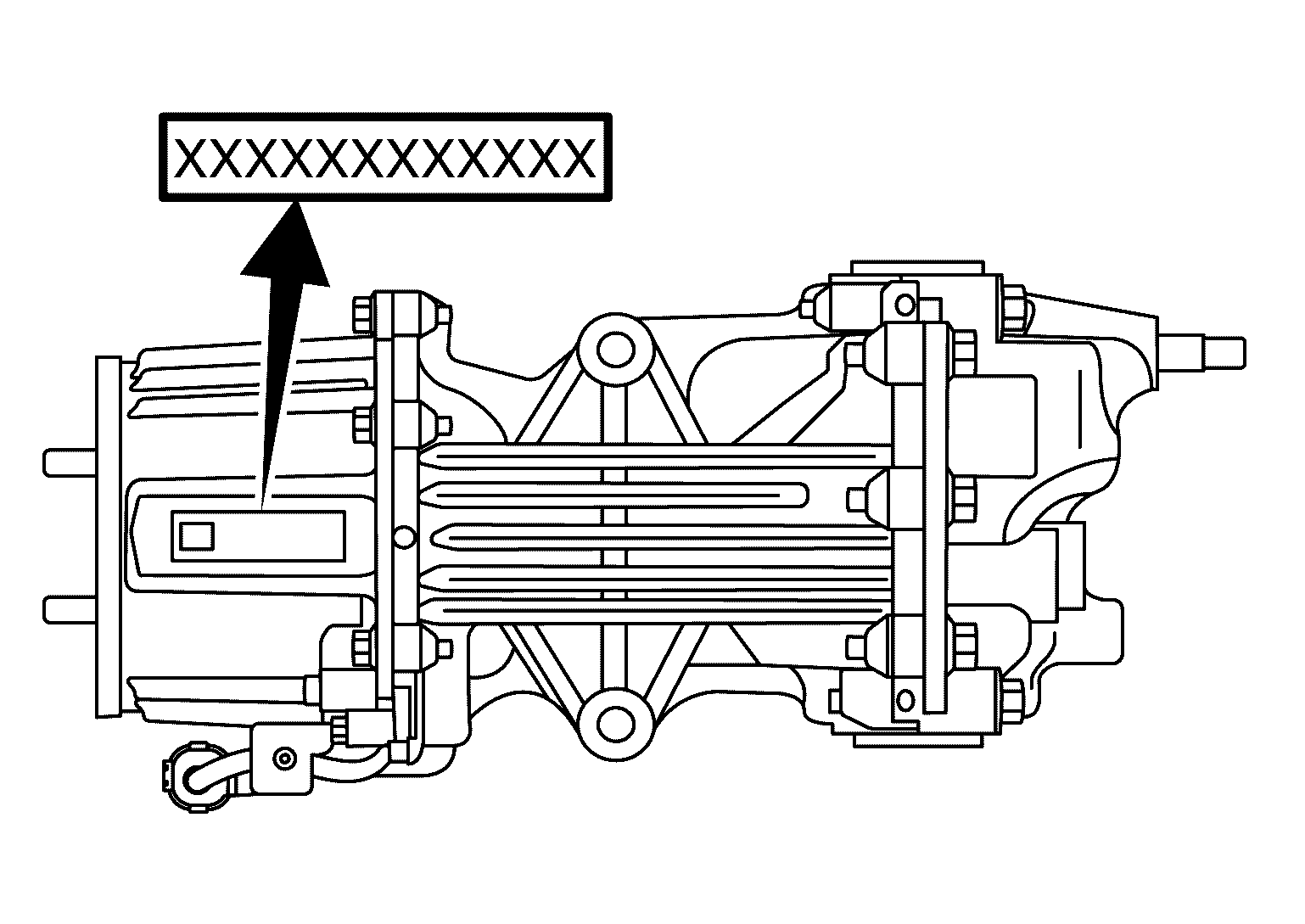

  Fig 1: Locating Unit Characteristics Of Electric Controlled Coupling
  Courtesy of NISSAN NORTH AMERICA, INC.

  NOTE:
  Unit characteristics is 12-digit alphanumeric.
2. Turn the ignition switch OFF to ON.
3. Select "UNIT CHARACTERISTICS WRITE" in "Work support" for "ALL MODE AWD/4WD".
4. Input unit characteristics.
5. Select "Start".
6. Check that "UNIT CHARACTERISTICS WRITE COMPLETED" is displayed.
Work End.
