System Diagram

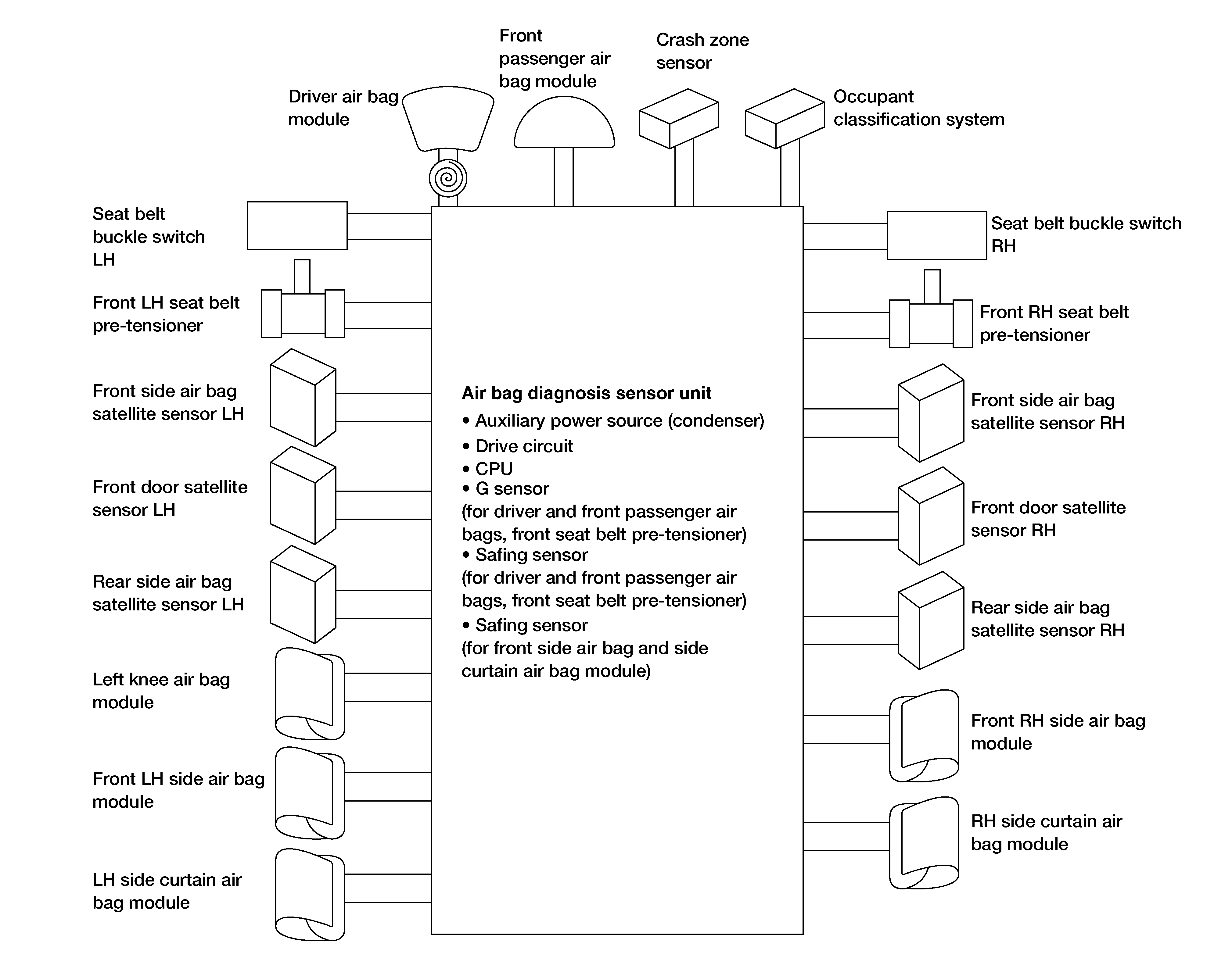

Fig 1: SRS Air Bag System Diagram

GNSALHIA0427GB-427

Courtesy of NISSAN NORTH AMERICA, INC.
