Exploded View With Torque Specifications
Exploded View With Torque Specifications

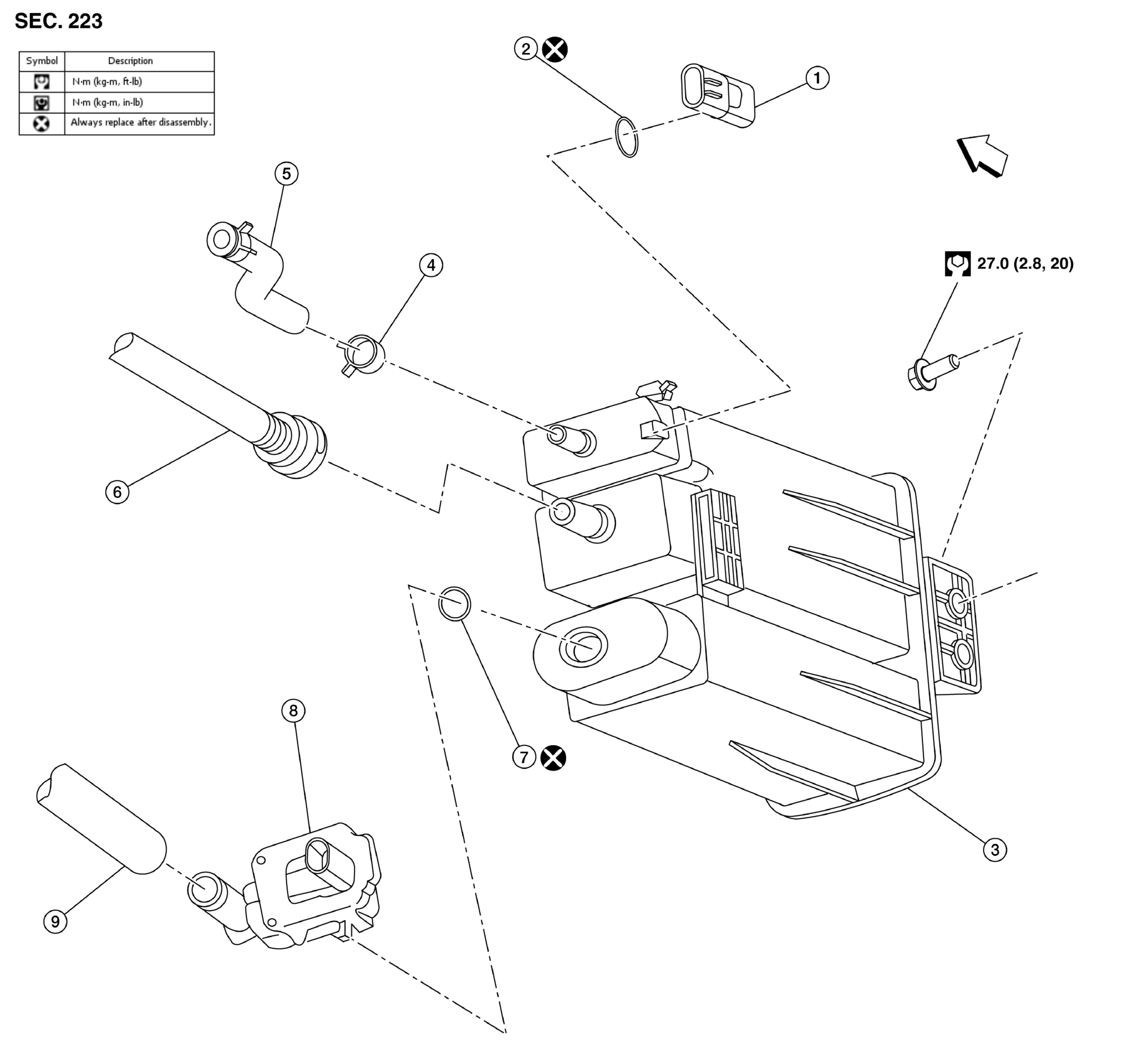

Fig 1: EVAP Canister Components With Torque Specifications
Courtesy of NISSAN NORTH AMERICA, INC.
1.
EVAP Canister Control Pressure Sensor
2.
O-Ring
3.
EVAP Canister
4.
Hose Clamp
5.
EVAP Canister Purge Hose
6.
EVAP Canister Vent Line
7.
O-Ring
8.
EVAP Canister Vent Control Valve
9.
EVAP Canister Vent Control Valve Hose
Front
