Exploded View With Torque Specifications

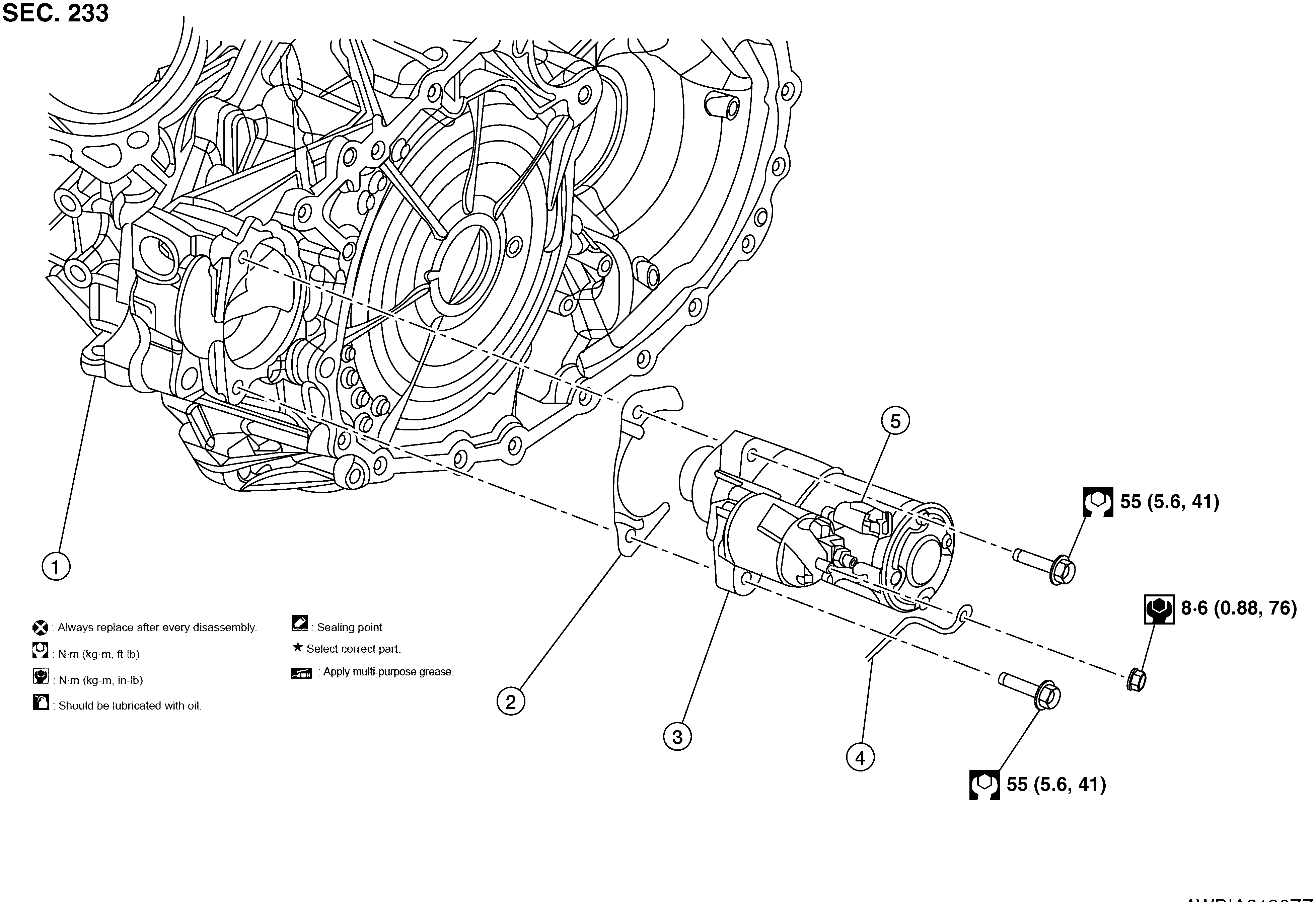

Fig 1: Starter Motor With Torque Specifications
GNSAWBIA2136ZZ-136Courtesy of NISSAN NORTH AMERICA, INC.
1. Cylinder Block 2. Shim 3. Starter
4. "B" Terminal Harness 5. "S" Connector
