Removal And Installation: Installation

Installation is in the reverse order of removal.

• When installing the transfer to the transaxle, install the bolts following the standard below.

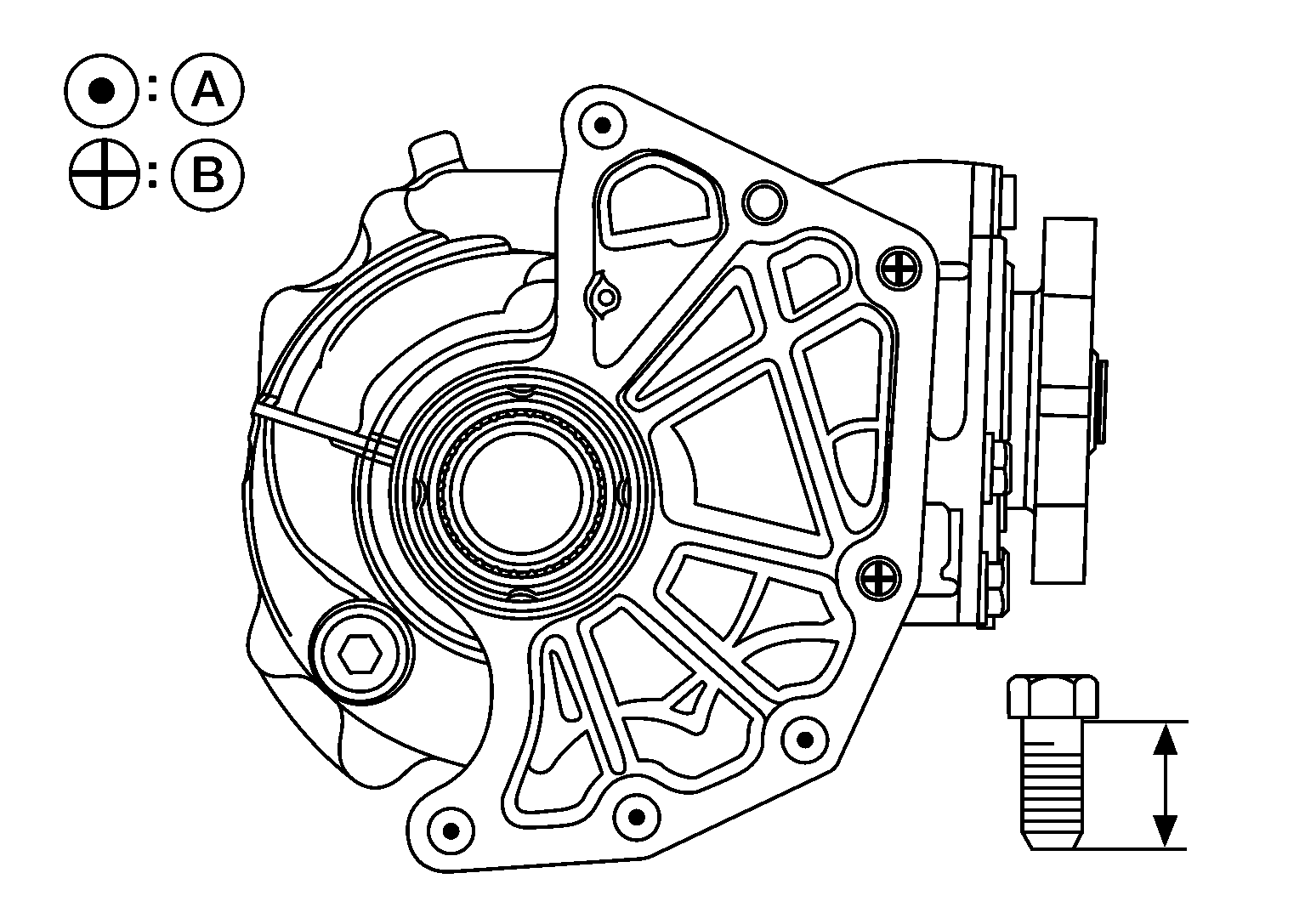

  Fig 1: Transfer To Transaxle Bolt Dimension Identification

  Courtesy of NISSAN NORTH AMERICA, INC.

  Bolt No.	(A)	(B)
  Quantity	4	2
  Bolt length " " mm (in)	44 (1.73)	42 (1.65)

  CAUTION:

  • When installing transfer to transaxle, be careful not to damage oil seal of transaxle.

  • Do not reuse differential side oil seal.
• Check transfer oil level and check for transfer oil leaks after installation. Refer to REFILLING .
