Exploded View With Torque Specifications

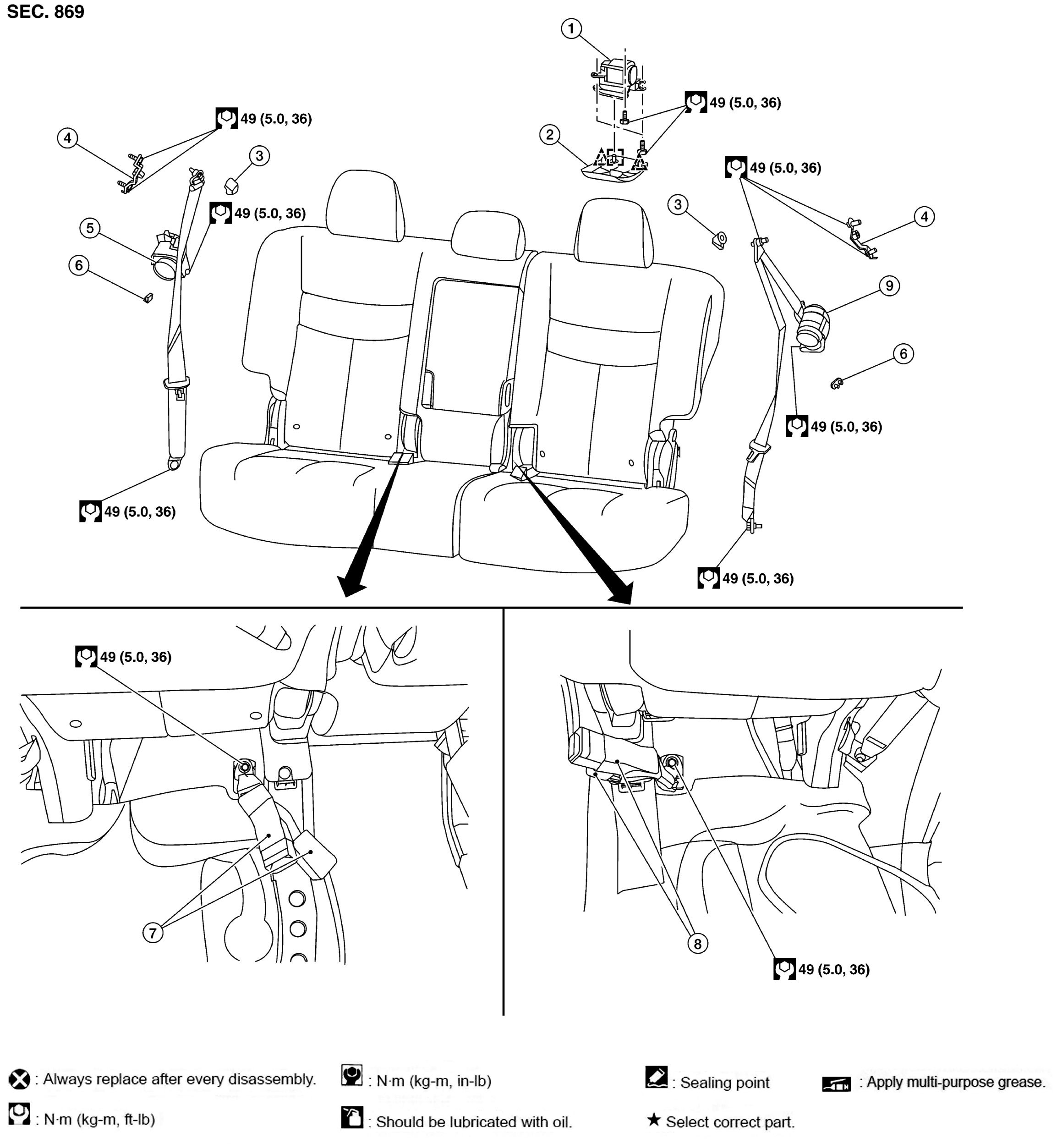

Fig 1: Second Row Seat Belt Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat Belt Center Retractor	2.	Seat Belt Center Retractor Finisher	3.	Seat Belt D-Ring Bolt Cover (LH/RH)
4.	Seat Belt D-Ring Bracket (LH/RH)	5.	Seat Belt Retractor (RH)	6.	Seat Belt Hook (LH/RH)
7.	Seat Belt Buckle (RH/Center)	8.	Seat Belt Buckle (LH/Connector)	9.	Seat Belt Retractor (LH)
	Clip		Metal Clip
