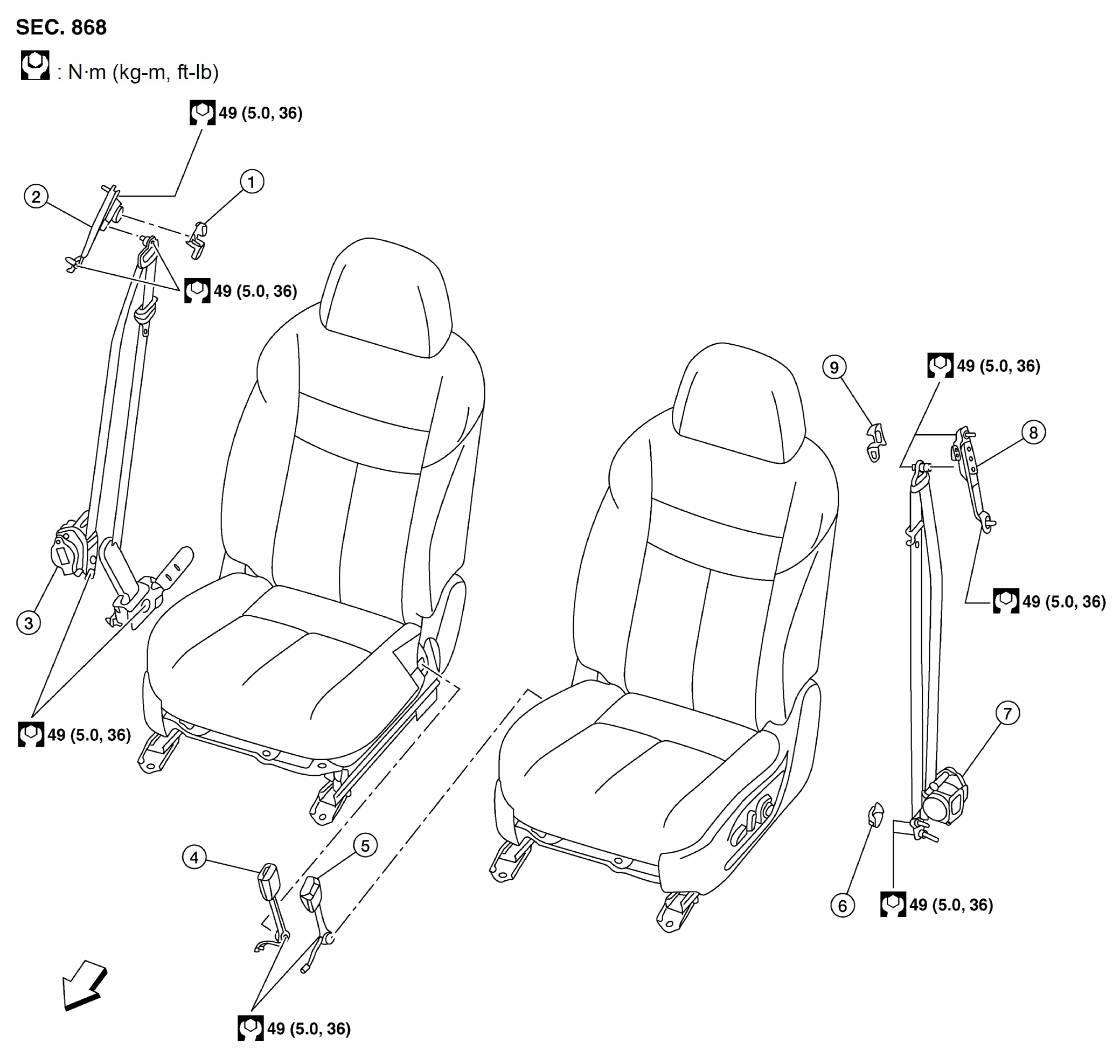

Exploded View With Torque Specifications

Fig 1: Front Seat Belt With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat Belt Height Adjuster Bolt Cover (RH)	2.	Seat Belt Height Adjuster (RH)	3.	Seat Belt Retractor (RH)
4.	Seat Belt Buckle (RH)	5.	Seat Belt Buckle (LH)	6.	Seat Belt Anchor Bolt Cover (LH)
7.	Seat Belt Retractor (LH)	8.	Seat Belt Height Adjuster (LH)	9.	Seat Belt Height Adjuster Bolt Cover (LH)
	Front
