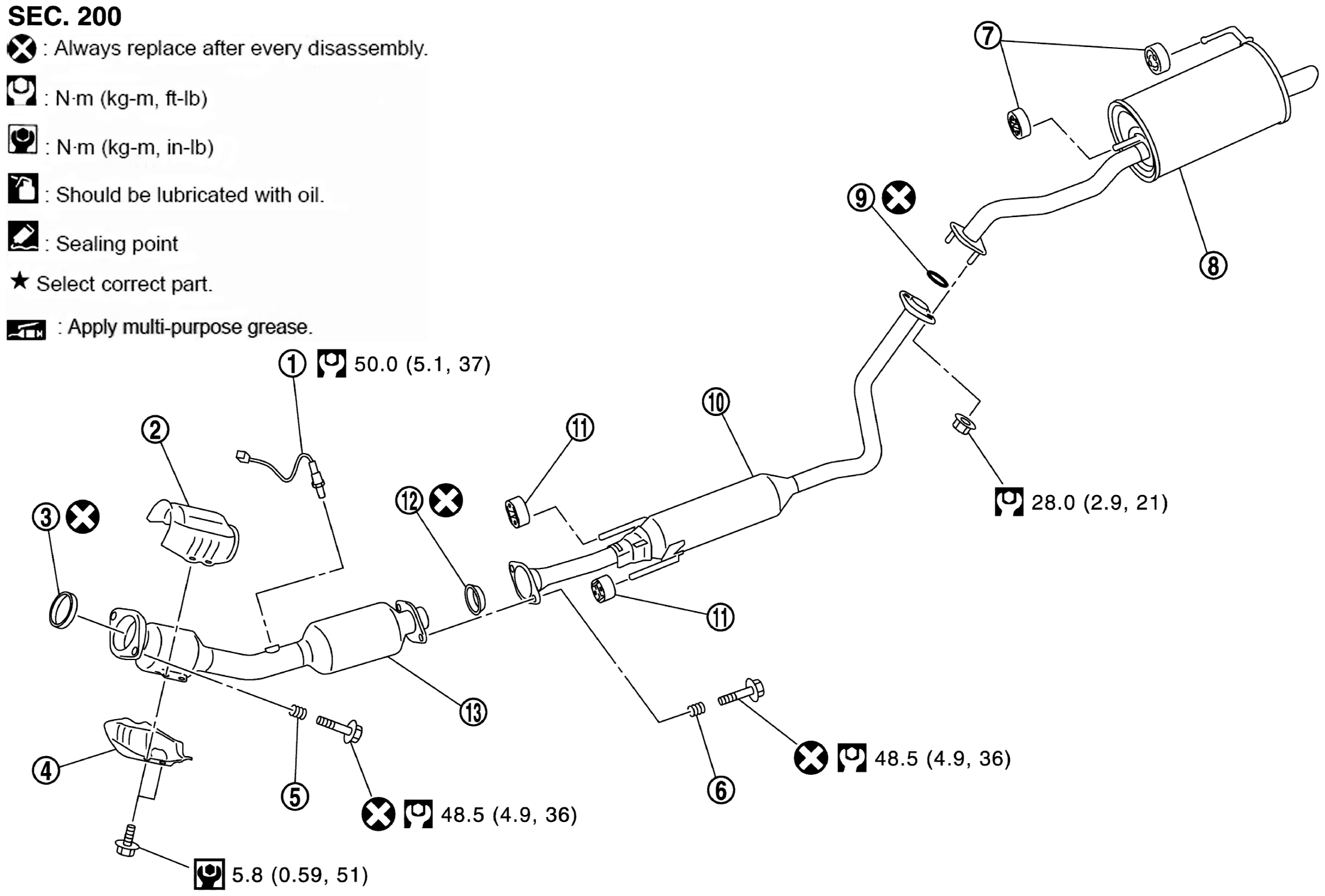

Exploded View With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Heated oxygen sensor 2	2.	Catalyst cover (upper)	3.	Seal bearing
4.	Catalyst cover (lower)	5.	Spring	6.	Spring
7.	Mounting rubber	8.	Main muffler	9.	Ring gasket
10.	Center muffler	11.	Mounting rubber	12.	Seal bearing
13.	Exhaust front tube
