Exploded View With Torque Specifications

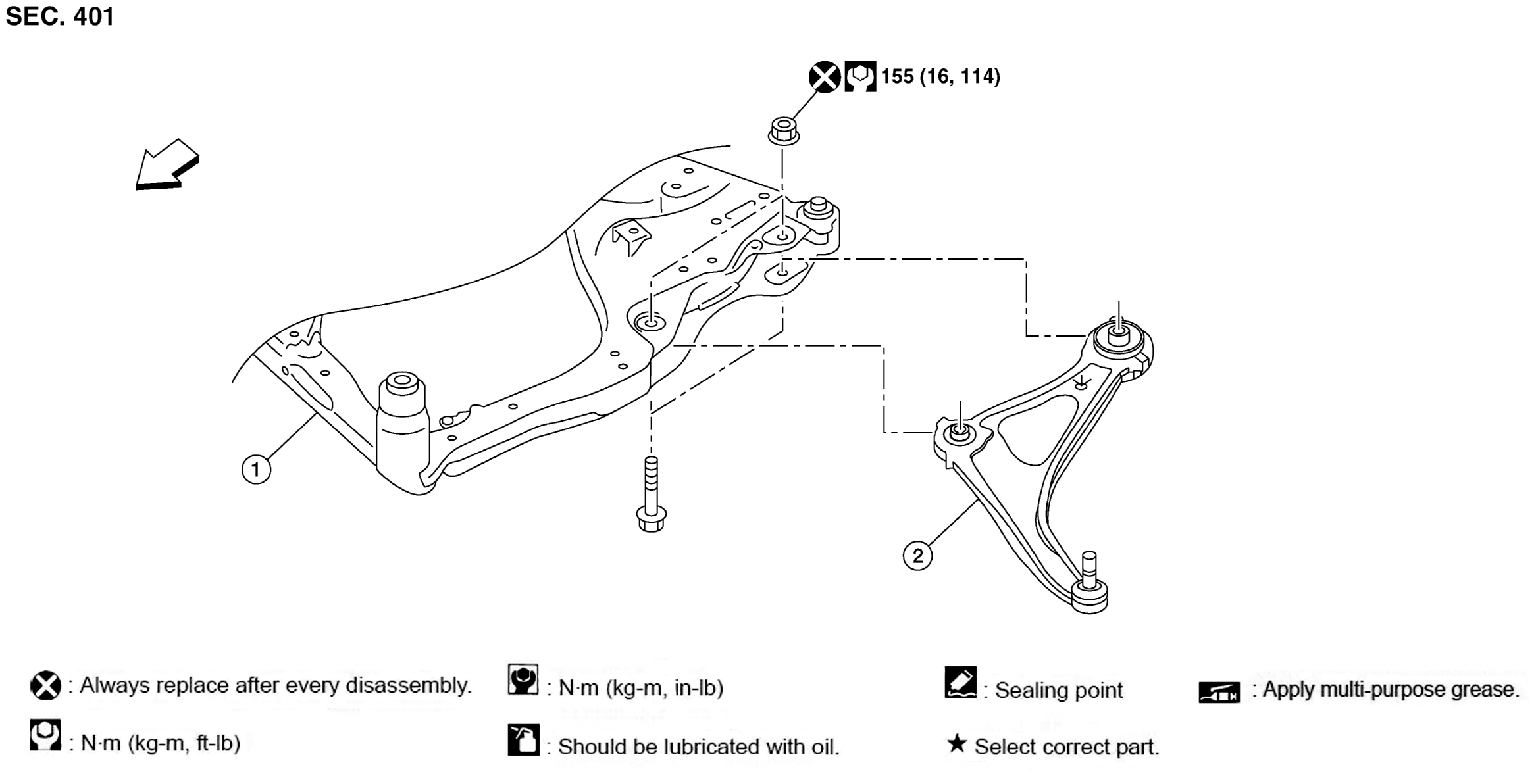

Fig 1: Exploded View Of Transverse Link With Torque Specifications

GNSAWEIA0414ZZ-414

Courtesy of NISSAN NORTH AMERICA, INC.

1.

Transverse link

2.

Front suspension member

Front
