Exploded View With Torque Specifications

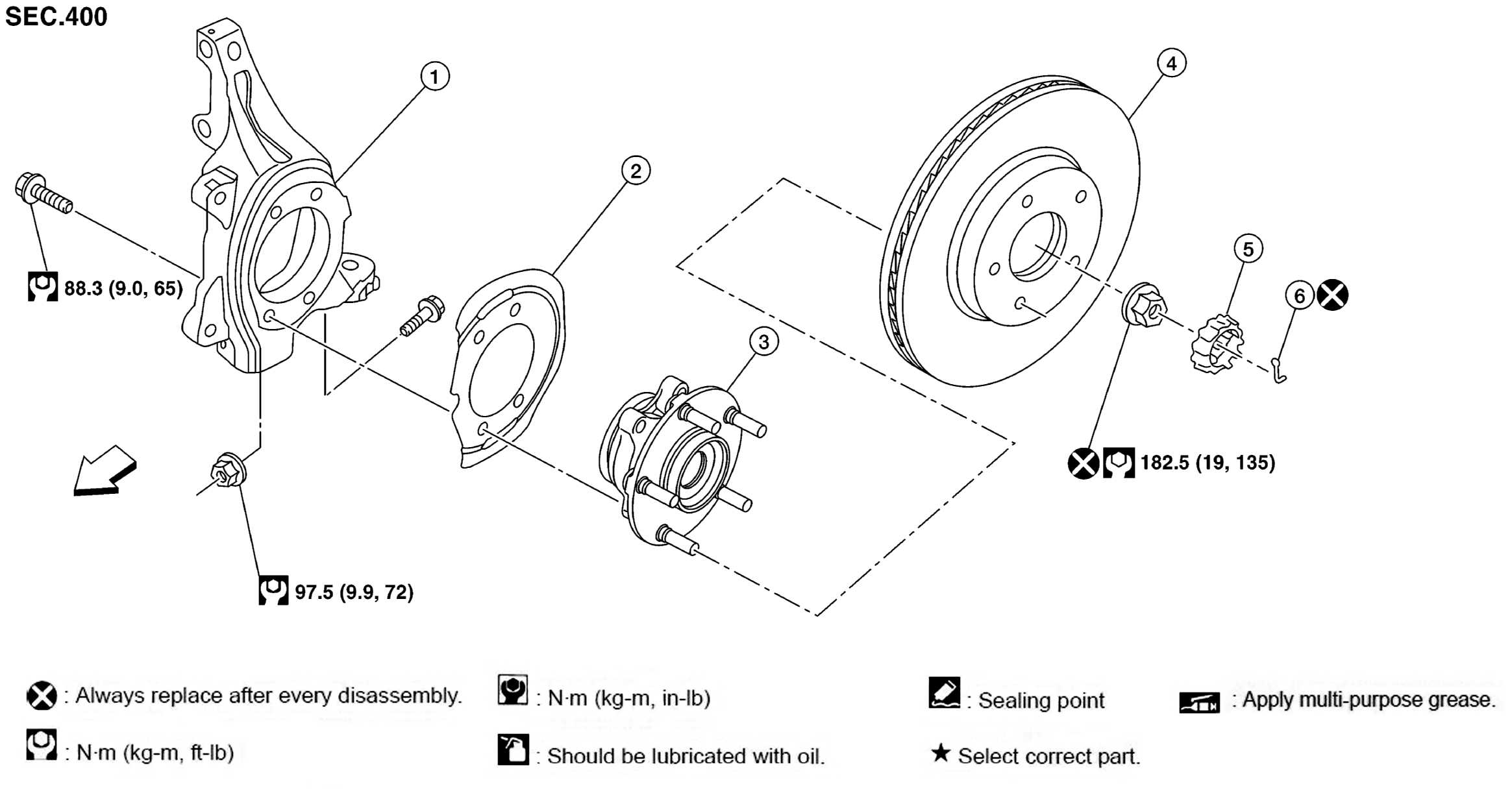

Fig 1: Exploded View Of Steering Knuckle With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Steering knuckle	2.	Splash guard	3.	Wheel hub and bearing
4.	Disc brake rotor	5.	Nut retainer	6.	Cotter pin
	Front
