Exploded View With Torque Specifications

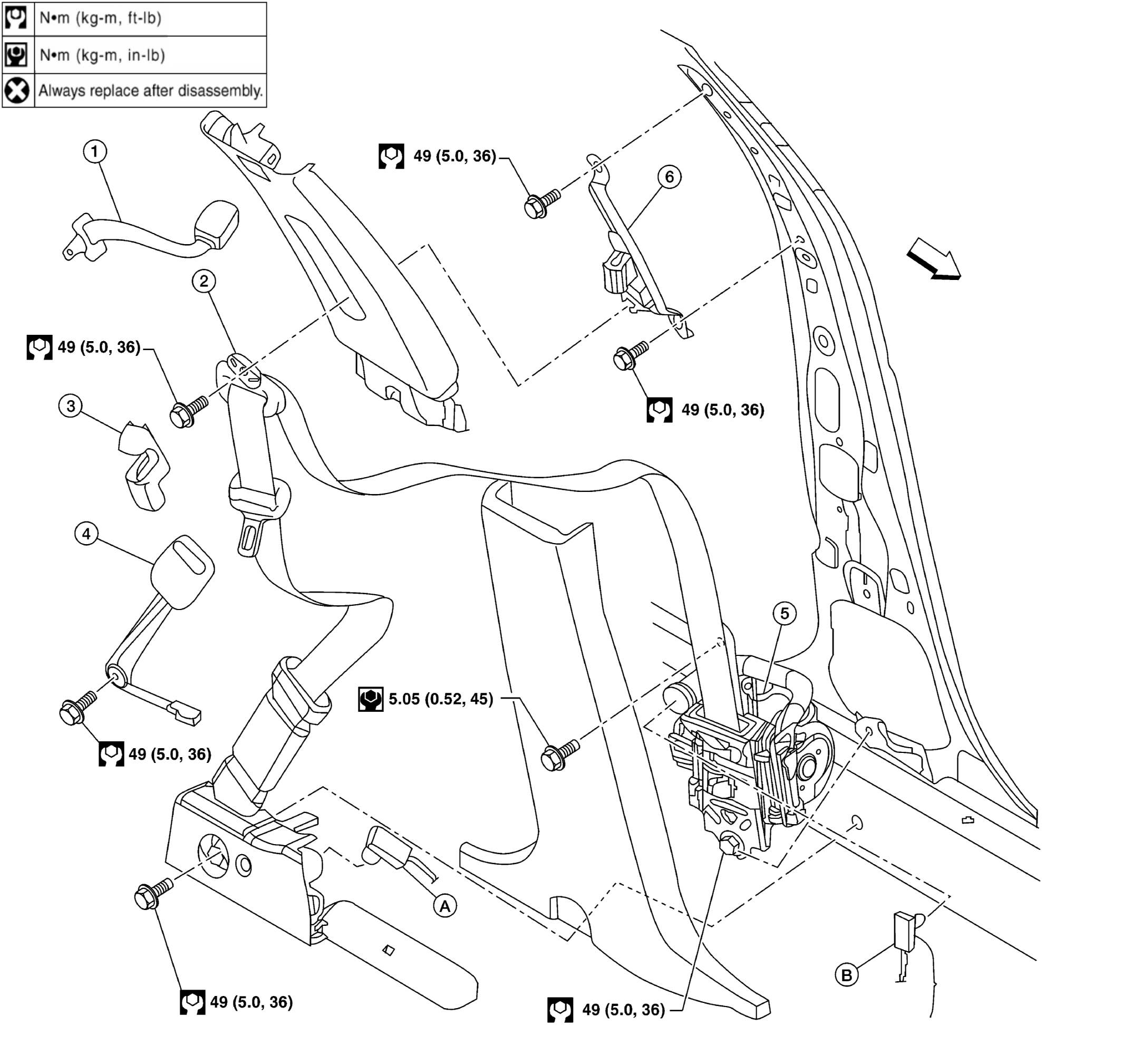

Fig 1: Exploded View Of Front Seat Belt With Torque Specifications
GNSAWHIA0813ZZ-813Courtesy of NISSAN NORTH AMERICA, INC.
1. Seat belt extender 2. D-ring anchor 3. Seat belt height adjuster cover
4. Seat belt buckle 5. Seat belt retractor 6. Seat belt height adjuster
A. Lap belt pre-tensioner harness connector B. Shoulder belt pre-tensioner harness connector ARROW Front
