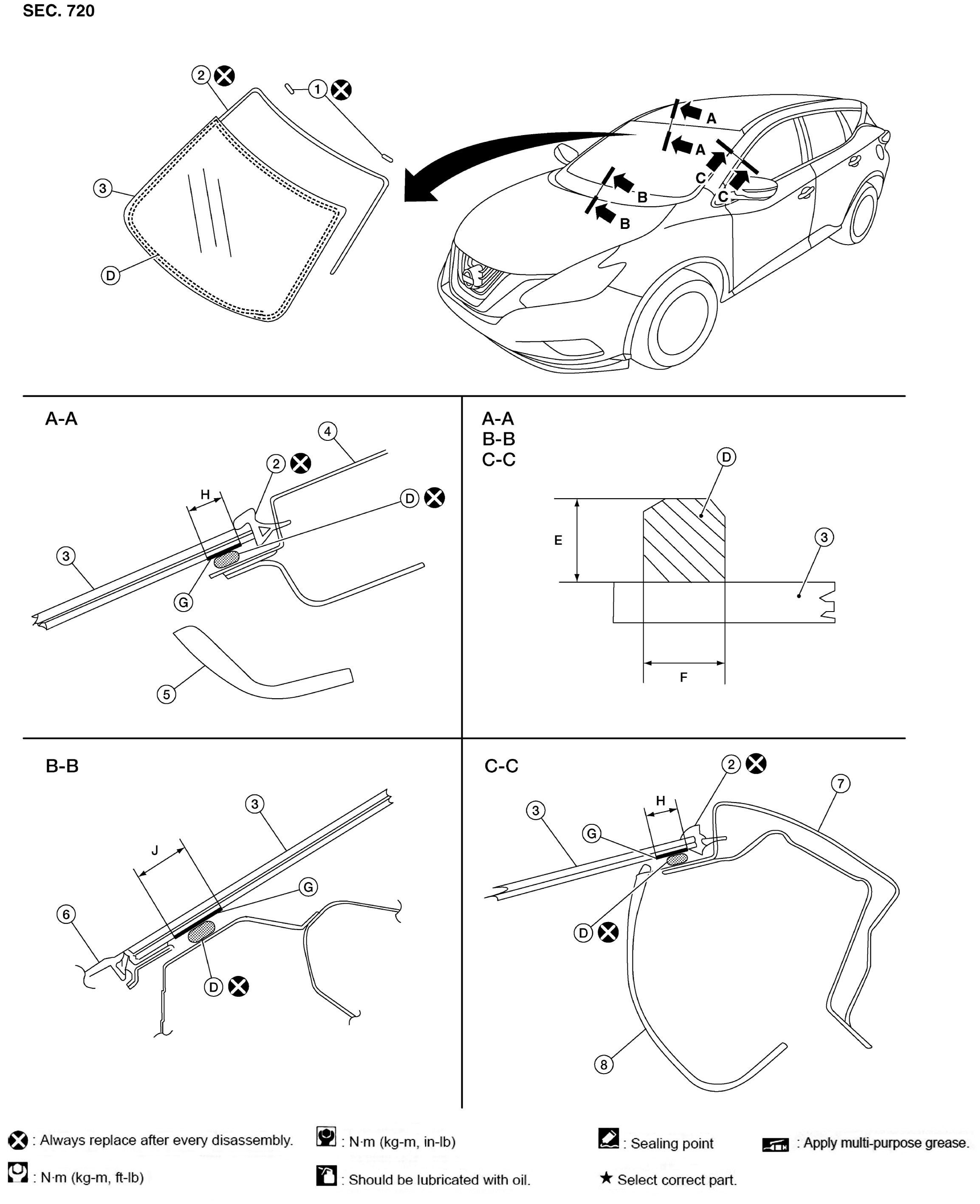

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Spacer |
2. |
Windshield Glass Molding |
3. |
Windshield Glass |
| 4. |
Roof |
5. |
Headlining |
6. |
Cowl Top Cover |
| 7. |
Body Side Outer |
8. |
Front Pillar Finisher |
D. |
Adhesive |
| E. |
12 mm (0.47 in) |
F. |
7.0 mm (0.28 in) |
G. |
Primer |
| H. |
16 mm (0.63 in) |
J. |
25 mm (0.98 in) |
|
|
