Exploded View With Torque Specifications

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

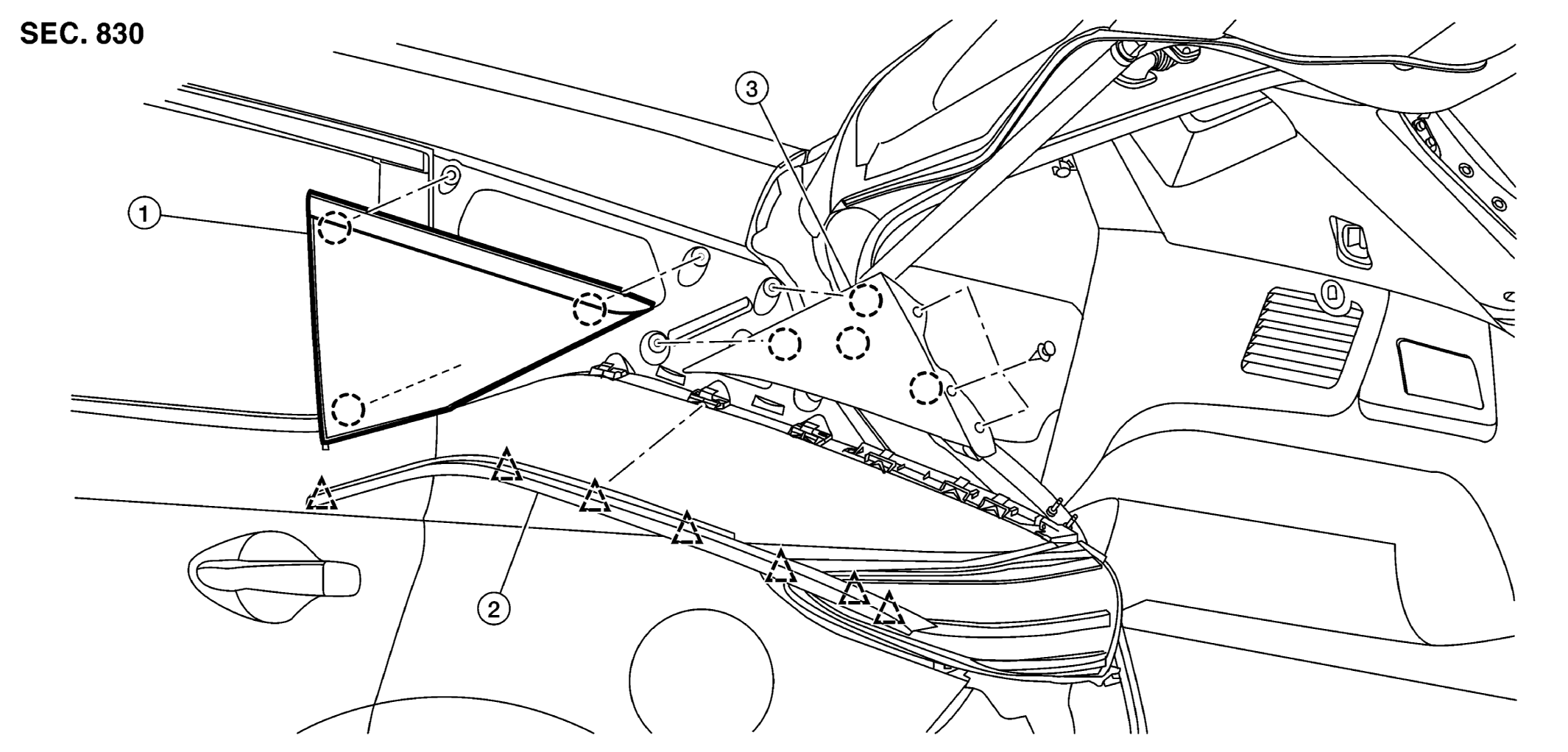

Fig 1: Exploded View Of Quarter Window Glass

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Quarter Window Glass	2.	Quarter Window Molding	3.	Quarter Window Finisher
Δ	Clip	◦	Pawl
