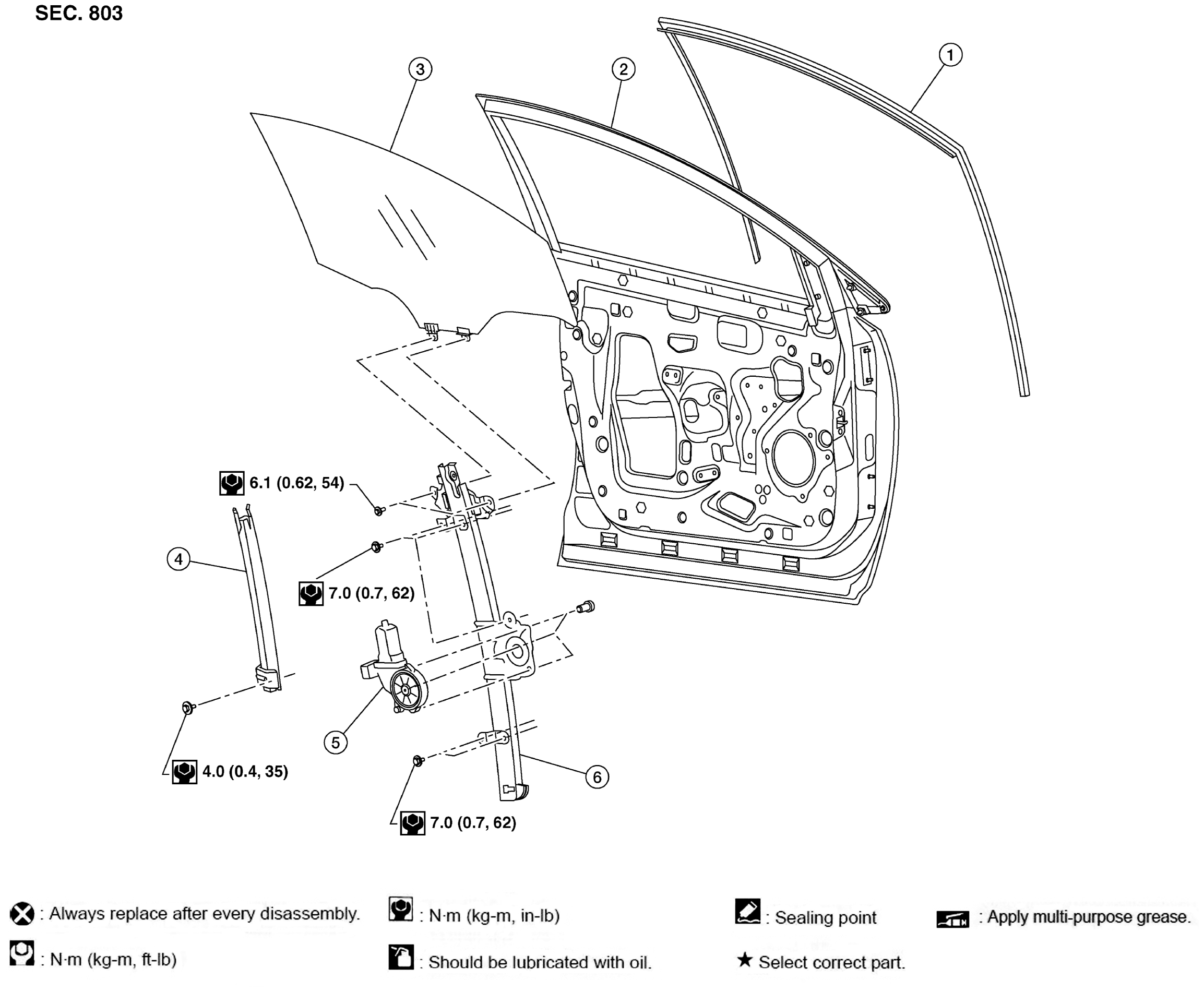

Exploded View With Torque Specifications
WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
| 1. |
Front Door Glass Rubber Run |
2. |
Front Door |
3. |
Front Door Glass |
| 4. |
Front Door Glass Rear Run |
5. |
Front Door Power Window Motor |
6. |
Front Door Glass Regulator |
