Removal And Installation: Removal

WARNING: This page is about a different car, the 2015 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door kicking plate. Refer to REMOVAL AND INSTALLATION .
  2. Disconnect harness connector from the AWD control unit (1).
  3. Remove AWD control unit bolts (A).
  4. Remove AWD control unit (1).

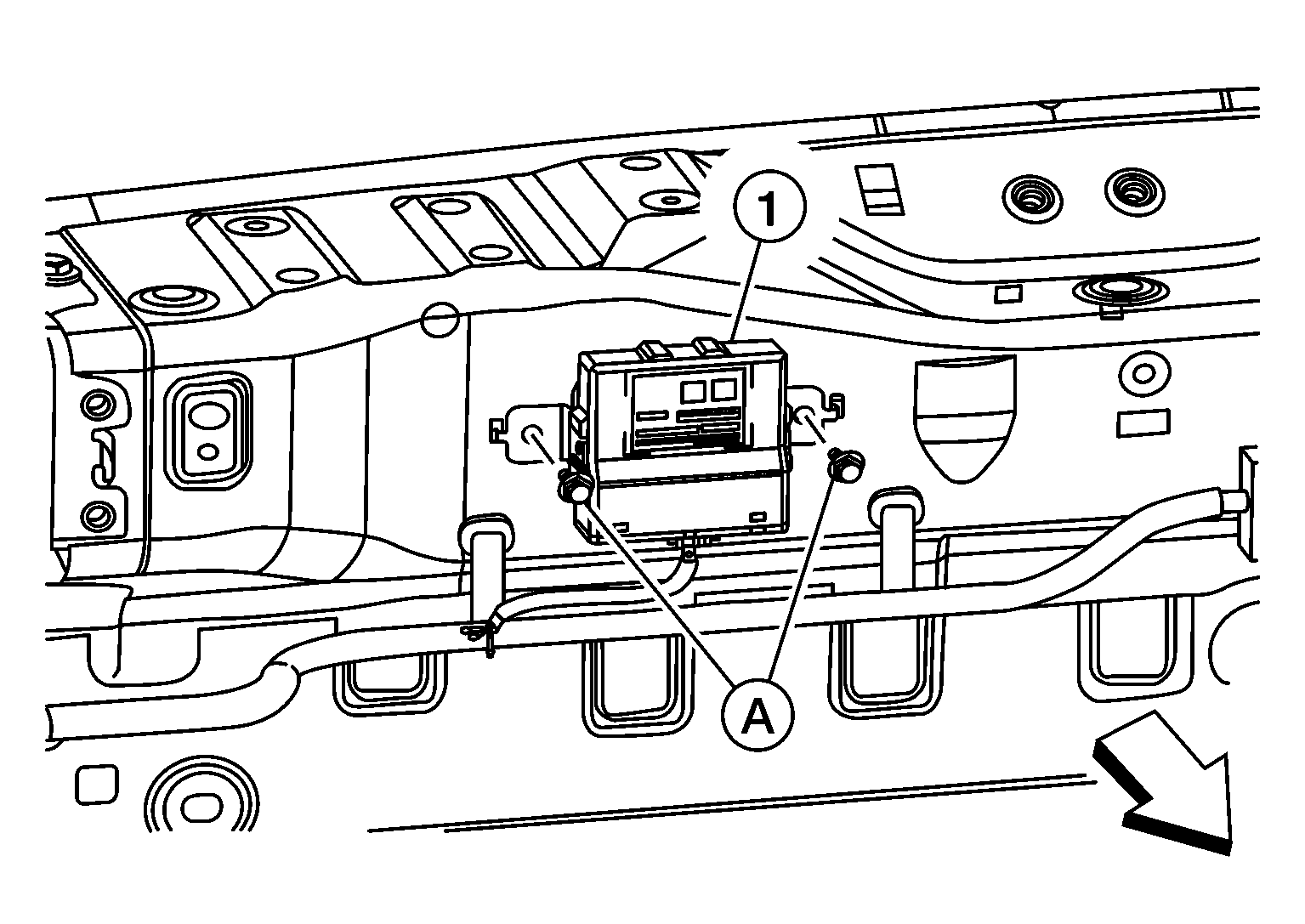

    Fig 1: Locating AWD Control Unit Bolts
    GNSAWDIA1232ZZ-232Courtesy of NISSAN NORTH AMERICA, INC.
    Arrow Front
